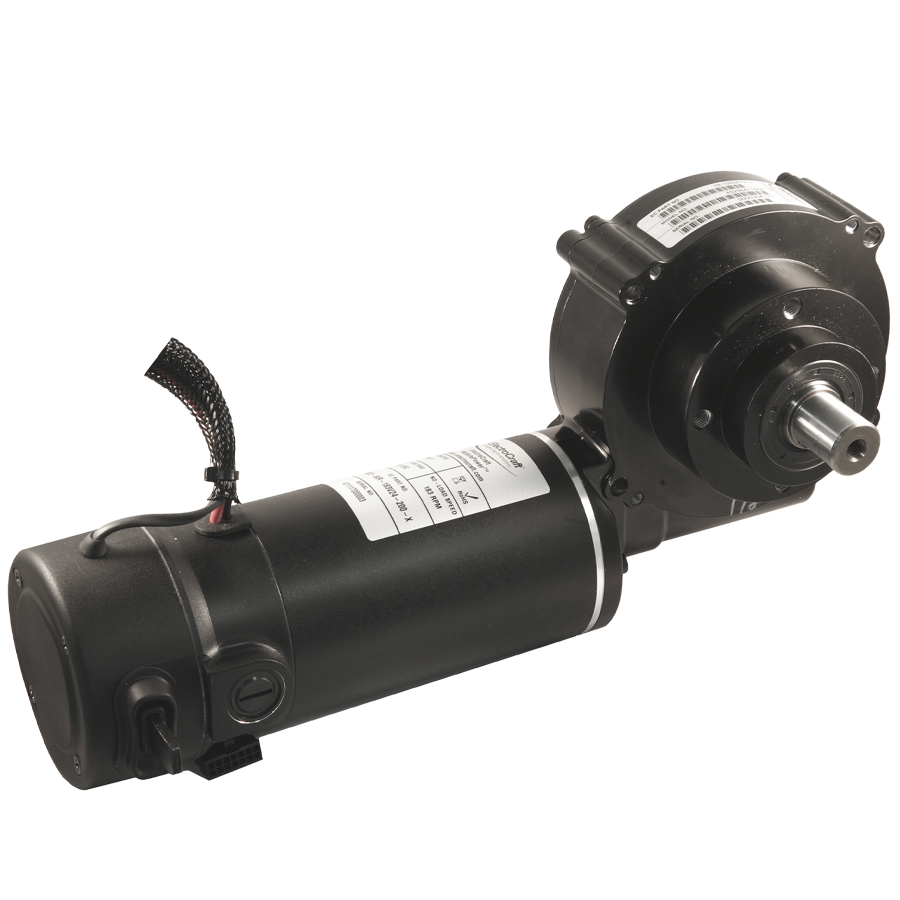

MPS32 Right-Angle Gearmotor
MobilePower™ Series
Complete Motion Solution
For a complete motion solution, the MPS32 is compatible with ElectroCraft's Universal and PRO Series drives.
ElectroCraft's MPS32 integrates a 2-pole PMDC brush motor with a single-stage right-angle worm gearbox, designed for medical or general mobility applications. The MPS32 is a unique design that delivers high torque and increased efficiency, while providing smooth, reliable and quiet operation.
ElectroCraft MobilePower™ gearmotors feature an integrated design that provides increased performance and reliability at an affordable price compared to traditional motor/gearbox combinations. As with all ElectroCraft products, MobilePower™ gearmotors are customizable to meet specific application requirements.
Features
- Smooth, efficient motion
- Durable and highly reliable integrated worm-gear design
- Suitable for uneven terrain and curb-climbing
- High starting torque:
- Peak starting torque up to 113.7Nm
- 15-minute continuous torque up to 39.2Nm
- Continuous torque up to 20.4Nm
- Configurable or completely customizable designs
- Motor, gearbox, brake, encoder, cabling
- Typical applications:
- Medical Mobility Chairs
- Stair Lifts
- Industrial traction applications
- Industrial lifts
- Automated Guided Vehicles
- Autonomous Mobile Robots
Additional Product Details

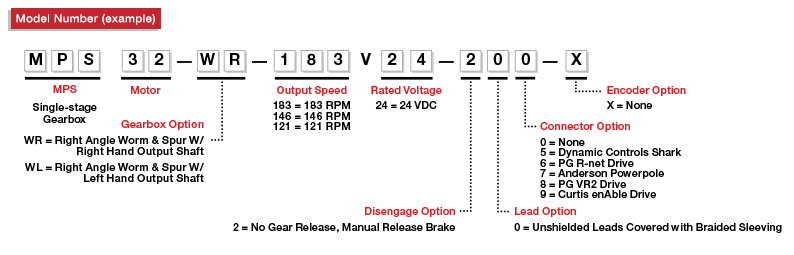

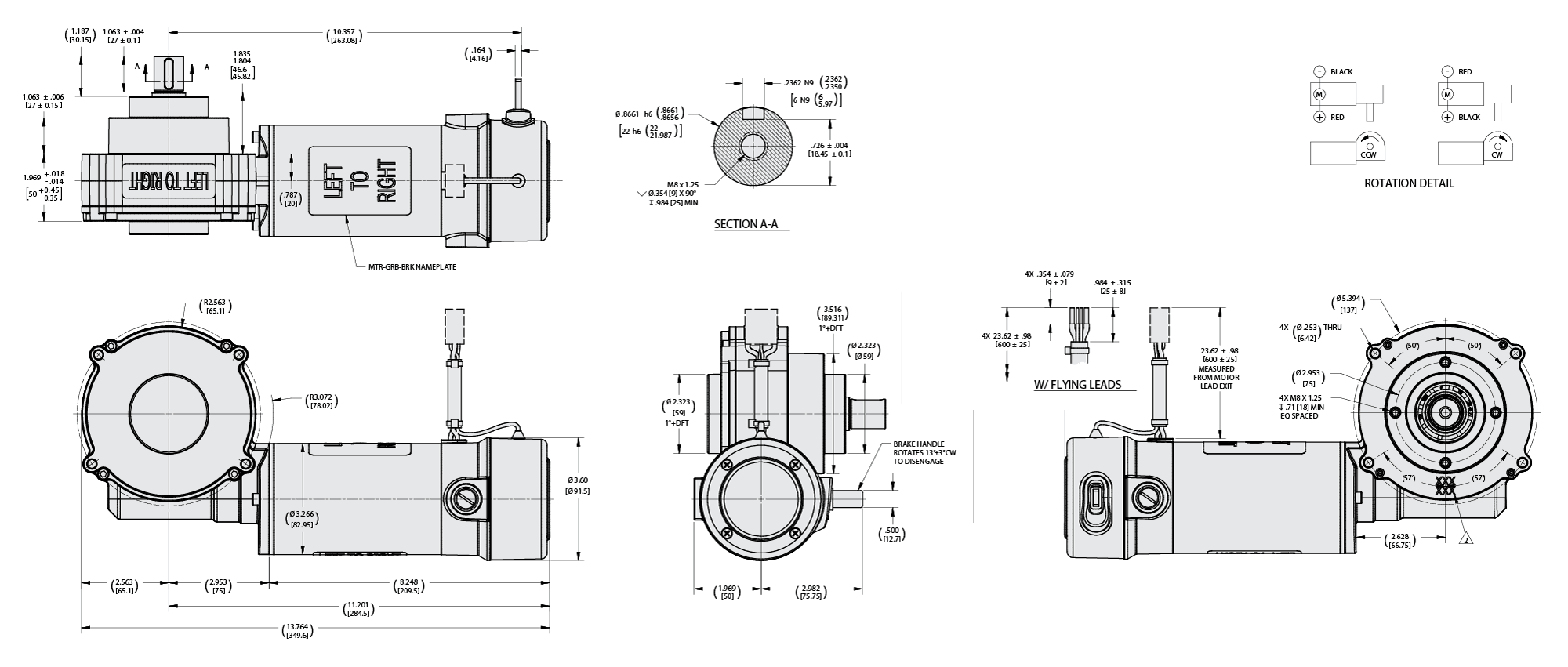

Outline Drawing
Motor Parameters
| Winding/speed | 183 | 146 | 121 |
| Gear Ratio | 29.00:1 | ||
|---|---|---|---|
| Operating Voltage (VDC) | 24 | ||
| No Load Speed (RPM) | 183 | 146 | 121 |
| Peak Torque (5 sec) (Nm) | 79.8 | 96.6 | 113.7 |
| Peak Current (5 sec) (Amps) | 80.0 | ||
| Peak Power (5 sec) (Watts) | 1051 | 944 | 791 |
| S2 Torque (15 min) (Nm) | 25.2 | 32.3 | 39.2 |
| S2 Current (15 min) (Amps) | 28.0 | ||
| S2 Power (15 min) (Watts) | 432 | 436 | 422 |
| S1 Torque (Continuous) (Nm) | 12.2 | 16.3 | 20.4 |
| S1 Current (Continuous) (Amps) | 16.0 | ||
| S1 Power (Continuous) (Watts) | 222 | 237 | 240 |
| Torque Constant (Nm/A) | 0.0424 | 0.0528 | 0.0633 |
| Voltage Constant (V/KRPM) | 4.45 | 5.53 | 6.63 |
| Motor Inertia (Armature) (kg.mm²) | 442.96 | ||
| Motor Winding Resistance (Ohms) | 0.136 | 0.141 | 0.182 |
| Motor Winding Inductance (μH) | 94 | 144 | 197 |
| Motor Max Winding Temp (ºC) | 155 | ||
| Motor Poles | 2 | ||
| Motor Mass (kg) | 6.67 | ||
Notes:
Gear Motor specifications (torque, current, power) are reference values based on 25°C operating temperature.Do not apply maximum current for more than 5 seconds or more than twice without 10 minutes between cycles

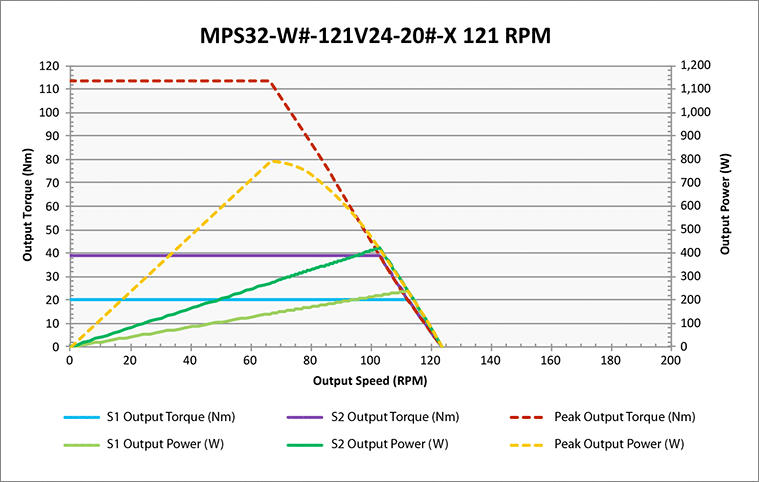

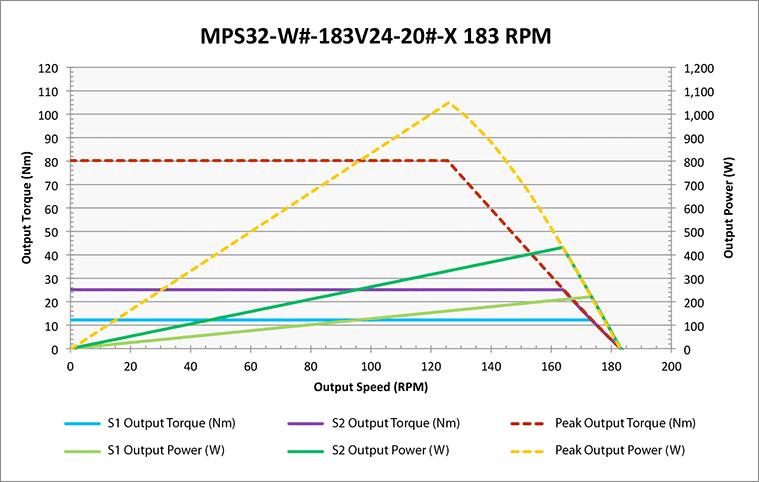

Speed / Torque Curves

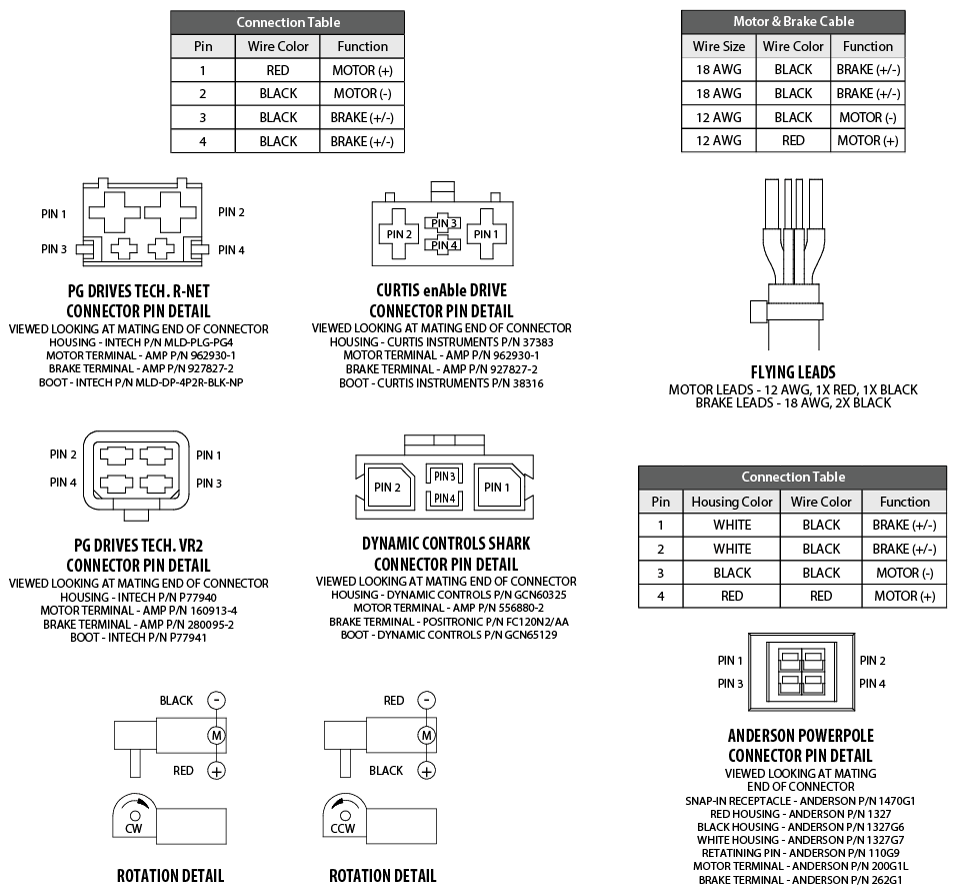

Connection
CAD
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
| MPS Series (24V windings, all models) | up to 28.0 | 80.0 | 24 | N/A | N/A | CPP-A40V24A | |
- Note1: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
