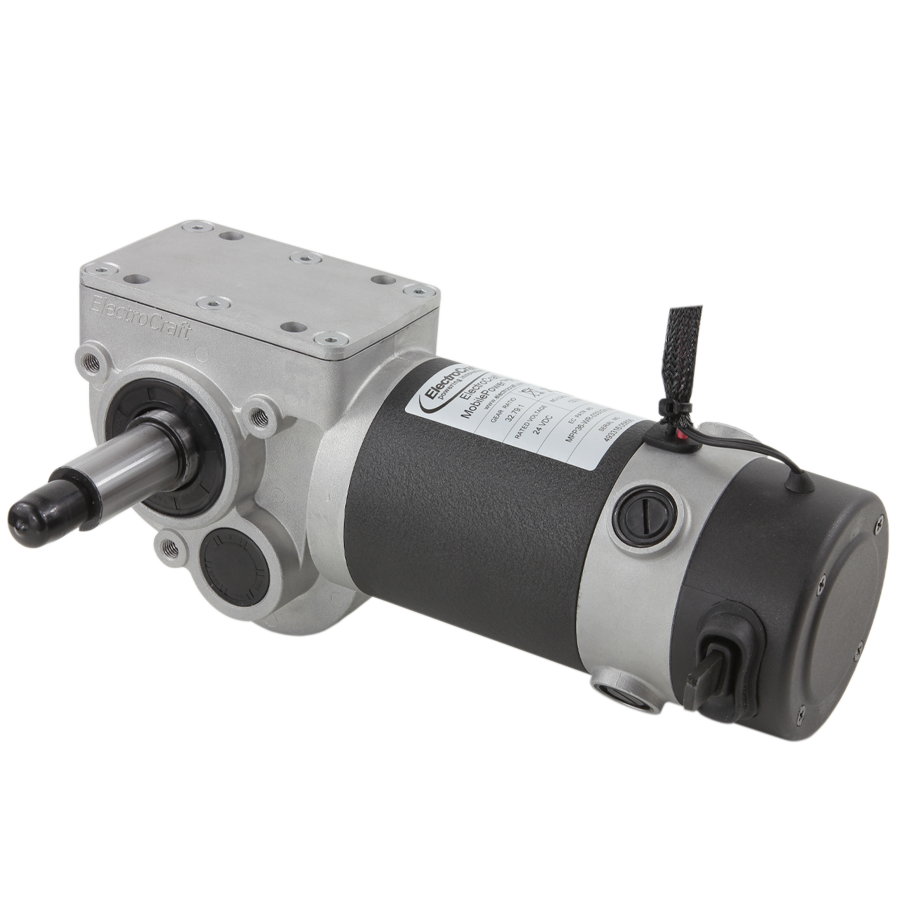

MPP36 Right-Angle Gearmotor
MobilePower™ Series
Complete Motion Solution
For a complete motion solution, the MPP36 is compatible with ElectroCraft's Universal and PRO Series drives.
ElectroCraft's MPP36 integrates a 4-pole PMDC brush motor with a very robust 2-stage right-angle worm gearbox, designed for bariatric medical mobility applications.
ElectroCraft MobilePower™ gearmotors feature an integrated design that provides increased performance and reliability at an affordable price compared to traditional motor/gearbox combinations. As with all ElectroCraft products, MobilePower™ gearmotors are customizable to meet specific application requirements.
Features
- Smooth, efficient motion
- Durable and highly reliable integrated worm-gear design
- Suitable for uneven terrain and curb-climbing
- High starting torque:
- Peak starting torque up to 144.89Nm
- 15-minute continuous torque up to 39.2Nm
- Configurable or completely customizable designs
- Motor, gearbox, brake, encoder, cabling
- Typical applications:
- Medical Mobility Chairs
- Stair Lifts
Additional Product Details

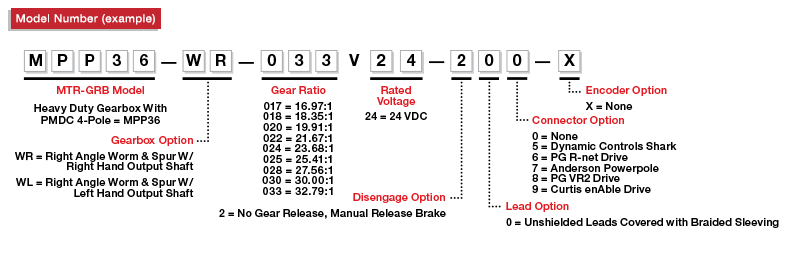

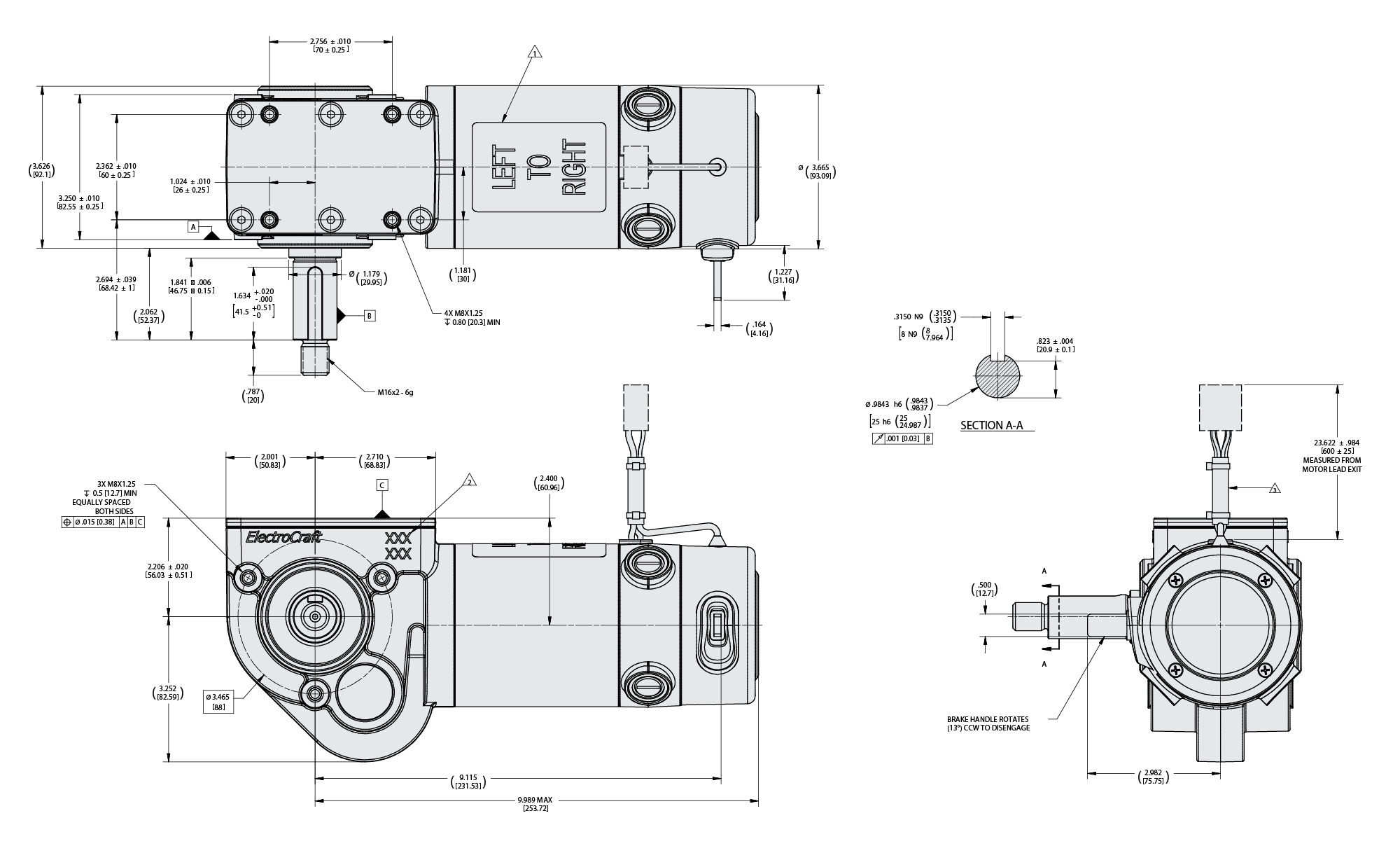

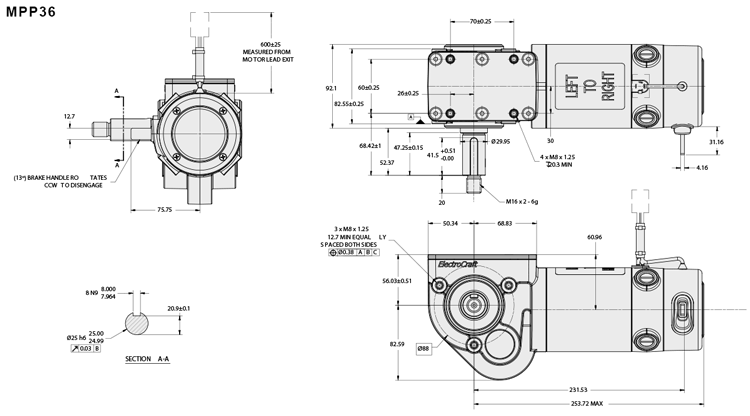

Outline Drawing
MPP26 & MPP36 Mechanical / Winding Data
| Gear Ratio | 32.79:1 | 30.00:1 | 27.56:1 | 25.41:1 | 23.68:1 | 21.67:1 | 19.91:1 | 18.35:1 | 16.97:1 |
| Operating Voltage (VDC) | 24 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| No Load Speed (RPM) | 122 | 133 | 145 | 157 | 169 | 185 | 201 | 218 | 236 |
| Peak Torque (Nm) | 144.89 | 132.56 | 121.78 | 112.28 | 104.63 | 95.75 | 87.97 | 81.08 | 74.98 |
| Peak Current (Amps) | 100 | ||||||||
| Peak Power (Watts) | 1214 | ||||||||
| S2 Torque (15 min) (Nm) | 39.20 | 35.87 | 32.95 | 30.38 | 28.31 | 25.91 | 23.80 | 21.94 | 20.29 |
| S2 Current (15 min) (Amps) | 30 | ||||||||
| S2 Power (15 min) (Watts) | 445 | ||||||||
| S1 Torque (Continuous) (Nm) | 12.03 | 11.00 | 10.11 | 9.32 | 8.69 | 7.95 | 7.30 | 6.73 | 6.22 |
| S1 Current (Continuous) (Amps) | 12.0 | ||||||||
| S1 Power (Continuous) (Watts) | 148 | ||||||||
| Torque Constant (Nm/A) | 0.0568 | ||||||||
| Voltage Constant (V/KRPM) | 5.95 | ||||||||
| Motor Inertia (Armature) (kg.mm²) | 1129.23 | ||||||||
| Motor Winding Resistance (Ohms) | 0.3 | ||||||||
| Motor Winding Inductance (μH) | 73 | ||||||||
| Motor Max Winding Temp (ºC) | 155 | ||||||||
| Motor Poles | 4 | ||||||||
| Motor Mass (kg) | 7.48 (MPP26), 7.17 (MPP36) | ||||||||
Notes:
Gear Motor specifications (torque, current, power) are reference values based on 25°C operating temperature.Do not apply maximum current for more than 5 seconds or more than twice without 10 minutes between cycles

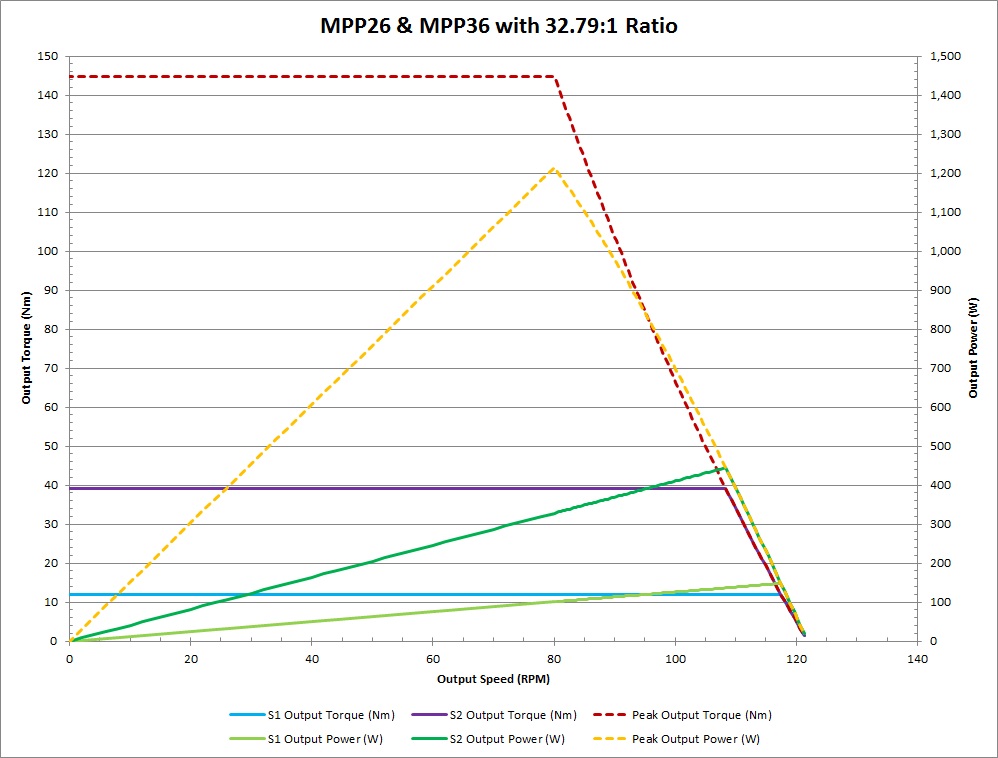

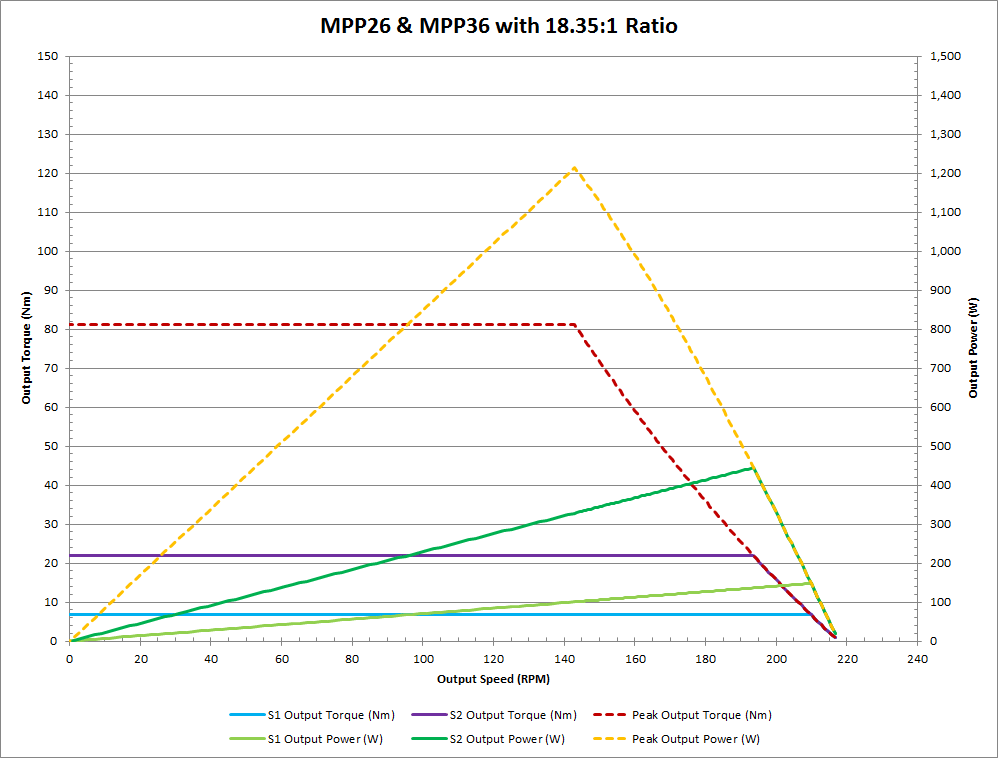

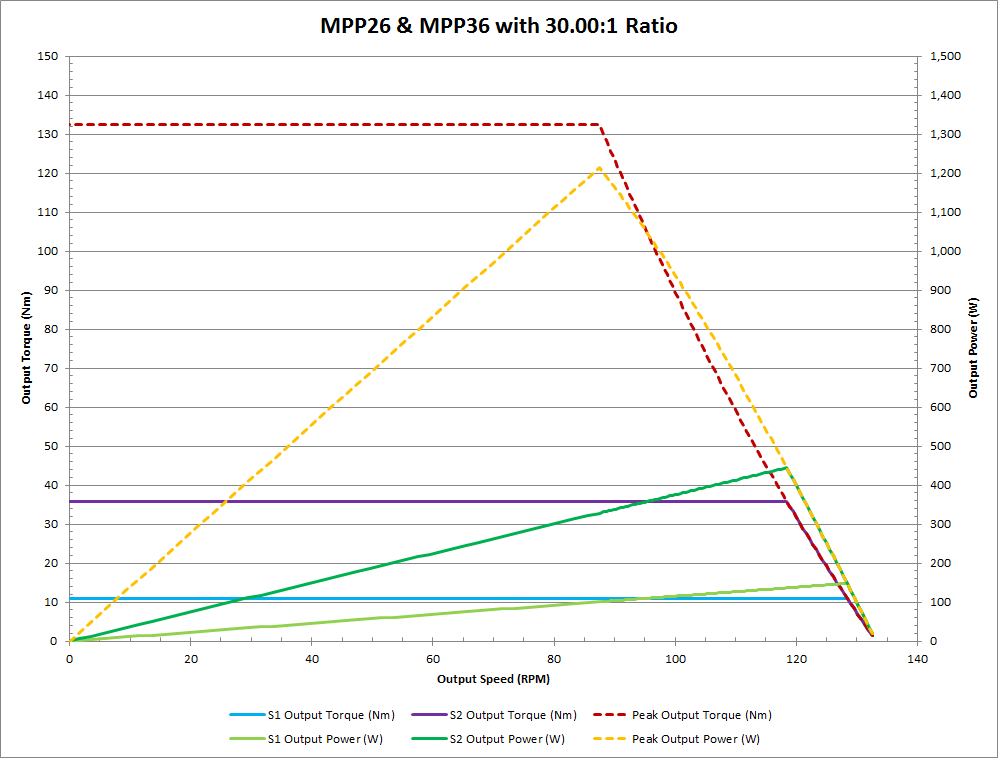

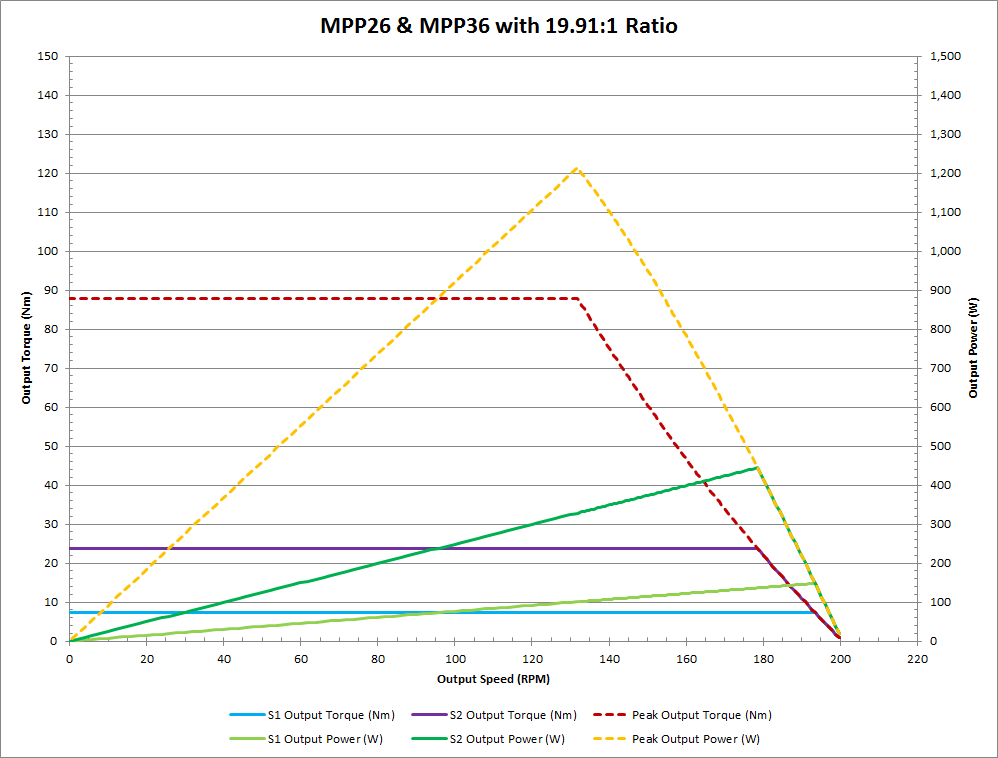

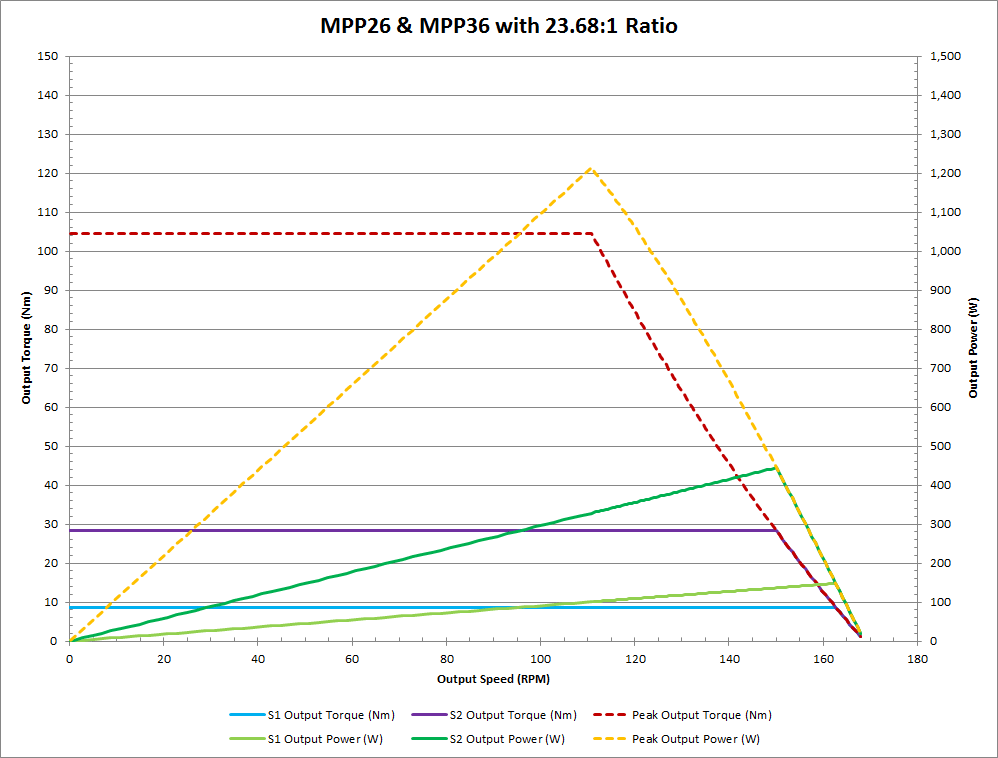

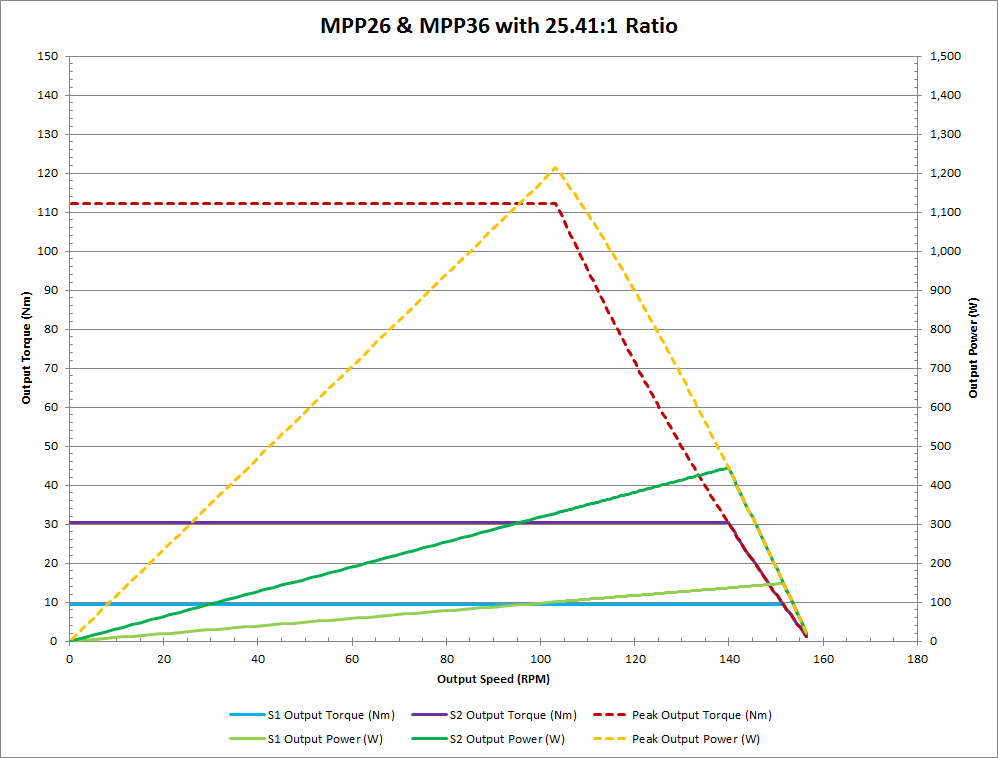

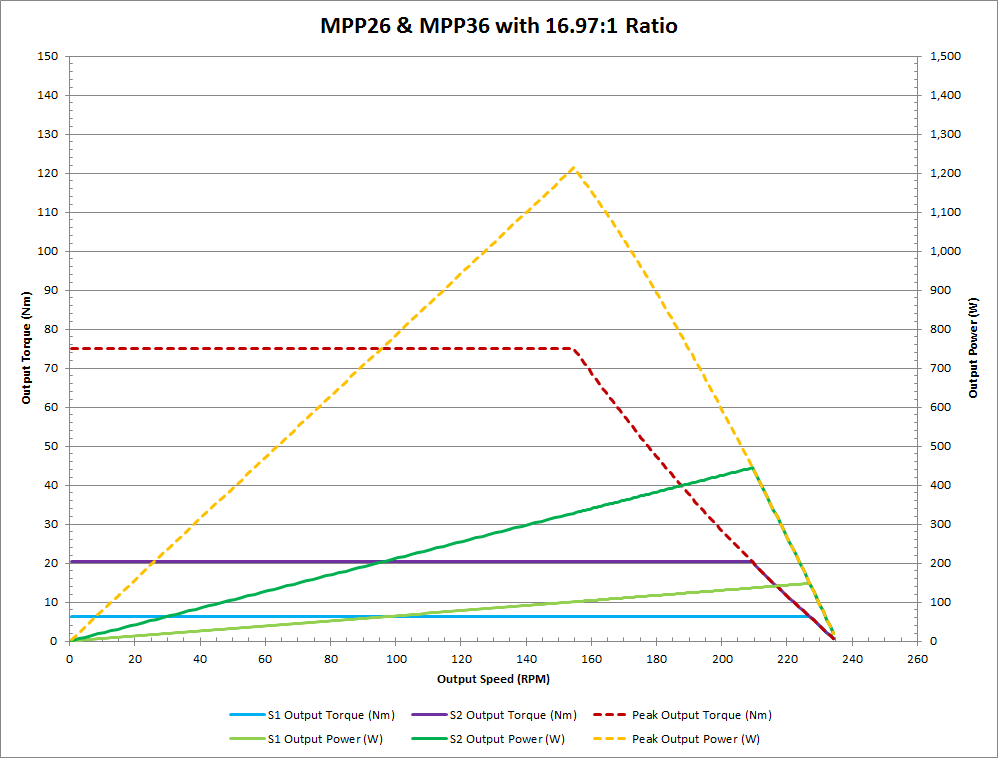

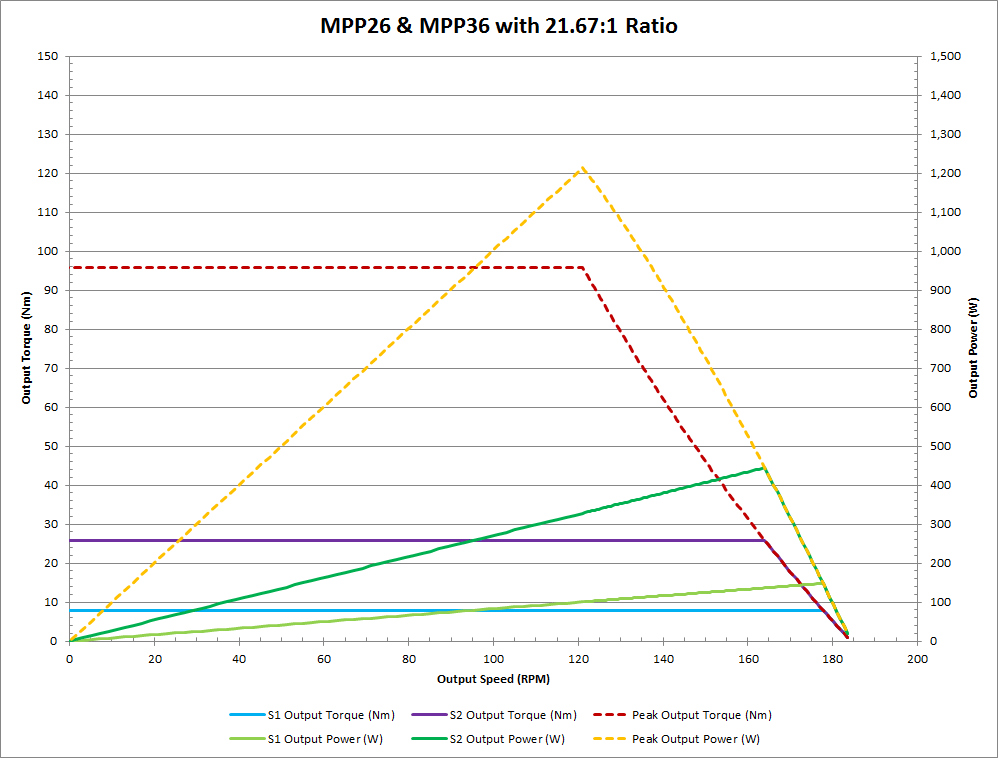

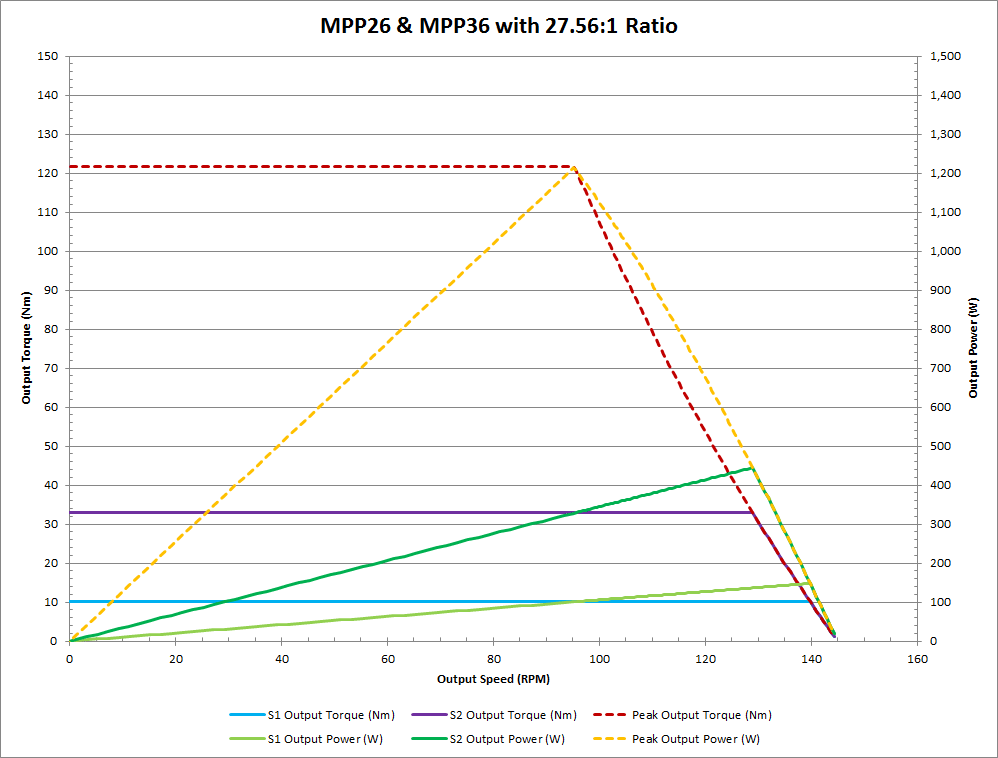

Speed / Torque Curves

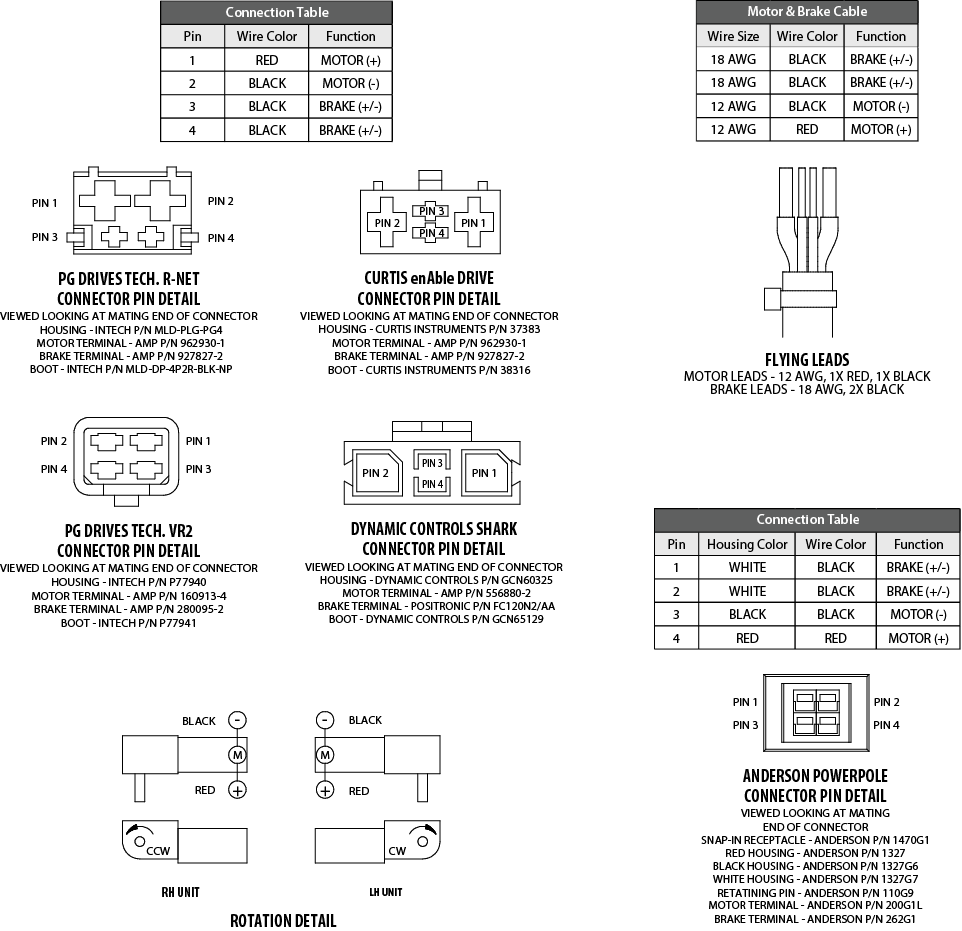

Connection
CAD
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
| All MPP24, MPP26, MPP36 (24V windings, all ratios) | up to 30.0 | 100.0 | 24 | N/A | N/A | CPP-A40V24A | |
- Note1: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
