MP36 Right-Angle Gearmotor
MobilePower™ Series
Complete Motion Solution
For a complete motion solution, the MP36 is compatible with ElectroCraft's Universal and PRO Series drives.
ElectroCraft's MP36 integrates a 4-pole PMDC brush motor with a 2-stage right-angle worm gearbox, designed for medical mobility applications.
ElectroCraft MobilePower™ gearmotors feature an integrated design that provides increased performance and reliability at an affordable price compared to traditional motor/gearbox combinations. As with all ElectroCraft products, MobilePower™ gearmotors are customizable to meet specific application requirements.
Features
- Smooth, efficient motion
- Durable and highly reliable integrated worm-gear design
- Suitable for uneven terrain and curb-climbing
- High starting torque:
- Peak starting torque up to 109.89Nm
- 15-minute continuous torque up to 31.42Nm
- Configurable or completely customizable designs
- Motor, gearbox, brake, encoder, cabling
- Typical applications:
- Medical Mobility Chairs
- Stair Lifts
Additional Product Details

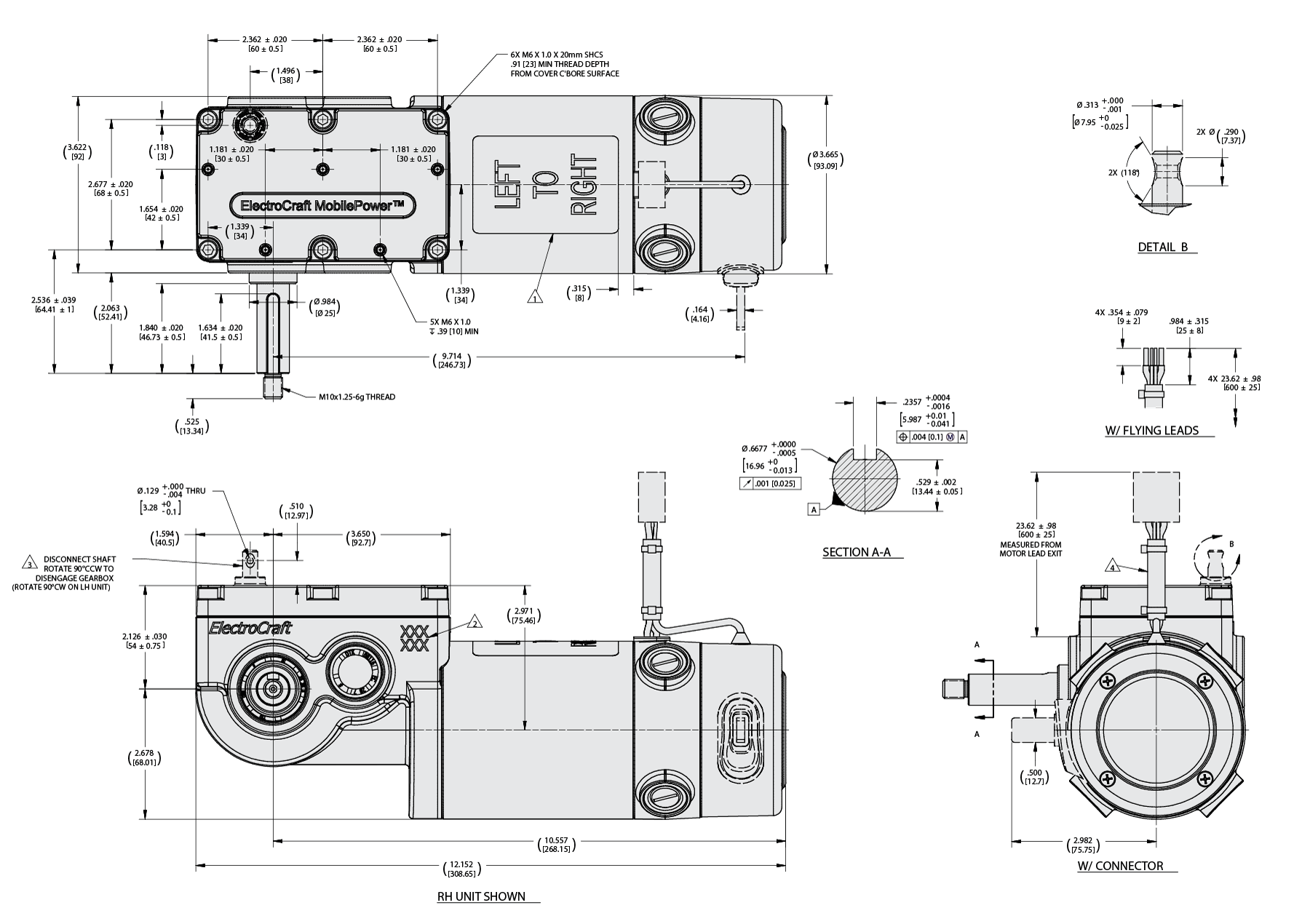

Outline Drawing
MP26 & MP36 Mechanical / Winding Data
Gear Ratio | 32.00:1 | 29.25:1 | 26.82:1 | 24.67:1 | 21.33:1 | 19.50:1 | 17.88:1 | 16.44:1 |
Operating Voltage (VDC) | 24 | |||||||
---|---|---|---|---|---|---|---|---|
No Load Speed (RPM) | 115 | 126 | 137 | 149 | 173 | 189 | 206 | 224 |
Peak Torque (Nm) | 109.89 | 100.45 | 92.11 | 84.72 | 73.25 | 66.97 | 61.4 | 56.46 |
Peak Current (Amps) | 80.0 | |||||||
Peak Power (Watts) | 972 | |||||||
S2 Torque (15 min) (Nm) | 31.42 | 28.72 | 26.34 | 24.22 | 20.94 | 19.15 | 17.56 | 16.14 |
S2 Current (15 min) (Amps) | 25.0 | |||||||
S2 Power (15 min) (Watts) | 355 | |||||||
S1 Torque (Continuous) (Nm) | 10.02 | 9.16 | 8.40 | 7.72 | 6.68 | 6.11 | 5.60 | 5.15 |
S1 Current (Continuous) (Amps) | 10.0 | |||||||
S1 Power (Continuous) (Watts) | 121 | |||||||
Torque Constant (Nm/A) | 0.05918 | |||||||
Voltage Constant (V/KRPM) | 6.2 | |||||||
Motor Inertia (Armature) (kg.mm²) | 1386.1 | |||||||
Motor Winding Resistance (Ohms) | 0.16 | |||||||
Motor Winding Inductance (μH) | 79 | |||||||
Motor Max Winding Temp (ºC) | 155 | |||||||
Motor Poles | 4 | |||||||
Motor Mass (kg) | 6.53 (MP26), 6.26 (MP36) |
Notes:
Gear Motor specifications (torque, current, power) are reference values based on 25°C operating temperature.Do not apply maximum current for more than 5 seconds or more than twice without 10 minutes between cycles
Speed / Torque Curves
Connection
CAD
Drive Compatibility
Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
---|---|---|---|---|---|---|---|---|
Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
All MP26, MP36 (24V windings, all ratios) | up to 25.0 | 80.0 | 24 | N/A | N/A | CPP-A40V24A |
- Note1: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
