Series 114-4 1.4" DC Gear Motors

Typical Applications

  • Printers
  • Plotters
  • Pumps
  • Fans
  • Cutting Tools
  • Medical Devices
  • Robotics
  • Beverage Dispensing
  • Gaming/Recreational Machines

Hansen offers an inexpensive, 1.4" diameter DC brush motor on our 2" diameter spur gearbox. This motor is offered in voltages up to 24 volts DC along with several optional features. 4 ratios are offered, 12:1, 48:1, 192:1 and 768:1. The 2" gearbox motor life is rated at 1000 hours continuous duty with 250 oz-in (1770 mNm) load torque at 75 degrees F ambient. Custom features offered include shafts, custom leads and terminations and custom mounting. Maximum intermittent output torque is 500 oz-in.

Additional Product Details

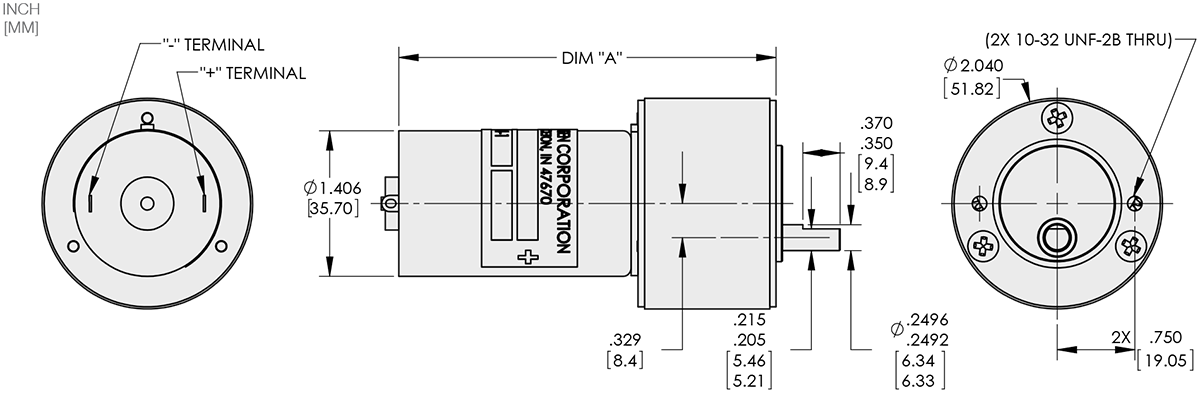

Series 114-4 - 1.4" DC Gear Motors Outline Drawing

Series 114-4 - 1.4 inch DC Gear Motors Technical Drawings

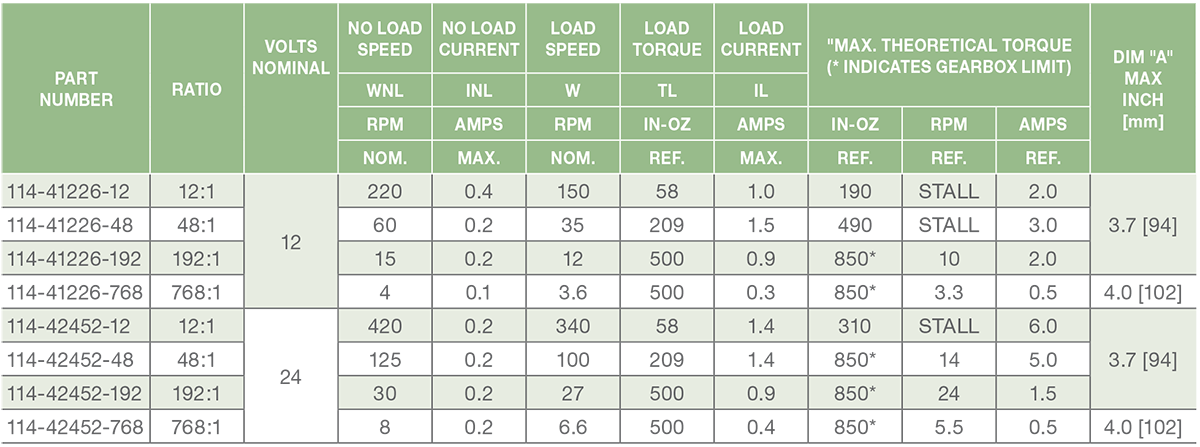

Series 114-4 - 1.4" DC Gear Motors Performance

Series 114-4 - 1.4 inch DC Gear Motors Performance

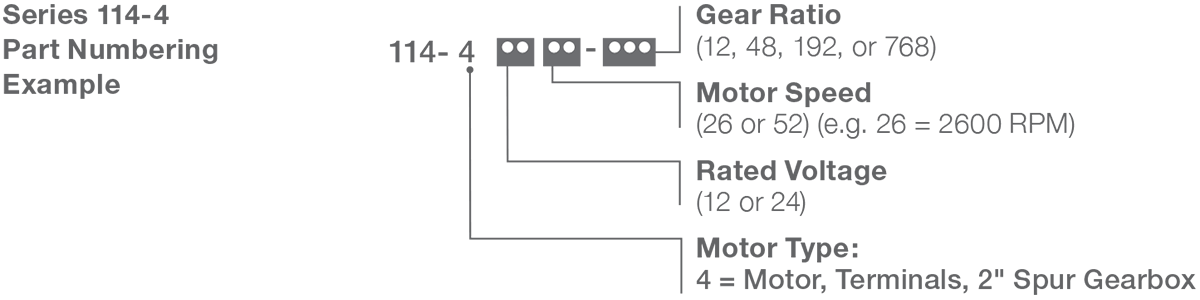

Series 114-4 - 1.4" DC Gear Motors Numbering Example

Series 114-4 - 1.4 inch DC Gear Motors Numbering Example

Series 114-4 - 1.4" DC Gear Motors CAD

Login Required to Access!

For access to our CAD, please submit your name and email address

Series 114-4 - 1.4" DC Gear Motors Data Sheet

View Data Sheet
