CompletePower™, CompletePower™ Plus and PRO Series Drives
From ElectroCraft
With advanced engineering and state of the art electronics, ElectroCraft DC motor drives offer the performance, reliability and ease of use that you expect from a complete motion solutions provider. From simple speed controls to high-performance servo drives with built-in motion control, ElectroCraft has the right solution to fit your application. With decades of design experience in a wide range of industries, including medical, laboratory, robotics, semiconductor processing, electronics manufacturing, agricultural automation and many others, ElectroCraft engineers have the expertise to configure a motor and drive solution that meets your exact needs.

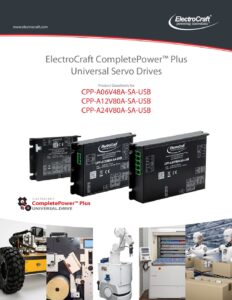

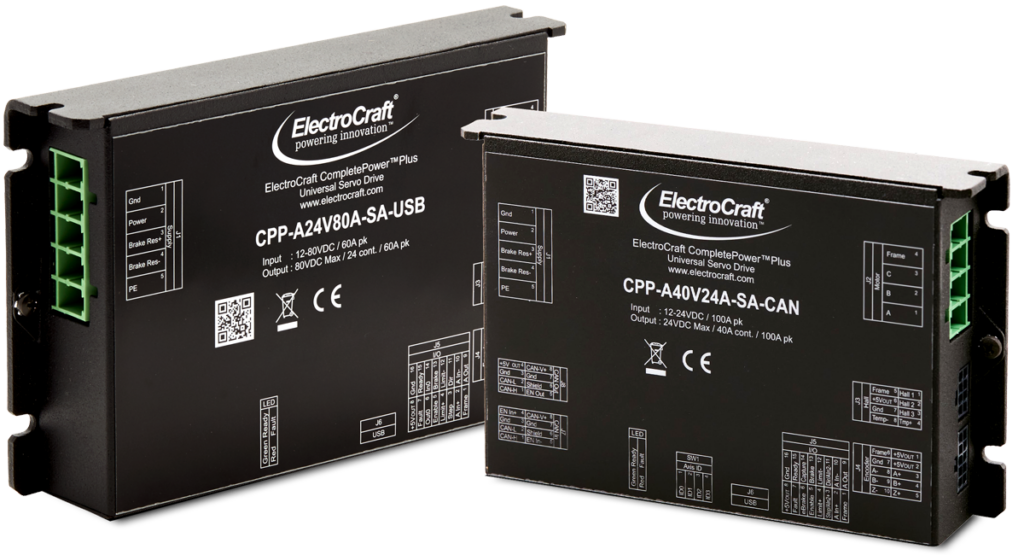

CompletePower™ Plus Universal Drives
ElectroCraft's Universal Drive is the latest addition to the ElectroCraft CompletePower™ Plus family of DC motor drives. The Universal Drive takes performance, efficiency and flexibility to the next level, utilizing state-of-the-art digital drive technology combined with an intuitive and highly configurable user interface. Compatible with a variety of motor architectures, including Brushless DC Motors, PMDC Brush Motors and DC Stepper Motors, the Universal Drive is perfect for a wide variety of applications. There are five standard capacities available in the model lineup with customized versions available for large volume OEM requirements. Now available with CAN Bus!
-
CPP-B06V48: 6A 48V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 48 VDC
Peak Output: 6 Amps (peak of sine)
Continuous Output: 6 Amps (peak of sine)
-
CPP-A06V48: 6A 48V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 48 VDC
Peak Output: 15 Amps (peak of sine)
Continuous Output: 6 Amps (peak of sine)
-
CPP-A12V80: 12A 80V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 80 VDC
Peak Output: 30 Amps (peak of sine)
Continuous Output: 12 Amps (peak of sine)
-
CPP-A24V80: 24A 80V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 80 VDC
Peak Output: 60 Amps (peak of sine)
Continuous Output: 24 Amps (peak of sine)
-
CPP-A40V24: 40A 24V Universal Servo Drive with USB Interface and CAN Bus Communications
Operating Voltage: 12 to 24 VDC
Peak Output: 100 Amps (peak of sine)
Continuous Output: 40 Amps (peak of sine)

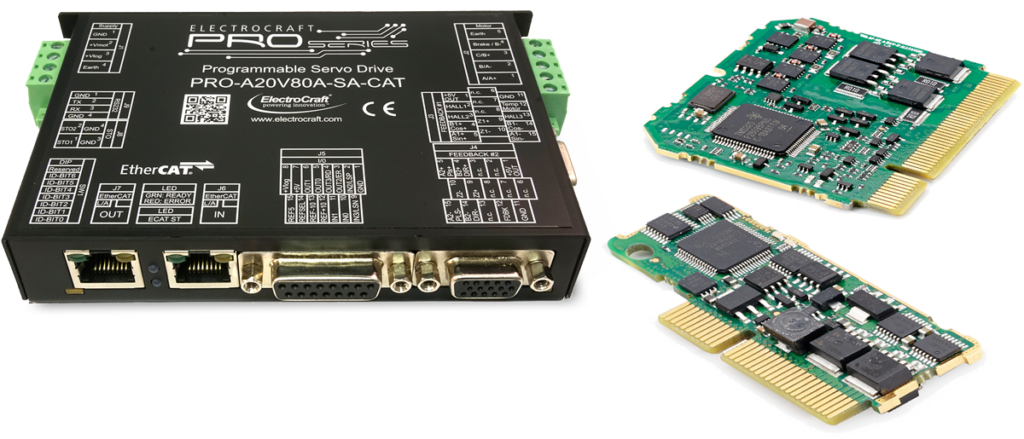

PRO Series Programmable Drives
ElectroCraft’s PRO Series offers even more capability by incorporating a
built-in programmable motion controller as well as additional communication
options such as CANopen or EtherCAT. Whether you are controlling a single
drive in a stand-alone application or multiple drives in a networked system,
configuration and programming are easy using ElectroCraft’s intuitive and
powerful MotionPRO Suite software.
-
PRO-A04V36-CAN: 4A 36V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 9 to 36 VDC
Peak Output: 10 Amps (peak of sine)
Continuous Output: 4 Amps (peak of sine)
-
PRO-A08V48-CAN: 8A 48V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 11 to 50 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 8 Amps (peak of sine)
-
PRO-A10V80A-SA-CAN: 10A 80V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 12 to 90 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 10 Amps (peak of sine)
-
PRO-A20V80A-SA-CAN: 20A 80V Programmable Digital Servo Drive with CAN Bus Interface
Operating voltage: 12 to 90 VDC
Peak Output: 40 Amps (peak of sine)
Continuous Output: 20 Amps (peak of sine)
-
PRO-A08V48B-SA-CAT: 8A 48V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 11 to 50 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 8 Amps (peak of sine)
-
PRO-A10V80A-SA-CAT: 10A 80V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 12 to 90 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 10 Amps (peak of sine)
-
PRO-A20V80A-SA-CAT: 20A 80V Programmable Digital Servo Drive with EtherCAT® Interface
Operating voltage: 12 to 90 VDC
Peak Output: 40 Amps (peak of sine)
Continuous Output: 20 Amps (peak of sine)

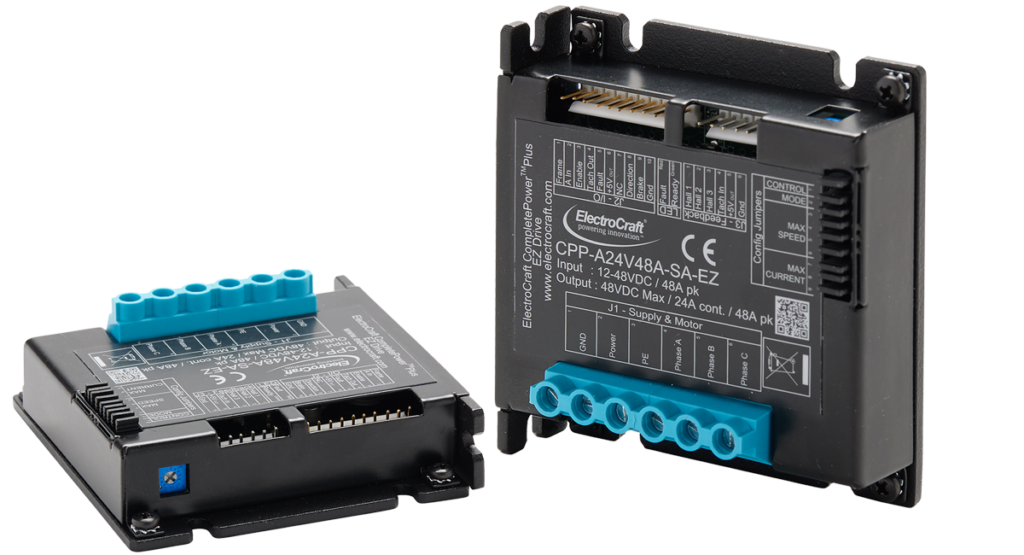

Previous Generation CompletePower™ and CompletePower™ Plus Drives
With meticulous engineering and advanced electronics, our CompletePower™ speed controls and CompletePower™ Plus servo drives offer unprecedented reliability and flexible motion control in compact packaging. From precision medical dosing systems to the rugged performance of industrial automation systems, there is an ElectroCraft drive product available for your applications.
