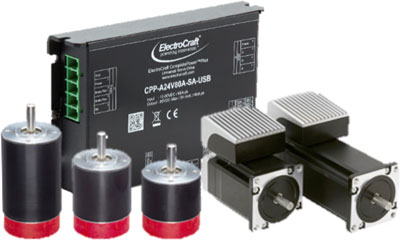

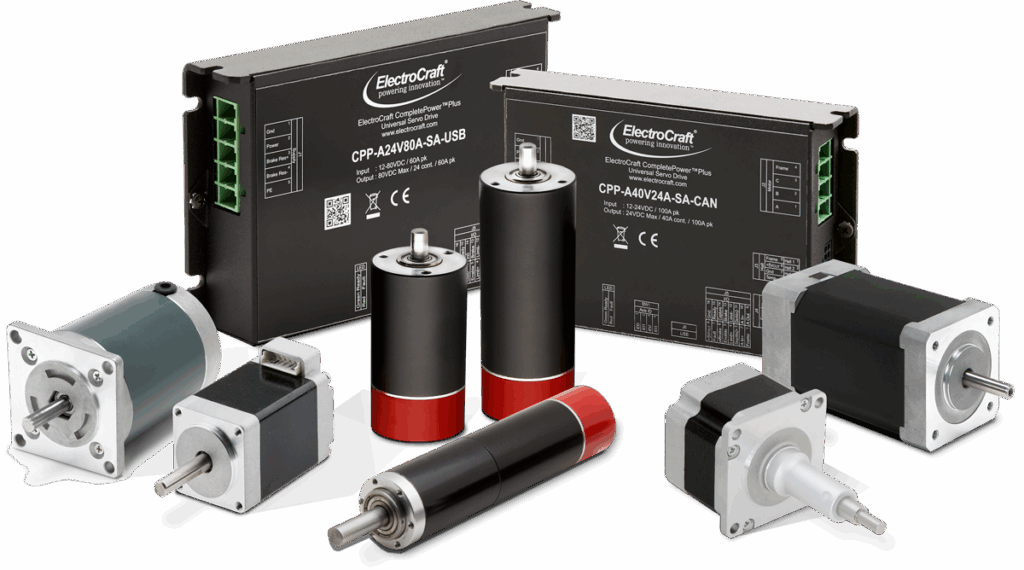

Motor and Drive Compatibility
Brushless DC Motors
Stepper Motors
Linear Actuators
Please contact ElectroCraft if the motor you are searching for is not included in the charts below.
- Note1: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms
- Note2: CPP-A24V48A maximum continuous current = 17 Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
---|---|---|---|---|---|---|---|---|---|
RapidPower - RP | Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
RP17-12V24 | RP17M-8V24 | 4.2 | 7.6 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A | |
RP17-12V48 | RP17M-8V48 | 2.1 | 3.8 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | CPP-A06V48A | |
RP17-12V60 | RP17M-8V60 | 1.7 | 3.0 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | CPP-A06V48A | |
RP17-22V24 | RP17M-16V24 | 3.6 | 9.9 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A | |
RP17-22V48 | RP17M-16V48 | 1.8 | 4.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A | |
RP17-22V60 | RP17M-16V60 | 1.4 | 3.9 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | CPP-A06V48A | |
RP17-36V24 | RP17M-25V24 | 3.7 | 10.4 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A | |
RP17-36V48 | RP17M-25V48 | 1.4 | 5.2 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A | |
RP17-36V60 | RP17M-25V60 | 1.4 | 4.2 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | CPP-A06V48A | |
RP17-45V24 | RP17M-32V24 | 3.6 | 10.9 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | CPP-A06V48A | |
RP17-45V48 | RP17M-32V48 | 1.8 | 5.5 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A | |
RP17-45V60 | RP17M-32V60 | 1.4 | 4.4 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | CPP-A06V48A | |
RP23-26V12 | RP23M-18V12 | 5.3 | 11.0 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | CPP-A12V48A | |
RP23-26V24 | RP23M-18V24 | 4.6 | 9.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | CPP-A12V48A | |
RP23-26V48 | RP23M-18V48 | 2.6 | 6.5 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A | |
RP23-34V12 | RP23M-24V12 | 8.6 | 17.5 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A | |
RP23-34V24 | RP23M-24V24 | 4.5 | 10 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | CPP-A12V48A | |
RP23-34V48 | RP23M-24V48 | 2.5 | 7.0 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A | |
RP23-54V12 | RP23M-38V12 | 8.7 | 15.9 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A | |
RP23-54V24 | RP23M-38V24 | 5.7 | 18.5 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | CPP-A12V48A | |
RP23-54V48 | RP23M-38V48 | 4.2 | 11.1 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | CPP-A06V48A | |
RP23-73V24 | RP23M-52V24 | 8.3 | 25.3 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A12V48A | |
RP23-73V48 | RP23M-52V48 | 4.7 | 14.4 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | CPP-A12V48A | |
RP34-112V24 | RP34M-79V24 | 24.4 | 85.2 | 24 | N/A | N/A | CPP-A40V24A | CPP-A24V48A | |
RP34-112V48 | RP34M-79V48 | 12.1 | 42.4 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A | |
RP34-112V90 | RP34M-79V90 | 6.1 | 21.2 | 90 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A12V48A | |
RP34-217V24 | RP34M-153V24 | 22.3 | 76.0 | 24 | N/A | N/A | CPP-A40V24A | CPP-A24V48A | |
RP34-217V48 | RP34M-153V48 | 16.9 | 59.1 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A | |
RP34-217V90 | RP34M-153V90 | 8.9 | 31.1 | 90 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A | |
RP34-313V24 | RP34M-221V24 | 22.7 | 68.1 | 24 | N/A | N/A | CPP-A40V24A | CPP-A24V48A | |
RP34-313V48 | RP34M-221V48 | 17.0 | 59.5 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A | |
RP34-313V90 | RP34M-221V90 | 11.3 | 39.7 | 90 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A |
- Note1: CPP-A40V24A maximum continuous & peak currents = 28.3Arms & 70.7Arms. Maximum output voltage = 24VDC
- Note2: CPP-A24V48A maximum continuous current = 17 Arms
- Note3: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms. Maximum output voltage = 80VDC
- Note4: CPP-A24V80A maximum continuous & peak currents = 17Arms & 42.4Arms. Maximum output voltage = 80VDC
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
---|---|---|---|---|---|---|---|---|---|
RapidPower Plus - RPP | Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
RPP23-64V48 | RPP23M-45V48 | 3.0 | 11.0 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | CPP-A06V48A | |
RPP23--98V48 | RPP23M-69V48 | 4.5 | 15.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | CPP-A12V48A | |
RPP23-118V48 | RPP23-83V48 | 6.0 | 20.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | CPP-A12V48A | |
RPP23-154V48 | RPP23M-108V48 | 7.3 | 25.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A12V48A |
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
---|---|---|---|---|---|---|---|---|---|
MPW | Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
MPW52-300V24 | 6.4 | 17.4 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | CPP-A12V48A | ||
MPW52-300V48 | 3.4 | 8.6 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V80A | CPP-A06V48A | ||
MPW52-600V24 | 11.4 | 26.5 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A | ||
MPW52-600V48 | 5.6 | 12.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | CPP-A12V48A | ||
MPW86-120V24 (10:1) | 22.0 | 80.0 | 24 | N/A | N/A | CPP-A40V24A | CPP-A24V48A | ||
MPW86-120V48 (10:1) | 15.0 | 40.0 | 48 | N/A | N/A | CPP-A24V80A | CPP-A24V48A | ||
MPW86-185V24 (10:1) | 30.0 | 73.0 | 24 | N/A | N/A | CPP-A40V24A | CPP-A24V48A | ||
MPW86-185V48 (10:1) | 16.0 | 29.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A | ||
MPW86-120V24 (20:1) | 21.0 | 47.0 | 24 | N/A | N/A | CPP-A40V24A | CPP-A24V48A | ||
MPW86-120V48 (20:1) | 13.0 | 23.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A | ||
MPW86-185V24 (20:1) | 24.0 | 43.0 | 24 | N/A | N/A | CPP-A40V24A | CPP-A24V48A | ||
MPW86-185V48 (20:1) | 10.0 | 17.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A |
- Note1: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
- Note2: CPP-A24V48A maximum continuous current = 17 Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
---|---|---|---|---|---|---|---|---|---|
MP, MPP, MPS | Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
All MP24 (24V windings, all ratios) | up to 23.5 | 58.5 | 24 | N/A | N/A | CPP-A40V24A | CPP-A24V48A | ||
All MP24 (48V windings, all ratios) | up to 11.8 | 29.3 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A | ||
All MPP24 (24V windings, all ratios) | up to 30.0 | 65 | 24 | N/A | N/A | CPP-A40V24A | CPP-A24V48A | ||
All MPP24 (48V windings, all ratios) | up to 15.0 | 32.5 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | CPP-A24V48A |
- Note1: CPP-A24V48A maximum continuous current = 17 Arms
- Note2: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms
- Note3: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
---|---|---|---|---|---|---|---|---|---|
MP, MPP, MPS | Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
All MP26, MP36 (24V windings, all ratios) | up to 25.0 | 80.0 | 24 | N/A | N/A | CPP-A40V24A | |||
All MPP26, MPP36 (24V windings, all ratios) | up to 30.0 | 100.0 | 24 | N/A | N/A | CPP-A40V24A | |||
MPS Series (24V windings, all models) | up to 28.0 | 80.0 | 24 | N/A | N/A | CPP-A40V24A |
- Note1: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
---|---|---|---|---|---|---|---|---|---|
DirectPower - DP | Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
DP20-10V12 | DP20M-07V12 | 3.8 | 11.5 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
DP20-10V24 | DP20M-07V24 | 1.9 | 5.7 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-A06V48A | ||
DP20-15V12 | DP20M-11V12 | 4.0 | 13.5 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
DP20-15V24 | DP20M-11V24 | 2.0 | 6.7 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-A06V48A | ||
DP20-20V12 | DP20M-14V12 | 4.3 | 11.5 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
DP20-20V24 | DP20M-14V24 | 2.1 | 2.7 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
DP25-30V12 | DP25M-21V12 | 9.0 | 32.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DP25-30V24 | DP25M-21V24 | 5.0 | 16.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
DP25-35V24 | DP25M-25V24 | 5.0 | 20.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
DP25-45V12 | DP25M-32V12 | 8.0 | 30.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DP25-45V24 | DP25M-32V24 | 4.0 | 16.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
DP30-60V12 | 9.0 | 27.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |||
DP30-60V24 | 4.0 | 14.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |||
DP30-75V12 | 7.0 | 14.0 | 12 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | |||
DP30-75V24 | 3.0 | 7.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |||
DP30-85V12 | 5.0 | 15.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |||
DP30-85V24 | 3.0 | 6.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A |
- Note1: PRO-A20V80A maximum peak current = 28.2Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
---|---|---|---|---|---|---|---|---|---|
DirectPower Plus - DPP | Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
DPP240(T)-29V48 | DPP240M(T)-20V48 | 2.0 | 16.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
DPP240(T)-29V60 | DPP240M(T)-20V60 | 2.0 | 14.0 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | ||
DPP242(T)-44V48 | DPP242M(T)-31V48 | 4.0 | 27.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DPP242(T)-44V60 | DPP242M(T)-31V60 | 3.0 | 21.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
DPP243(T)-52V48 | DPP243M(T)-36V48 | 5.0 | 32.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DPP243(T)-52V60 | DPP243M(T)-36V60 | 4.0 | 25.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DPP642(T)-100V48 | DPP642M(T)-70V48 | 6.0 | 25.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DPP642(T)-100V60 | DPP642M(T)-70V60 | 5.0 | 20.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
DPP643(T)-165V48 | DPP643M(T)-116V48 | 6.0 | 30.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DPP643(T)-165V60 | DPP643M(T)-116V60 | 6.0 | 23.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DPP644(T)-210V48 | DPP644M(T)-148V48 | 7.0 | 28.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DPP644(T)-210V60 | DPP644M(T)-148V60 | 5.0 | 22.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DPP681(T)-90V48 | DPP681M(T)-64V48 | 7.0 | 30.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DPP681(T)-90V60 | DPP681M(T)-64V60 | 6.0 | 25.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DPP701-150V60 | DPP701M-106V60 | 4.0 | 27.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A |
- Note1: PRO-A20V80A maximum peak current = 28.2Arms
- Note1: PRO-A20V80A maximum peak current = 28.2Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
---|---|---|---|---|---|---|---|---|---|
TorquePower Enhanced - TPE | Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
TPE17-45A10 | TPE17M-32A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE17-45A15 | TPE17M-32A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE17-45A20 | TPE17M-32A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE17-63A10 | TPE17M-44A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE17-63A15 | TPE17M-44A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE17-63A20 | TPE17M-44A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE17-78A10 | TPE17M-55A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE17-78A15 | TPE17M-55A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE17-78A20 | TPE17M-55A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE23-100A10 | TPE23M-71A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE23-100A20 | TPE23M-71A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE23-100A30 | TPE23M-71A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||||
TPE23-166A10 | TPE23M-117A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE23-166A20 | TPE23M-117A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE23-166A30 | TPE23M-117A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||||
TPE23-294A10 | TPE23M-208A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE23-294A20 | TPE23M-208A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
TPE23-294A30 | TPE23M-208A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A |
