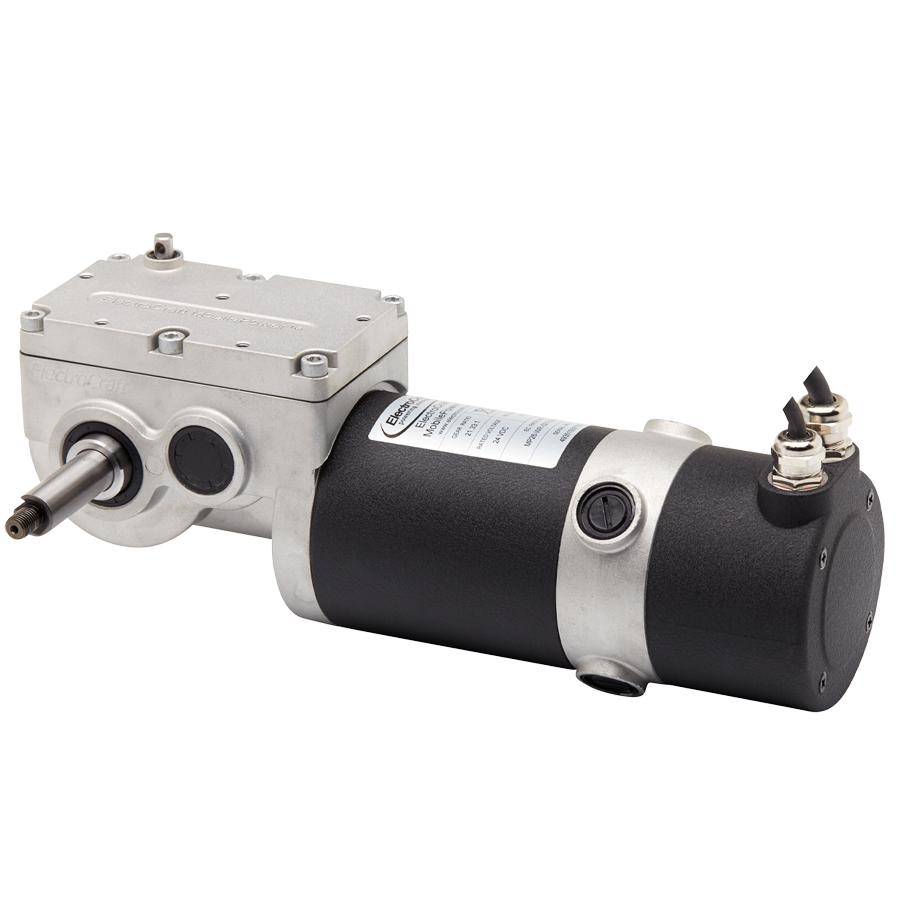

MP26 Right-Angle Gearmotor
MobilePower™ Series

Summary Details

Size: 93mm (3.665 in)
Peak Torque: 109.9 Nm (973 lb.in)

ElectroCraft's MP26 integrates a 4-pole PMDC brush motor with a 2-stage right-angle worm gearbox, designed for industrial applications, adding industrial grade cabling plus encoder feedback options to support positioning capability.

ElectroCraft MobilePower™ gearmotors feature an integrated design that provides increased performance and reliability at an affordable price compared to traditional motor/gearbox combinations. As with all ElectroCraft products, MobilePower™ gearmotors are customizable to meet specific application requirements.

Features

  • Smooth, efficient motion
  • Durable and highly reliable integrated worm-gear design
    • Suitable for uneven terrain and curb-climbing
  • High starting torque:
    • Peak starting torque up to 109.89Nm
    • 15-minute continuous torque up to 31.42Nm
  • Configurable or completely customizable designs
    • Motor, gearbox, brake, encoder, cabling
  • Typical applications:
    • Industrial traction applications
    • Industrial lifts
    • Automated Guided Vehicles
    • Autonomous Mobile Robots

Additional Product Details

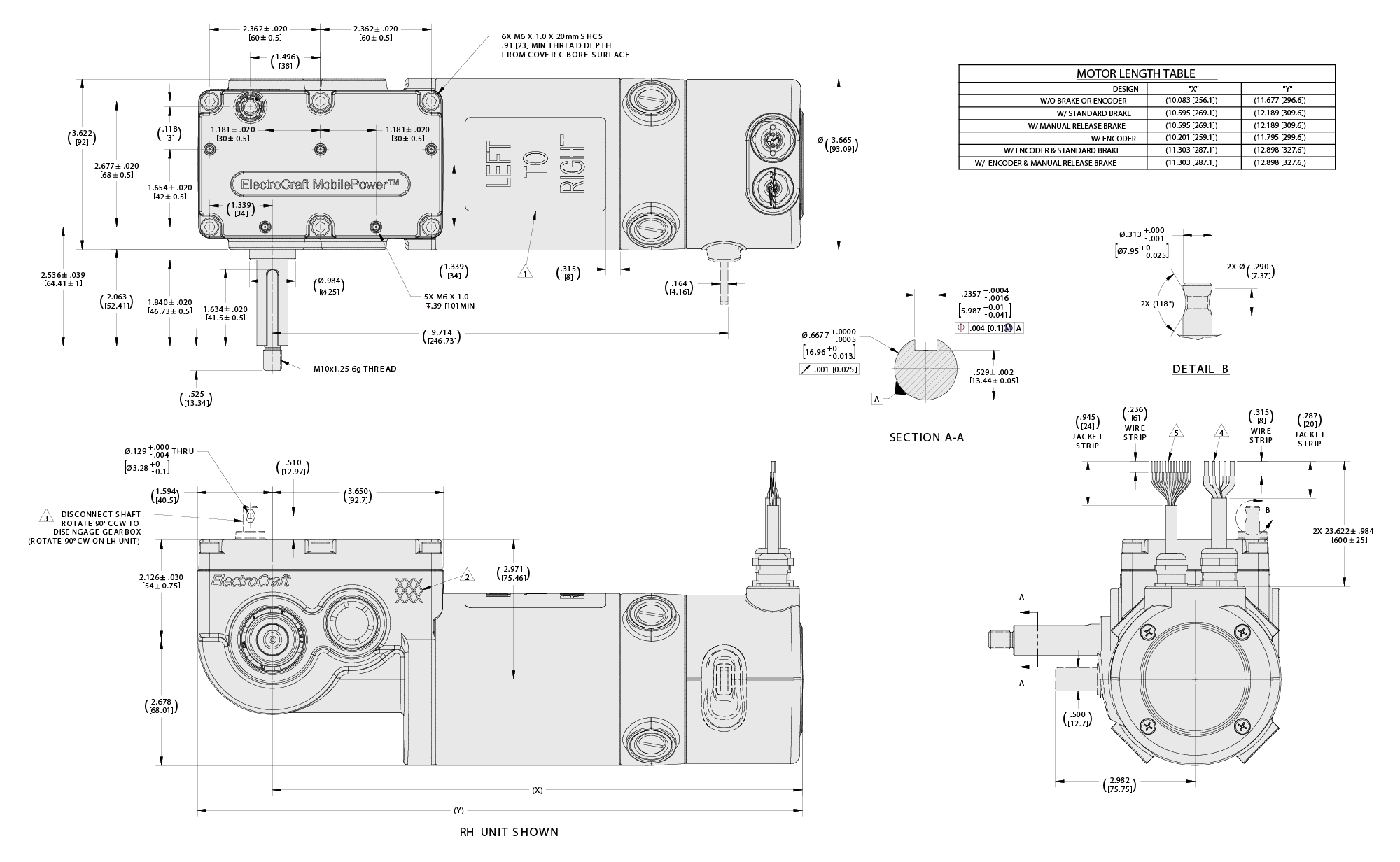

MP26 Outline Drawing

Technical Drawings

MP26 & MP36 Mechanical / Winding Data

Gear Ratio 32.00:1 29.25:1 26.82:1 24.67:1 21.33:1 19.50:1 17.88:1 16.44:1
Operating Voltage (VDC) 24
No Load Speed (RPM) 115 126 137 149 173 189 206 224
Peak Torque (Nm) 109.89 100.45 92.11 84.72 73.25 66.97 61.4 56.46
Peak Current (Amps) 80.0
Peak Power (Watts) 972
S2 Torque (15 min) (Nm) 31.42 28.72 26.34 24.22 20.94 19.15 17.56 16.14
S2 Current (15 min) (Amps) 25.0
S2 Power (15 min) (Watts) 355
S1 Torque (Continuous) (Nm) 10.02 9.16 8.40 7.72 6.68 6.11 5.60 5.15
S1 Current (Continuous) (Amps) 10.0
S1 Power (Continuous) (Watts) 121
Torque Constant (Nm/A) 0.05918
Voltage Constant (V/KRPM) 6.2
Motor Inertia (Armature) (kg.mm²) 1386.1
Motor Winding Resistance (Ohms) 0.16
Motor Winding Inductance (μH) 79
Motor Max Winding Temp (ºC) 155
Motor Poles 4
Motor Mass (kg) 6.53 (MP26), 6.26 (MP36)

Notes:

Gear Motor specifications (torque, current, power) are reference values based on 25°C operating temperature.
Do not apply maximum current for more than 5 seconds or more than twice without 10 minutes between cycles

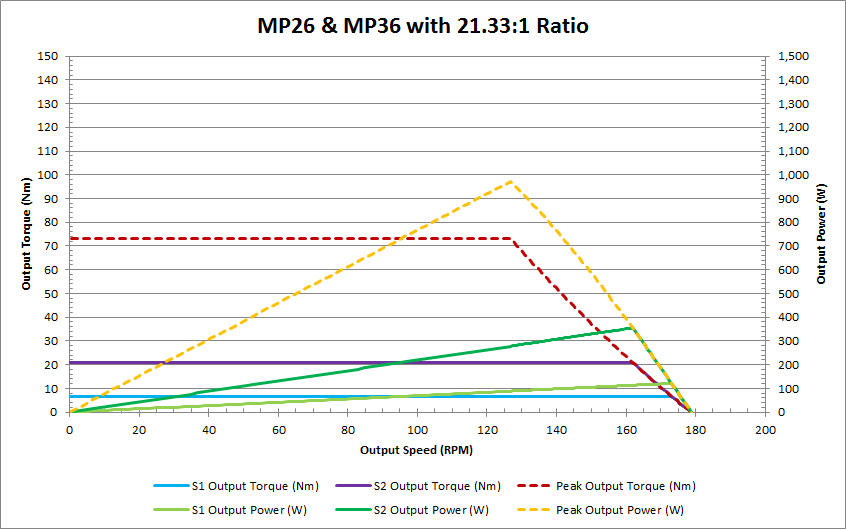

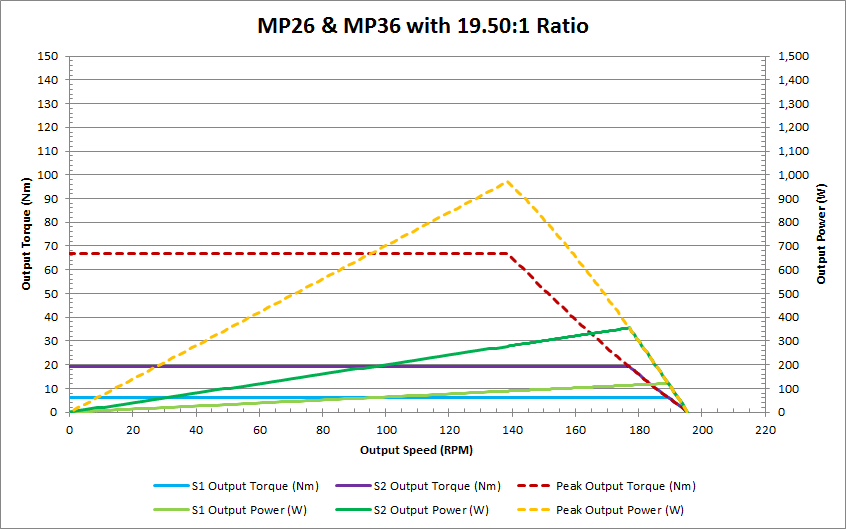

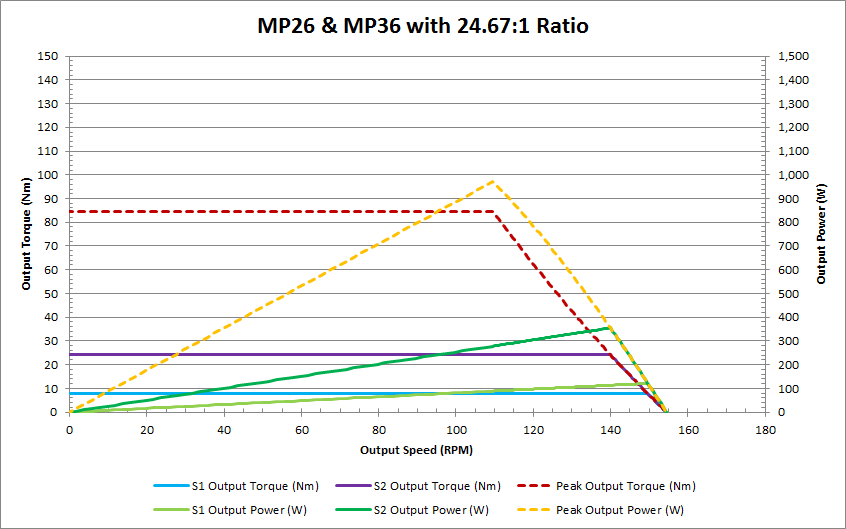

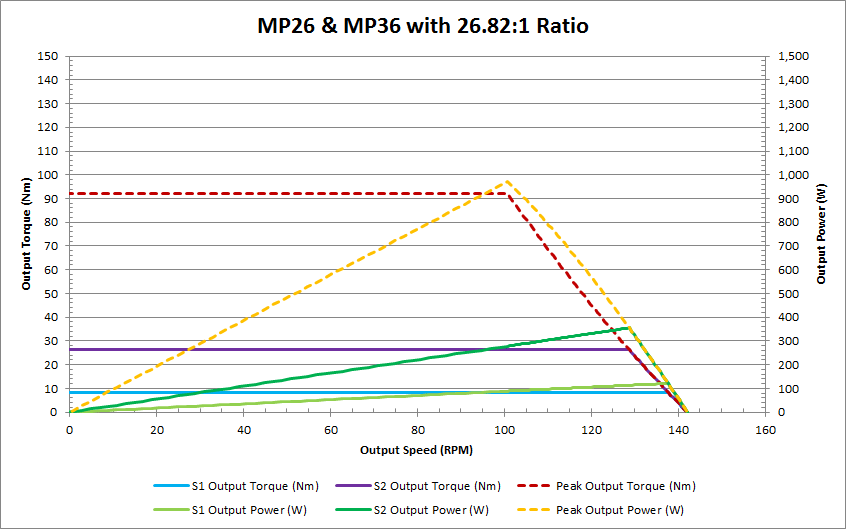

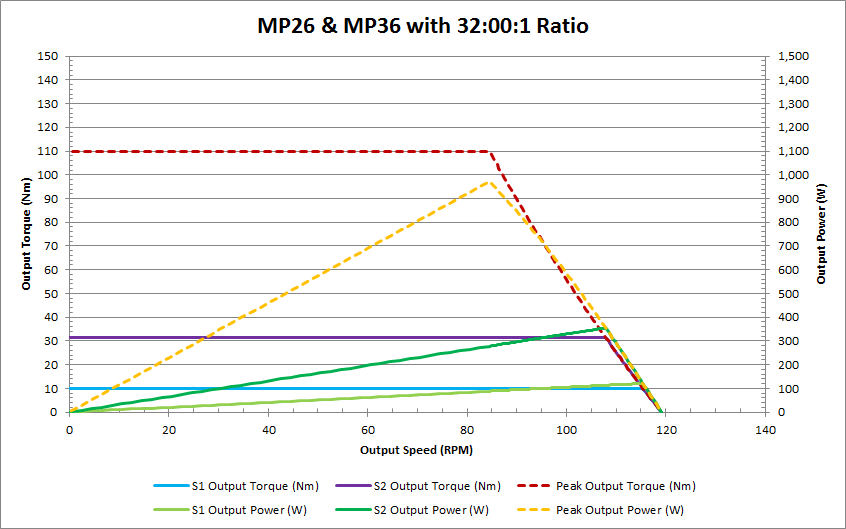

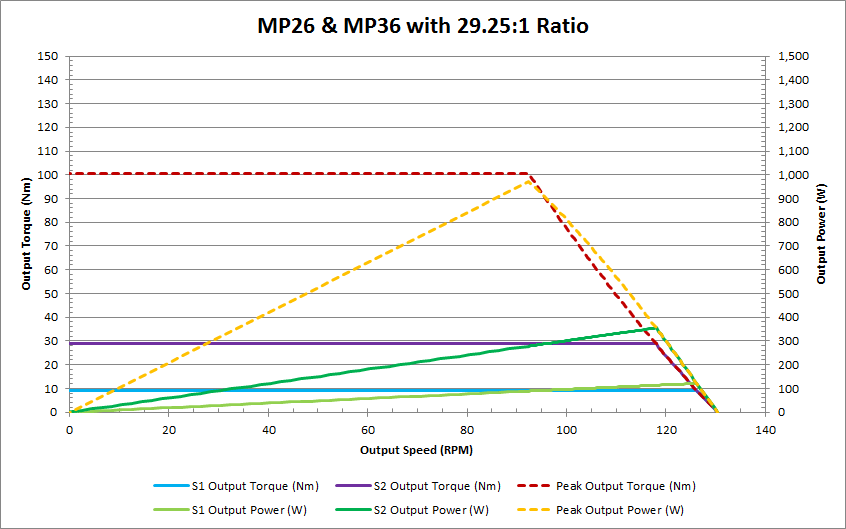

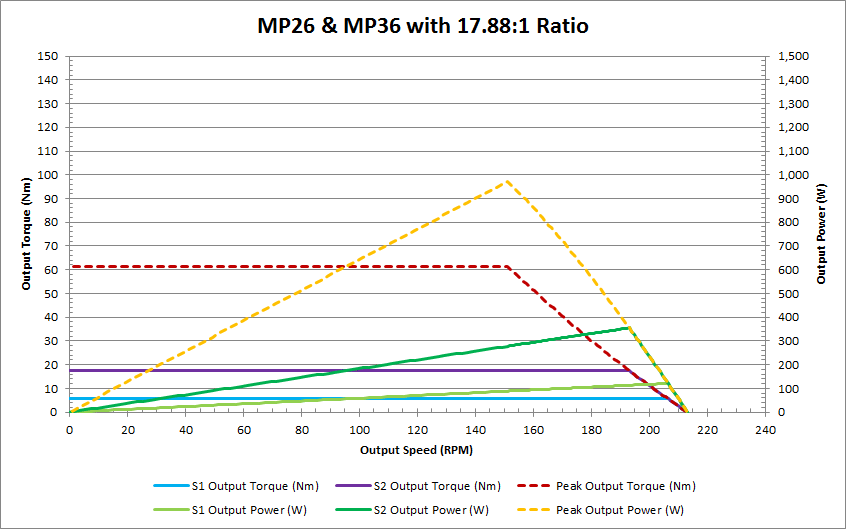

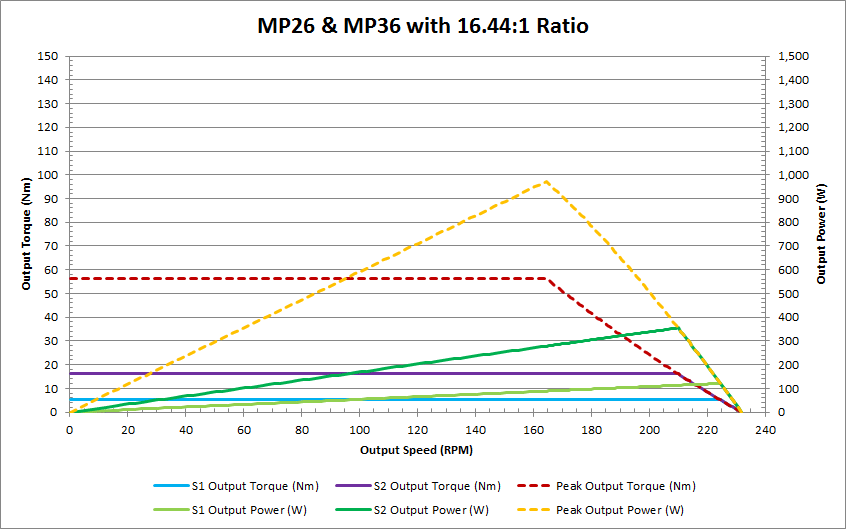

MP26 Speed / Torque Curves

curves_mp26-16.44.png curves_mp26-17.88.png curves_mp26-19.50.png curves_mp26-21.33.png curves_mp26-24.67.png curves_mp26-26.82.png curves_mp26-29.25.png curves_mp26-32.00.png

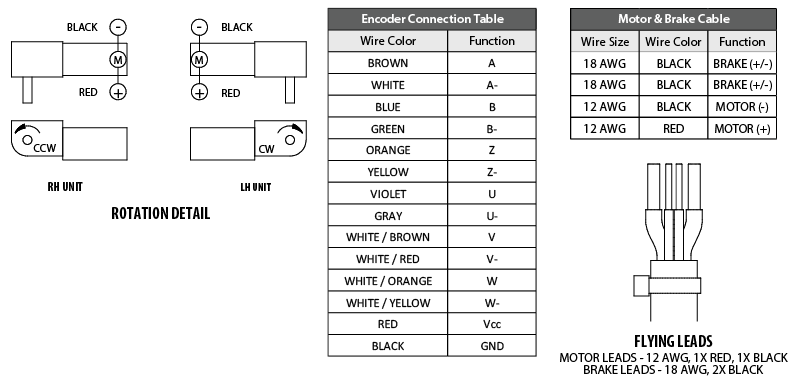

MP26 Connection

connection diagram

MP26 CAD

Login Required to Access!

For access to our CAD, please submit your name and email address

ElectroCraft Rapid Delivery Program

Some versions of this product are available via ElectroCraft's Rapid Delivery Program. Lead times for these products are given in working days and stated below. Please note, these lead times may be exceeded during holiday periods or due to unforeseen circumstances. Always contact your local ElectroCraft representative for confirmation of availability.

Rapid delivery products are stocked in locations all over the World. If the product you require is not stocked in your region, you may request accelerated delivery from other areas. Please consult your local representative for more information.

Customers are responsible for all freight charges.

Rapid Delivery to:

Select the region where the product would be delivered to.

The Americas

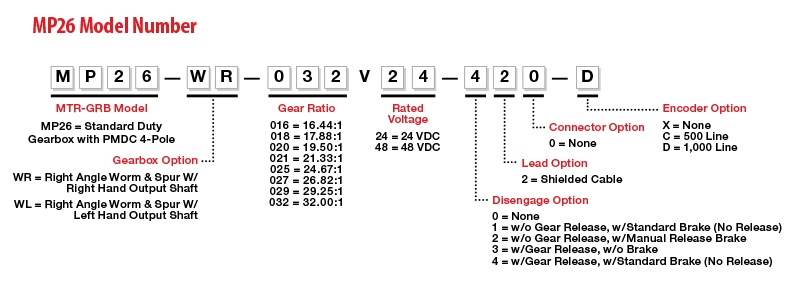

Part Number Description Typical Lead Time
MP26-WL-016V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 16:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 56 Nm, 80A (peak), 16 Nm, 25A (15min), 5 Nm, 10A (continuous) at 224RPM 90 days
MP26-WL-018V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 18:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 61 Nm, 80A (peak), 18 Nm, 25A (15min), 6 Nm, 10A (continuous) at 206RPM 2 days
MP26-WL-020V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 20:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 67 Nm, 80A (peak), 19 Nm, 25A (15min), 6 Nm, 10A (continuous) at 189RPM 90 days
MP26-WL-021V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 21:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 73 Nm, 80A (peak), 21 Nm, 25A (15min), 7 Nm, 10A (continuous) at 173RPM 2 days
MP26-WL-025V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 25:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 85 Nm, 80A (peak), 24 Nm, 25A (15min), 8 Nm, 10A (continuous) at 149RPM 90 days
MP26-WL-027V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 27:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 92 Nm, 80A (peak), 26 Nm, 25A (15min), 8 Nm, 10A (continuous) at 137RPM 2 days
MP26-WL-029V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 29:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 100 Nm, 80A (peak), 29 Nm, 25A (15min), 9 Nm, 10A (continuous) at 126RPM 90 days
MP26-WL-032V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 32:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 110 Nm, 80A (peak), 31 Nm, 25A (15min), 10 Nm, 10A (continuous) at 115RPM 2 days
MP26-WR-016V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 16:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 56 Nm, 80A (peak), 16 Nm, 25A (15min), 5 Nm, 10A (continuous) at 224RPM 90 days
MP26-WR-018V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 18:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 61 Nm, 80A (peak), 18 Nm, 25A (15min), 6 Nm, 10A (continuous) at 206RPM 2 days
MP26-WR-020V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 20:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 67 Nm, 80A (peak), 19 Nm, 25A (15min), 6 Nm, 10A (continuous) at 189RPM 90 days
MP26-WR-021V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 21:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 73 Nm, 80A (peak), 21 Nm, 25A (15min), 7 Nm, 10A (continuous) at 173RPM 2 days
MP26-WR-025V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 25:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 85 Nm, 80A (peak), 24 Nm, 25A (15min), 8 Nm, 10A (continuous) at 149RPM 90 days
MP26-WR-027V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 27:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 92 Nm, 80A (peak), 26 Nm, 25A (15min), 8 Nm, 10A (continuous) at 137RPM 2 days
MP26-WR-029V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 29:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 100 Nm, 80A (peak), 29 Nm, 25A (15min), 9 Nm, 10A (continuous) at 126RPM 90 days
MP26-WR-032V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 32:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 110 Nm, 80A (peak), 31 Nm, 25A (15min), 10 Nm, 10A (continuous) at 115RPM 2 days

Europe, the Middle East and Africa

Part Number Description Typical Lead Time
MP26-WL-016V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 16:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 56 Nm, 80A (peak), 16 Nm, 25A (15min), 5 Nm, 10A (continuous) at 224RPM 90 days
MP26-WL-018V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 18:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 61 Nm, 80A (peak), 18 Nm, 25A (15min), 6 Nm, 10A (continuous) at 206RPM 2 days
MP26-WL-020V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 20:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 67 Nm, 80A (peak), 19 Nm, 25A (15min), 6 Nm, 10A (continuous) at 189RPM 90 days
MP26-WL-021V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 21:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 73 Nm, 80A (peak), 21 Nm, 25A (15min), 7 Nm, 10A (continuous) at 173RPM 2 days
MP26-WL-025V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 25:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 85 Nm, 80A (peak), 24 Nm, 25A (15min), 8 Nm, 10A (continuous) at 149RPM 90 days
MP26-WL-027V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 27:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 92 Nm, 80A (peak), 26 Nm, 25A (15min), 8 Nm, 10A (continuous) at 137RPM 2 days
MP26-WL-029V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 29:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 100 Nm, 80A (peak), 29 Nm, 25A (15min), 9 Nm, 10A (continuous) at 126RPM 90 days
MP26-WL-032V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 32:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 110 Nm, 80A (peak), 31 Nm, 25A (15min), 10 Nm, 10A (continuous) at 115RPM 2 days
MP26-WR-016V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 16:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 56 Nm, 80A (peak), 16 Nm, 25A (15min), 5 Nm, 10A (continuous) at 224RPM 90 days
MP26-WR-018V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 18:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 61 Nm, 80A (peak), 18 Nm, 25A (15min), 6 Nm, 10A (continuous) at 206RPM 2 days
MP26-WR-020V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 20:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 67 Nm, 80A (peak), 19 Nm, 25A (15min), 6 Nm, 10A (continuous) at 189RPM 90 days
MP26-WR-021V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 21:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 73 Nm, 80A (peak), 21 Nm, 25A (15min), 7 Nm, 10A (continuous) at 173RPM 2 days
MP26-WR-025V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 25:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 85 Nm, 80A (peak), 24 Nm, 25A (15min), 8 Nm, 10A (continuous) at 149RPM 90 days
MP26-WR-027V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 27:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 92 Nm, 80A (peak), 26 Nm, 25A (15min), 8 Nm, 10A (continuous) at 137RPM 2 days
MP26-WR-029V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 29:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 100 Nm, 80A (peak), 29 Nm, 25A (15min), 9 Nm, 10A (continuous) at 126RPM 90 days
MP26-WR-032V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 32:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 110 Nm, 80A (peak), 31 Nm, 25A (15min), 10 Nm, 10A (continuous) at 115RPM 2 days

Asia

Part Number Description Typical Lead Time
MP26-WL-016V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 16:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 56 Nm, 80A (peak), 16 Nm, 25A (15min), 5 Nm, 10A (continuous) at 224RPM 30 days
MP26-WL-018V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 18:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 61 Nm, 80A (peak), 18 Nm, 25A (15min), 6 Nm, 10A (continuous) at 206RPM 2 days
MP26-WL-020V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 20:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 67 Nm, 80A (peak), 19 Nm, 25A (15min), 6 Nm, 10A (continuous) at 189RPM 30 days
MP26-WL-021V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 21:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 73 Nm, 80A (peak), 21 Nm, 25A (15min), 7 Nm, 10A (continuous) at 173RPM 2 days
MP26-WL-025V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 25:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 85 Nm, 80A (peak), 24 Nm, 25A (15min), 8 Nm, 10A (continuous) at 149RPM 30 days
MP26-WL-027V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 27:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 92 Nm, 80A (peak), 26 Nm, 25A (15min), 8 Nm, 10A (continuous) at 137RPM 2 days
MP26-WL-029V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 29:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 100 Nm, 80A (peak), 29 Nm, 25A (15min), 9 Nm, 10A (continuous) at 126RPM 30 days
MP26-WL-032V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 32:1 ratio, manual gear release, standard brake, encoder, left-hand output shaft, 110 Nm, 80A (peak), 31 Nm, 25A (15min), 10 Nm, 10A (continuous) at 115RPM 2 days
MP26-WR-016V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 16:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 56 Nm, 80A (peak), 16 Nm, 25A (15min), 5 Nm, 10A (continuous) at 224RPM 30 days
MP26-WR-018V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 18:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 61 Nm, 80A (peak), 18 Nm, 25A (15min), 6 Nm, 10A (continuous) at 206RPM 2 days
MP26-WR-020V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 20:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 67 Nm, 80A (peak), 19 Nm, 25A (15min), 6 Nm, 10A (continuous) at 189RPM 30 days
MP26-WR-021V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 21:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 73 Nm, 80A (peak), 21 Nm, 25A (15min), 7 Nm, 10A (continuous) at 173RPM 2 days
MP26-WR-025V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 25:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 85 Nm, 80A (peak), 24 Nm, 25A (15min), 8 Nm, 10A (continuous) at 149RPM 30 days
MP26-WR-027V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 27:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 92 Nm, 80A (peak), 26 Nm, 25A (15min), 8 Nm, 10A (continuous) at 137RPM 2 days
MP26-WR-029V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 29:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 100 Nm, 80A (peak), 29 Nm, 25A (15min), 9 Nm, 10A (continuous) at 126RPM 30 days
MP26-WR-032V24-420-D 93mm PMDC Right-Angle Gear Motor, 24VDC, 32:1 ratio, manual gear release, standard brake, encoder, right-hand output shaft, 110 Nm, 80A (peak), 31 Nm, 25A (15min), 10 Nm, 10A (continuous) at 115RPM 2 days
