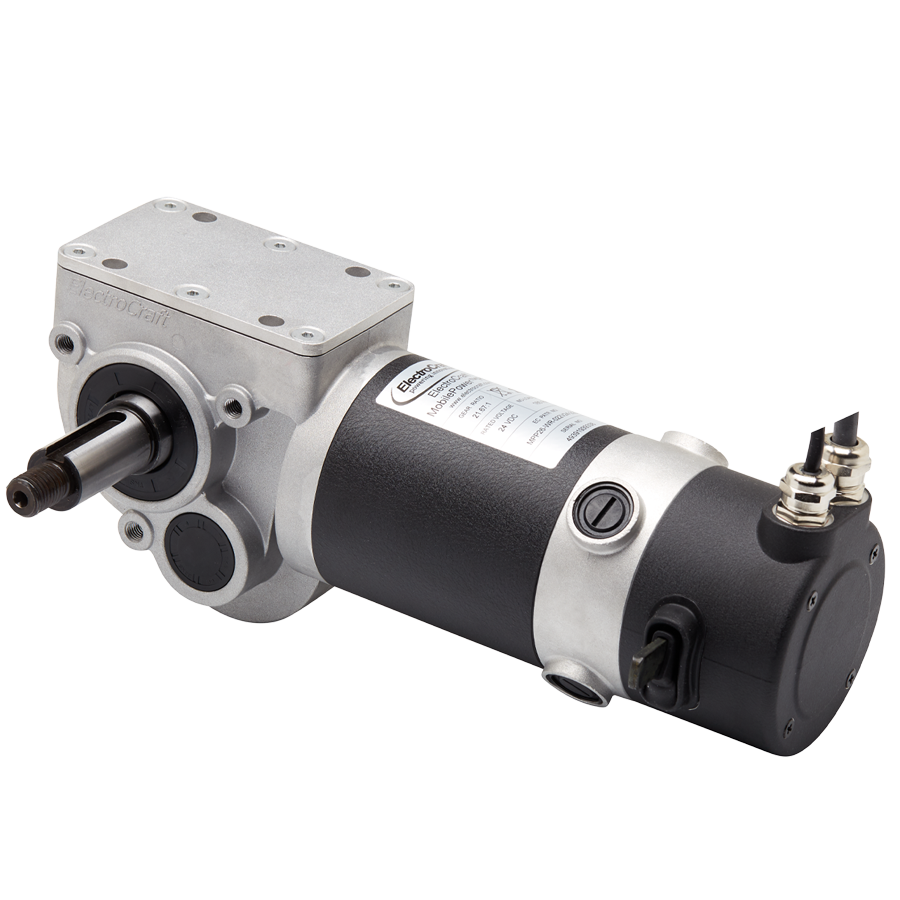

MPP26 Right-Angle Gearmotor
MobilePower™ Series

Summary Details

Size: 93mm (3.665 in)
Peak Torque: 144.9 Nm (1282 lb.in)

ElectroCraft's MPP26 integrates a 4-pole PMDC brush motor with a very robust 2-stage right-angle worm gearbox, designed for industrial applications, adding industrial grade cabling plus encoder feedback options to support positioning capability.

ElectroCraft MobilePower™ gearmotors feature an integrated design that provides increased performance and reliability at an affordable price compared to traditional motor/gearbox combinations. As with all ElectroCraft products, MobilePower™ gearmotors are customizable to meet specific application requirements.

Features

  • Smooth, efficient motion
  • Durable and highly reliable integrated worm-gear design
    • Suitable for uneven terrain and curb-climbing
  • High starting torque:
    • Peak starting torque up to 144.89Nm
    • 15-minute continuous torque up to 39.2Nm
  • Configurable or completely customizable designs
    • Motor, gearbox, brake, encoder, cabling
  • Typical applications:
    • Industrial traction applications
    • Industrial lifts
    • Automated Guided Vehicles
    • Autonomous Mobile Robots

Additional Product Details

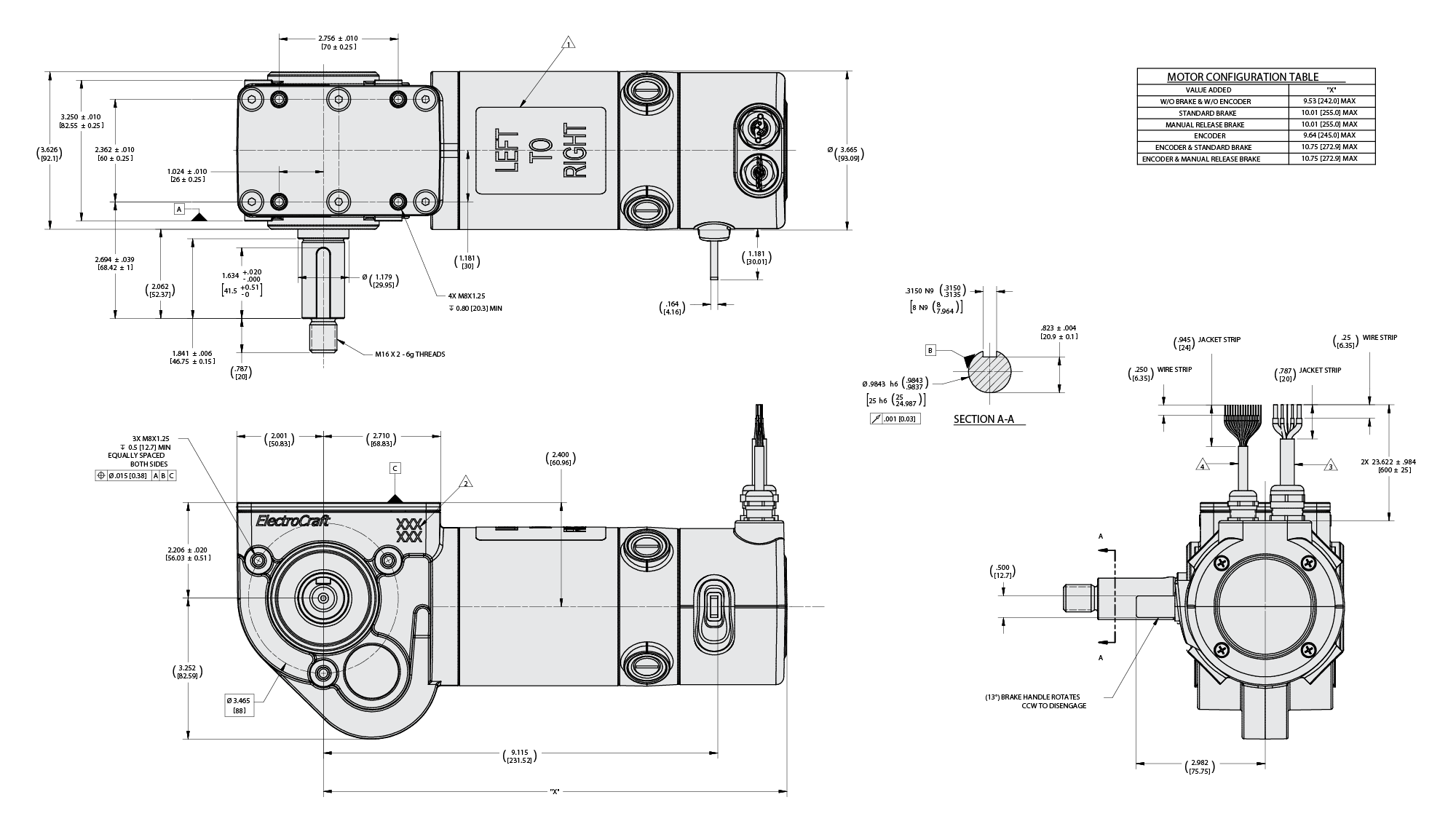

MPP26 Outline Drawing

Technical Drawings

MPP26 & MPP36 Mechanical / Winding Data

Gear Ratio 32.79:1 30.00:1 27.56:1 25.41:1 23.68:1 21.67:1 19.91:1 18.35:1 16.97:1
Operating Voltage (VDC) 24
No Load Speed (RPM) 122 133 145 157 169 185 201 218 236
Peak Torque (Nm) 144.89 132.56 121.78 112.28 104.63 95.75 87.97 81.08 74.98
Peak Current (Amps) 100
Peak Power (Watts) 1214
S2 Torque (15 min) (Nm) 39.20 35.87 32.95 30.38 28.31 25.91 23.80 21.94 20.29
S2 Current (15 min) (Amps) 30
S2 Power (15 min) (Watts) 445
S1 Torque (Continuous) (Nm) 12.03 11.00 10.11 9.32 8.69 7.95 7.30 6.73 6.22
S1 Current (Continuous) (Amps) 12.0
S1 Power (Continuous) (Watts) 148
Torque Constant (Nm/A) 0.0568
Voltage Constant (V/KRPM) 5.95
Motor Inertia (Armature) (kg.mm²) 1129.23
Motor Winding Resistance (Ohms) 0.3
Motor Winding Inductance (μH) 73
Motor Max Winding Temp (ºC) 155
Motor Poles 4
Motor Mass (kg) 7.48 (MP26), 7.17 (MP36)

Notes:

Gear Motor specifications (torque, current, power) are reference values based on 25°C operating temperature.
Do not apply maximum current for more than 5 seconds or more than twice without 10 minutes between cycles

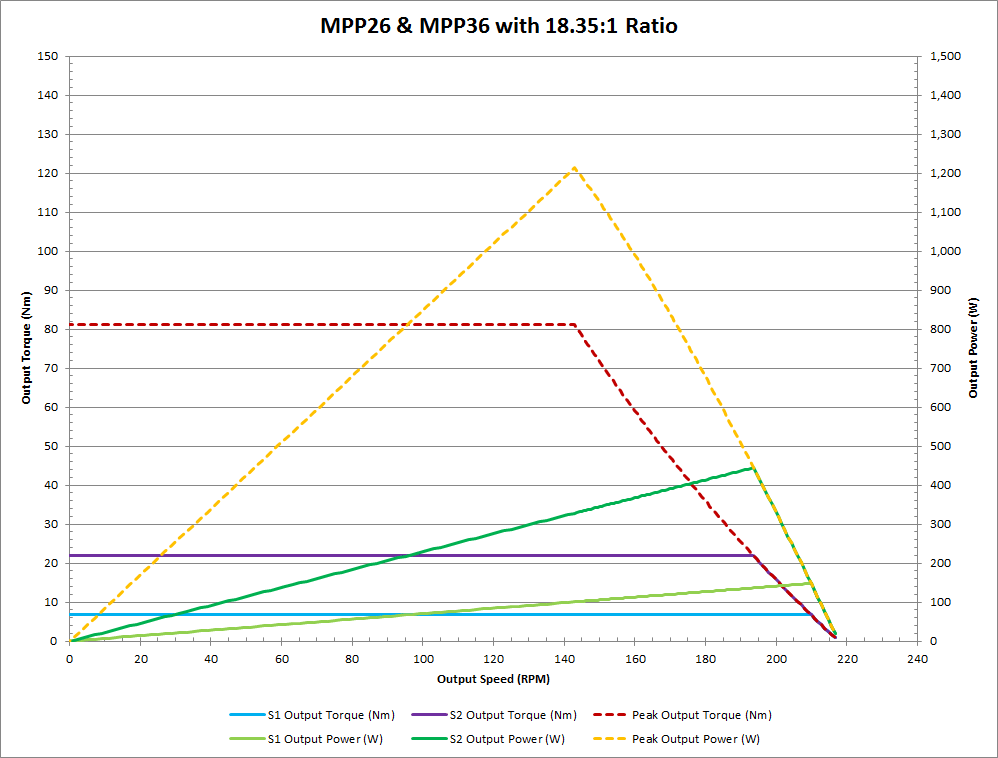

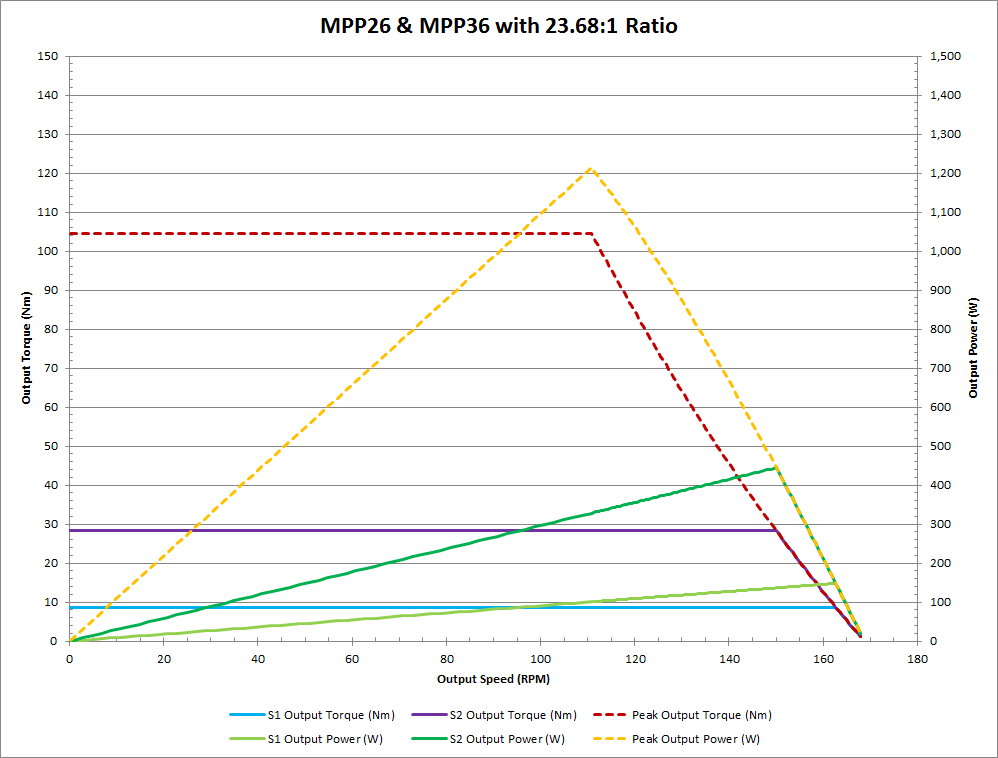

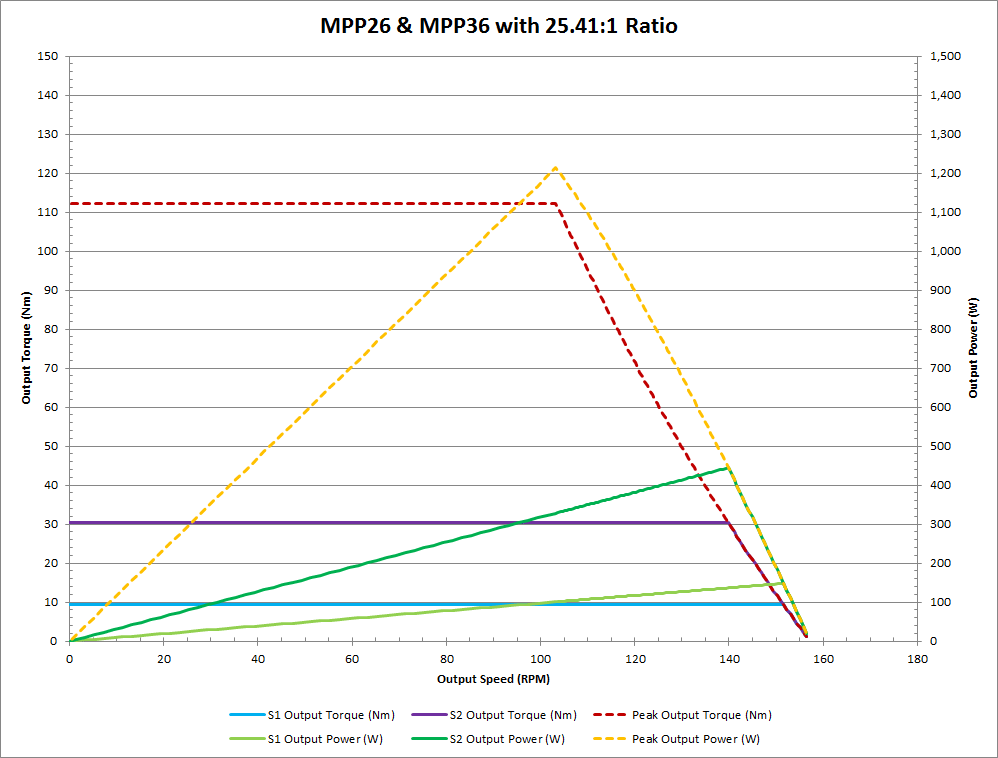

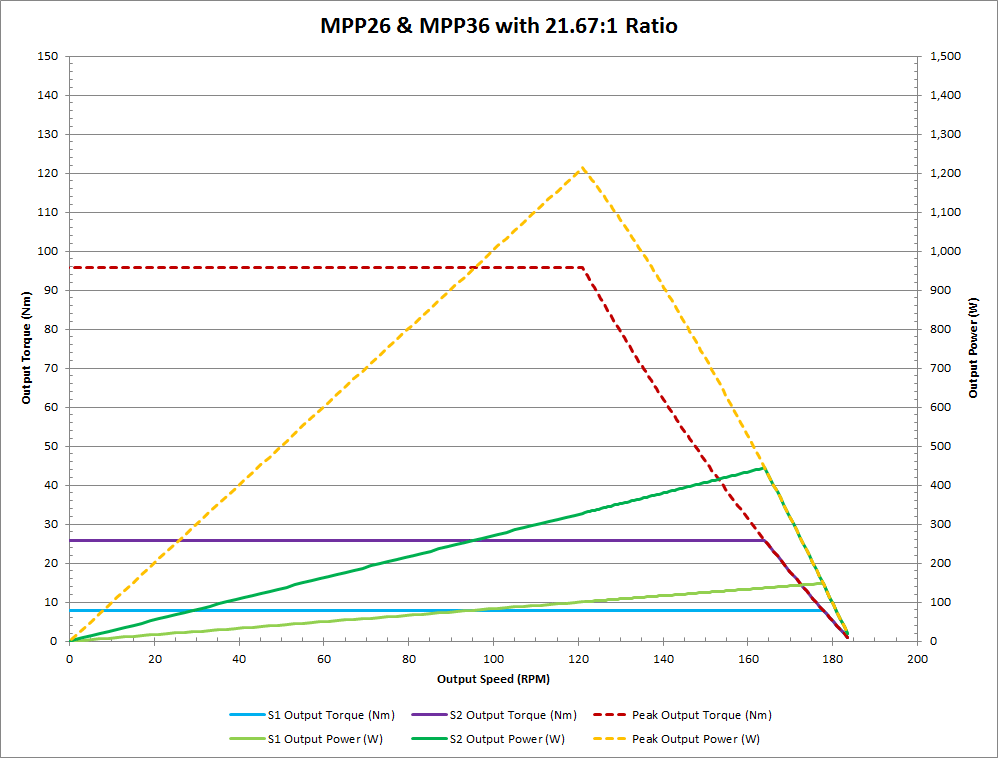

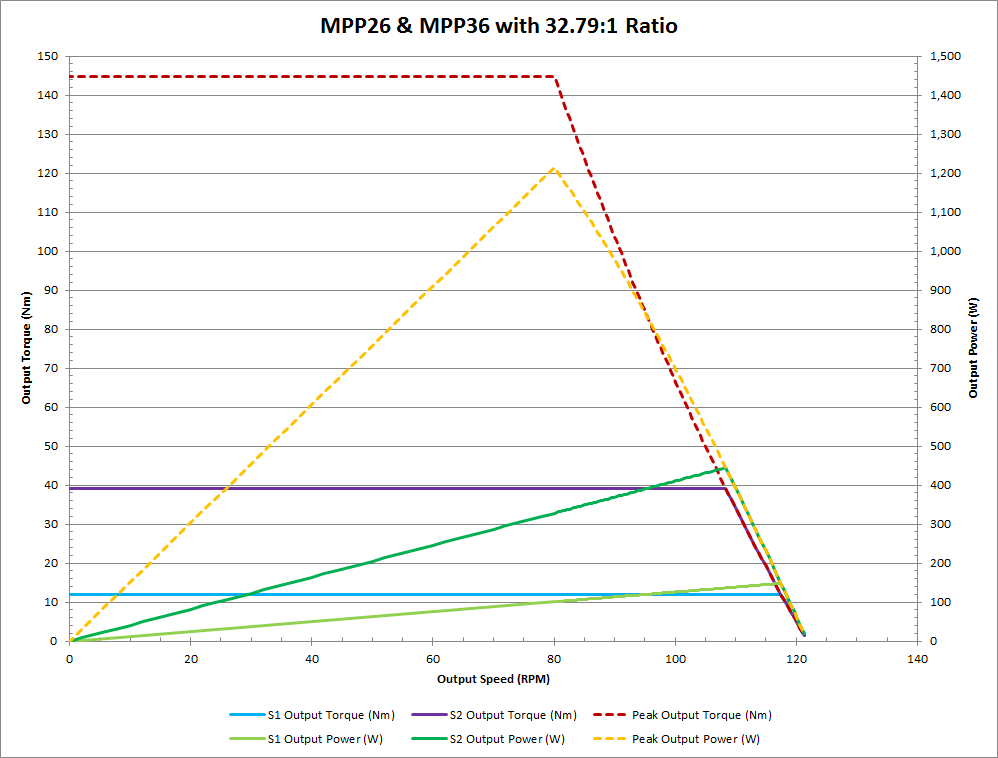

MPP26 Speed / Torque Curves

curves_mpp26-16.97.png curves_mpp26-18.35.png curves_mpp26-19.91.png curves_mpp26-21.67.png curves_mpp26-23.68.png curves_mpp26-25.41.png curves_mpp26-27.56.png curves_mpp26-30.00.png curves_mpp26-32.79.png

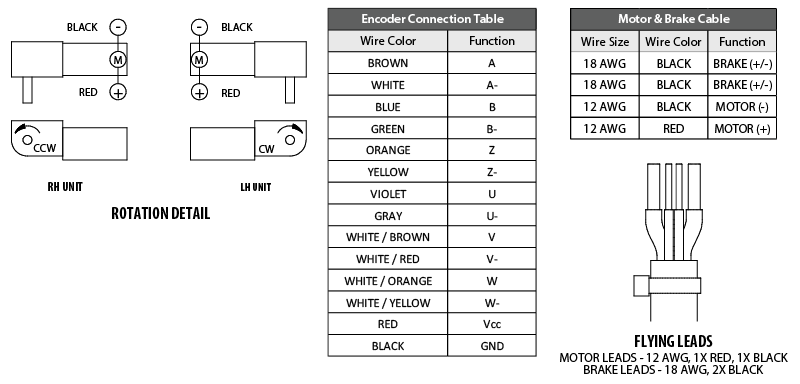

MPP26 Connection

connection diagram

ElectroCraft Rapid Delivery Program

Some versions of this product are available via ElectroCraft's Rapid Delivery Program. Lead times for these products are given in working days and stated below. Please note, these lead times may be exceeded during holiday periods or due to unforeseen circumstances. Always contact your local ElectroCraft representative for confirmation of availability.

Rapid delivery products are stocked in locations all over the World. If the product you require is not stocked in your region, you may request accelerated delivery from other areas. Please consult your local representative for more information.

Customers are responsible for all freight charges.

Rapid Delivery to:

Select the region where the product would be delivered to.

The Americas

Part Number Description Typical Lead Time
MPP26-WL-017V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 17:1 ratio, manual release brake, encoder, left-hand output shaft, 75 Nm, 100A (peak), 20 Nm, 30A (15min), 6 Nm, 12A (continuous) at 236RPM 90 days
MPP26-WL-018V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 18:1 ratio, manual release brake, encoder, left-hand output shaft, 81 Nm, 100A (peak), 22 Nm, 30A (15min), 7 Nm, 12A (continuous) at 218RPM 2 days
MPP26-WL-020V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 20:1 ratio, manual release brake, encoder, left-hand output shaft, 88 Nm, 100A (peak), 24 Nm, 30A (15min), 7 Nm, 12A (continuous) at 201RPM 90 days
MPP26-WL-022V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 22:1 ratio, manual release brake, encoder, left-hand output shaft, 96 Nm, 100A (peak), 26 Nm, 30A (15min), 8 Nm, 12A (continuous) at 185RPM 2 days
MPP26-WL-024V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 24:1 ratio, manual release brake, encoder, left-hand output shaft, 105 Nm, 100A (peak), 28 Nm, 30A (15min), 9 Nm, 12A (continuous) at 169RPM 90 days
MPP26-WL-025V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 25:1 ratio, manual release brake, encoder, left-hand output shaft, 112 Nm, 100A (peak), 30 Nm, 30A (15min), 9 Nm, 12A (continuous) at 157RPM 2 days
MPP26-WL-028V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 28:1 ratio, manual release brake, encoder, left-hand output shaft, 122 Nm, 100A (peak), 33 Nm, 30A (15min), 10 Nm, 12A (continuous) at 145RPM 90 days
MPP26-WL-030V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 30:1 ratio, manual release brake, encoder, left-hand output shaft, 133 Nm, 100A (peak), 36 Nm, 30A (15min), 11 Nm, 12A (continuous) at 133RPM 2 days
MPP26-WL-033V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 33:1 ratio, manual release brake, encoder, left-hand output shaft, 145 Nm, 100A (peak), 39 Nm, 30A (15min), 11 Nm, 12A (continuous) at 122RPM 90 days
MPP26-WR-017V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 17:1 ratio, manual release brake, encoder, right-hand output shaft, 75 Nm, 100A (peak), 20 Nm, 30A (15min), 6 Nm, 12A (continuous) at 236RPM 90 days
MPP26-WR-018V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 18:1 ratio, manual release brake, encoder, right-hand output shaft, 81 Nm, 100A (peak), 22 Nm, 30A (15min), 7 Nm, 12A (continuous) at 218RPM 2 days
MPP26-WR-020V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 20:1 ratio, manual release brake, encoder, right-hand output shaft, 88 Nm, 100A (peak), 24 Nm, 30A (15min), 7 Nm, 12A (continuous) at 201RPM 90 days
MPP26-WR-022V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 22:1 ratio, manual release brake, encoder, right-hand output shaft, 96 Nm, 100A (peak), 26 Nm, 30A (15min), 8 Nm, 12A (continuous) at 185RPM 2 days
MPP26-WR-024V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 24:1 ratio, manual release brake, encoder, right-hand output shaft, 105 Nm, 100A (peak), 28 Nm, 30A (15min), 9 Nm, 12A (continuous) at 169RPM 90 days
MPP26-WR-025V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 25:1 ratio, manual release brake, encoder, right-hand output shaft, 112 Nm, 100A (peak), 30 Nm, 30A (15min), 9 Nm, 12A (continuous) at 157RPM 2 days
MPP26-WR-028V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 28:1 ratio, manual release brake, encoder, right-hand output shaft, 122 Nm, 100A (peak), 33 Nm, 30A (15min), 10 Nm, 12A (continuous) at 145RPM 90 days
MPP26-WR-030V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 30:1 ratio, manual release brake, encoder, right-hand output shaft, 133 Nm, 100A (peak), 36 Nm, 30A (15min), 11 Nm, 12A (continuous) at 133RPM 2 days
MPP26-WR-033V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 33:1 ratio, manual release brake, encoder, right-hand output shaft, 145 Nm, 100A (peak), 39 Nm, 30A (15min), 11 Nm, 12A (continuous) at 122RPM 90 days

Europe, the Middle East and Africa

Part Number Description Typical Lead Time
MPP26-WL-017V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 17:1 ratio, manual release brake, encoder, left-hand output shaft, 75 Nm, 100A (peak), 20 Nm, 30A (15min), 6 Nm, 12A (continuous) at 236RPM 90 days
MPP26-WL-018V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 18:1 ratio, manual release brake, encoder, left-hand output shaft, 81 Nm, 100A (peak), 22 Nm, 30A (15min), 7 Nm, 12A (continuous) at 218RPM 2 days
MPP26-WL-020V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 20:1 ratio, manual release brake, encoder, left-hand output shaft, 88 Nm, 100A (peak), 24 Nm, 30A (15min), 7 Nm, 12A (continuous) at 201RPM 90 days
MPP26-WL-022V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 22:1 ratio, manual release brake, encoder, left-hand output shaft, 96 Nm, 100A (peak), 26 Nm, 30A (15min), 8 Nm, 12A (continuous) at 185RPM 2 days
MPP26-WL-024V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 24:1 ratio, manual release brake, encoder, left-hand output shaft, 105 Nm, 100A (peak), 28 Nm, 30A (15min), 9 Nm, 12A (continuous) at 169RPM 90 days
MPP26-WL-025V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 25:1 ratio, manual release brake, encoder, left-hand output shaft, 112 Nm, 100A (peak), 30 Nm, 30A (15min), 9 Nm, 12A (continuous) at 157RPM 2 days
MPP26-WL-028V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 28:1 ratio, manual release brake, encoder, left-hand output shaft, 122 Nm, 100A (peak), 33 Nm, 30A (15min), 10 Nm, 12A (continuous) at 145RPM 90 days
MPP26-WL-030V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 30:1 ratio, manual release brake, encoder, left-hand output shaft, 133 Nm, 100A (peak), 36 Nm, 30A (15min), 11 Nm, 12A (continuous) at 133RPM 2 days
MPP26-WL-033V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 33:1 ratio, manual release brake, encoder, left-hand output shaft, 145 Nm, 100A (peak), 39 Nm, 30A (15min), 11 Nm, 12A (continuous) at 122RPM 90 days
MPP26-WR-017V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 17:1 ratio, manual release brake, encoder, right-hand output shaft, 75 Nm, 100A (peak), 20 Nm, 30A (15min), 6 Nm, 12A (continuous) at 236RPM 90 days
MPP26-WR-018V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 18:1 ratio, manual release brake, encoder, right-hand output shaft, 81 Nm, 100A (peak), 22 Nm, 30A (15min), 7 Nm, 12A (continuous) at 218RPM 2 days
MPP26-WR-020V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 20:1 ratio, manual release brake, encoder, right-hand output shaft, 88 Nm, 100A (peak), 24 Nm, 30A (15min), 7 Nm, 12A (continuous) at 201RPM 90 days
MPP26-WR-022V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 22:1 ratio, manual release brake, encoder, right-hand output shaft, 96 Nm, 100A (peak), 26 Nm, 30A (15min), 8 Nm, 12A (continuous) at 185RPM 2 days
MPP26-WR-024V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 24:1 ratio, manual release brake, encoder, right-hand output shaft, 105 Nm, 100A (peak), 28 Nm, 30A (15min), 9 Nm, 12A (continuous) at 169RPM 90 days
MPP26-WR-025V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 25:1 ratio, manual release brake, encoder, right-hand output shaft, 112 Nm, 100A (peak), 30 Nm, 30A (15min), 9 Nm, 12A (continuous) at 157RPM 2 days
MPP26-WR-028V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 28:1 ratio, manual release brake, encoder, right-hand output shaft, 122 Nm, 100A (peak), 33 Nm, 30A (15min), 10 Nm, 12A (continuous) at 145RPM 90 days
MPP26-WR-030V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 30:1 ratio, manual release brake, encoder, right-hand output shaft, 133 Nm, 100A (peak), 36 Nm, 30A (15min), 11 Nm, 12A (continuous) at 133RPM 2 days
MPP26-WR-033V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 33:1 ratio, manual release brake, encoder, right-hand output shaft, 145 Nm, 100A (peak), 39 Nm, 30A (15min), 11 Nm, 12A (continuous) at 122RPM 90 days

Asia

Part Number Description Typical Lead Time
MPP26-WL-017V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 17:1 ratio, manual release brake, encoder, left-hand output shaft, 75 Nm, 100A (peak), 20 Nm, 30A (15min), 6 Nm, 12A (continuous) at 236RPM 30 days
MPP26-WL-018V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 18:1 ratio, manual release brake, encoder, left-hand output shaft, 81 Nm, 100A (peak), 22 Nm, 30A (15min), 7 Nm, 12A (continuous) at 218RPM 2 days
MPP26-WL-020V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 20:1 ratio, manual release brake, encoder, left-hand output shaft, 88 Nm, 100A (peak), 24 Nm, 30A (15min), 7 Nm, 12A (continuous) at 201RPM 30 days
MPP26-WL-022V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 22:1 ratio, manual release brake, encoder, left-hand output shaft, 96 Nm, 100A (peak), 26 Nm, 30A (15min), 8 Nm, 12A (continuous) at 185RPM 2 days
MPP26-WL-024V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 24:1 ratio, manual release brake, encoder, left-hand output shaft, 105 Nm, 100A (peak), 28 Nm, 30A (15min), 9 Nm, 12A (continuous) at 169RPM 30 days
MPP26-WL-025V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 25:1 ratio, manual release brake, encoder, left-hand output shaft, 112 Nm, 100A (peak), 30 Nm, 30A (15min), 9 Nm, 12A (continuous) at 157RPM 2 days
MPP26-WL-028V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 28:1 ratio, manual release brake, encoder, left-hand output shaft, 122 Nm, 100A (peak), 33 Nm, 30A (15min), 10 Nm, 12A (continuous) at 145RPM 30 days
MPP26-WL-030V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 30:1 ratio, manual release brake, encoder, left-hand output shaft, 133 Nm, 100A (peak), 36 Nm, 30A (15min), 11 Nm, 12A (continuous) at 133RPM 2 days
MPP26-WL-033V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 33:1 ratio, manual release brake, encoder, left-hand output shaft, 145 Nm, 100A (peak), 39 Nm, 30A (15min), 11 Nm, 12A (continuous) at 122RPM 30 days
MPP26-WR-017V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 17:1 ratio, manual release brake, encoder, right-hand output shaft, 75 Nm, 100A (peak), 20 Nm, 30A (15min), 6 Nm, 12A (continuous) at 236RPM 30 days
MPP26-WR-018V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 18:1 ratio, manual release brake, encoder, right-hand output shaft, 81 Nm, 100A (peak), 22 Nm, 30A (15min), 7 Nm, 12A (continuous) at 218RPM 2 days
MPP26-WR-020V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 20:1 ratio, manual release brake, encoder, right-hand output shaft, 88 Nm, 100A (peak), 24 Nm, 30A (15min), 7 Nm, 12A (continuous) at 201RPM 30 days
MPP26-WR-022V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 22:1 ratio, manual release brake, encoder, right-hand output shaft, 96 Nm, 100A (peak), 26 Nm, 30A (15min), 8 Nm, 12A (continuous) at 185RPM 2 days
MPP26-WR-024V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 24:1 ratio, manual release brake, encoder, right-hand output shaft, 105 Nm, 100A (peak), 28 Nm, 30A (15min), 9 Nm, 12A (continuous) at 169RPM 30 days
MPP26-WR-025V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 25:1 ratio, manual release brake, encoder, right-hand output shaft, 112 Nm, 100A (peak), 30 Nm, 30A (15min), 9 Nm, 12A (continuous) at 157RPM 2 days
MPP26-WR-028V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 28:1 ratio, manual release brake, encoder, right-hand output shaft, 122 Nm, 100A (peak), 33 Nm, 30A (15min), 10 Nm, 12A (continuous) at 145RPM 30 days
MPP26-WR-030V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 30:1 ratio, manual release brake, encoder, right-hand output shaft, 133 Nm, 100A (peak), 36 Nm, 30A (15min), 11 Nm, 12A (continuous) at 133RPM 2 days
MPP26-WR-033V24-220-D 93mm PMDC Right-Angle Gear Motor, Heavy Duty, 24VDC, 33:1 ratio, manual release brake, encoder, right-hand output shaft, 145 Nm, 100A (peak), 39 Nm, 30A (15min), 11 Nm, 12A (continuous) at 122RPM 30 days
