APPD15 PMDC Type Linear Actuator
AxialPower™ Plus Series

Summary Details

Technology: PMDC
Size: 1.5 inches or 3.8 cm
Torque: to 15 oz-in or 10.6 Ncm

Simple. Forceful.
This 1.5-in PMDC linear actuator is one of ElectroCraft’s innovative permanent magnet DC motor designs available in both a linear actuator with axial leadscrew or a leadscrew motor with rotating leadscrew. This DC motor does not require expensive motor drives. Performance is proportional to input voltage and can be tuned by regulating input voltage.

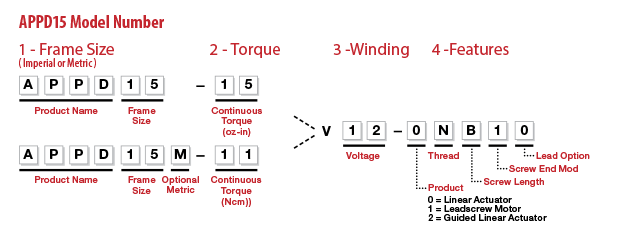

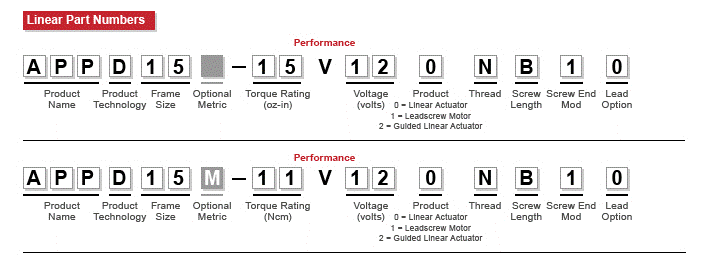

Additional Product Details

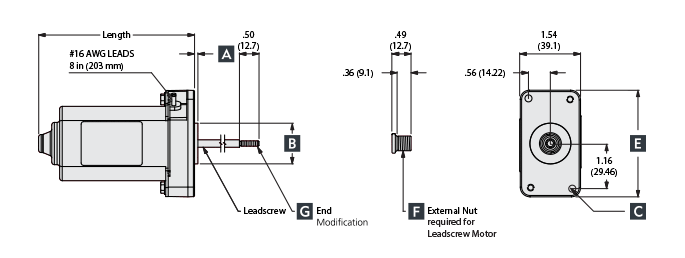

APPD15 Outline Drawing

Model Length Weight Peak
Torque
Constant
Stall
Torque
A B C D E F G
Pilot
Length
Pilot
Diameter
Mount Hole
Callout
Mount
Hole
Spacing
External
Flange
Dimension
External
Nut Thread
Screw End
Mod
APPD15 3.99 in 22.4 oz 45 oz-in 10 oz-in 0.08 in 1.05
±0.01 in
0.180 in dia
#8-32 tapped
see
diagram
2.74 x 1.54 in 3/8-40
UNS-2A
6-32 UNC
0.098/0.097 in
dia Journal
APPD15M 101.2 mm 0.63 kg 32 Ncm 7 Ncm 2 mm 26.67
±0.25 mm
4.57 mm dia
M4X0.7 tapped
see
diagram
69.6 x 39.1 mm M10x7.5 M2.4x0.45
2.5 mm
dia Journal

APPD15 Speed / Force Curves


APPD15 Mechanical / Winding Data

Stack Size Models APPD15- 15V
Holding Torque Bi-Polar (oz-in) 15.0
Holding Torque Bi-Polar (Ncm) 10.59
Holding Torque Uni-Polar (oz-in) 15.0
Holding Torque Uni-Polar (Ncm) 10.59
Length (inches) 4.0
Length (cm) 10.1
Width (inches) 2.7
Width (cm) 6.9
Weight (oz) 22.4
Weight (Kg) 0.6
Number Leads 2

APPD15 Bi-Polar Windings
Winding Models APPD15- 15V120
Current (A/Phase) 0.0
Voltage (V/Phase) 12.0
Resistance (R/Phase) 0.0
Inductance (mH) 0.0
Constant Rated Current (A) 2.5
Stall Current (A) 4.2
Voltage Constant (V/kRPM) 3.2
Torque Constant (oz.in/A) 4.3
Torque Constant (Ncm/A) 3.0

APPD15 Leadscrew Options

Thread
Designation
Thread
Description
(# starts)
Max Travel
Speed
(in/sec)
Max Force
Output
(lbf)
Max Current
Draw
N 10-32UNF-2A 0.8 65.0 4.2
P 10-32UN-(4 Start) 3.0 40.0 4.2
R 10-32UN-(2 Start) 1.6 50.0 4.2
