APPS11M Stepper Linear Actuator
AxialPower™ Plus Series
![APPS11M Hybrid Stepper Linear Actuator](/img/products/linearactuator/pic_apps11m.jpg)
Summary Details
Technology: StepperSize: NEMA 11
Force: 58 N (13 lbs.) to 151 N (34 lbs.)
![APPS11M Thumbnail 1](/img/products/linearactuator/pic_apps11m.jpg)
![APPS11M Thumbnail 2](/img/products/linearactuator/pic_apps11m_2b.jpg)
![APPS11M Thumbnail 3](/img/products/linearactuator/pic_apps11m_3.jpg)
The APPS11M is a 28mm / NEMA 11 frame, hybrid stepper-based actuator. The APPS11M is available in standard or custom designs as a linear actuator (non-captive), leadscrew motor (external linear), or guided linear actuator (captive). A variety of resolutions are offered, ranging from 0.006 to 0.016 mm per step, with an output force of up to 151 N (34 lbs.)

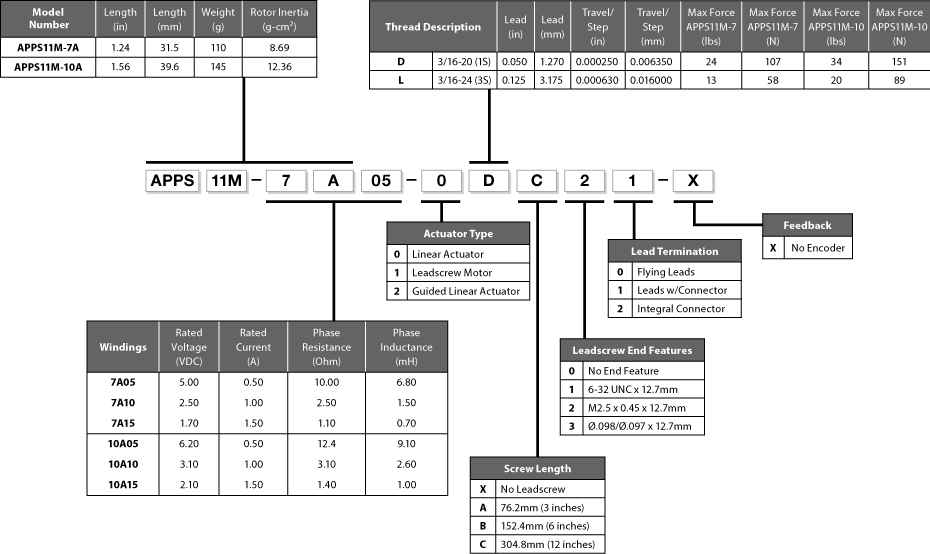

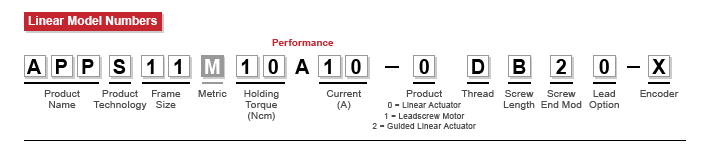

APPS11M Model Number Example
![APPS11M Model Number Example](/img/products/linearactuator/legend_apps11m.png)
Additional Product Details

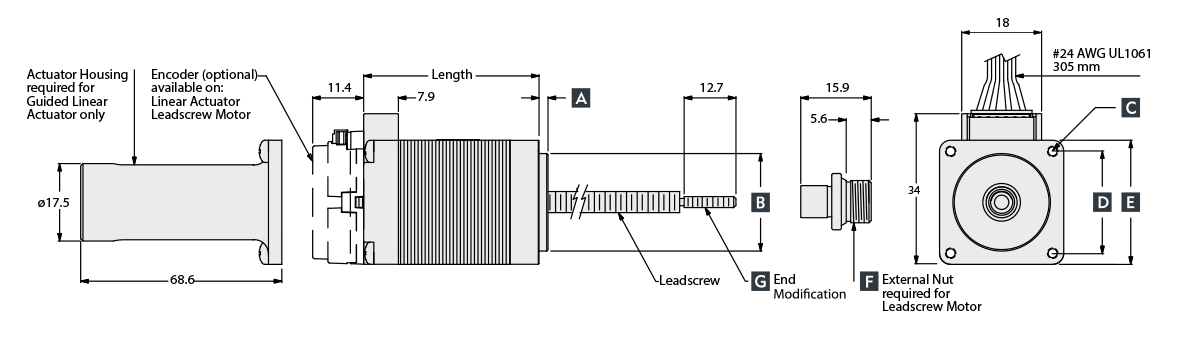

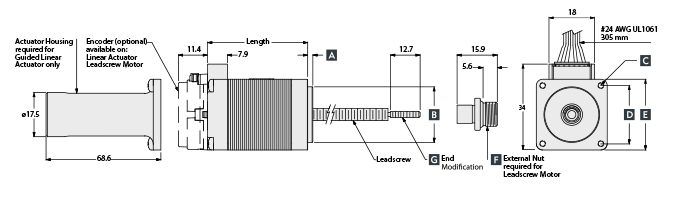

APPS11M Outline Drawing
Model | A | B | C | D | E | F | G |
---|---|---|---|---|---|---|---|
Pilot Length |
Pilot Diameter |
Mount Hole Callout |
Mount Hole Spacing |
External Flange Dimension |
External Nut Thread |
Screw End Mod |
|
APPS11M-7 | 2.0 mm | 22.00 +0.00 / -0.03 mm |
M2.5 x 0.45 mm dia 3.5 mm Deep |
23 mm | 28 mm | M10 x 1.0 |
6-32 UNF M2.4 x 0.45 0.098 / 0.097 in (2.5 mm) Dia Journal |
APPS11M-10 |
![Technical Drawings](/img/products/linearactuator/drawing_apps11m_large.png)
APPS11M Speed / Force Curves

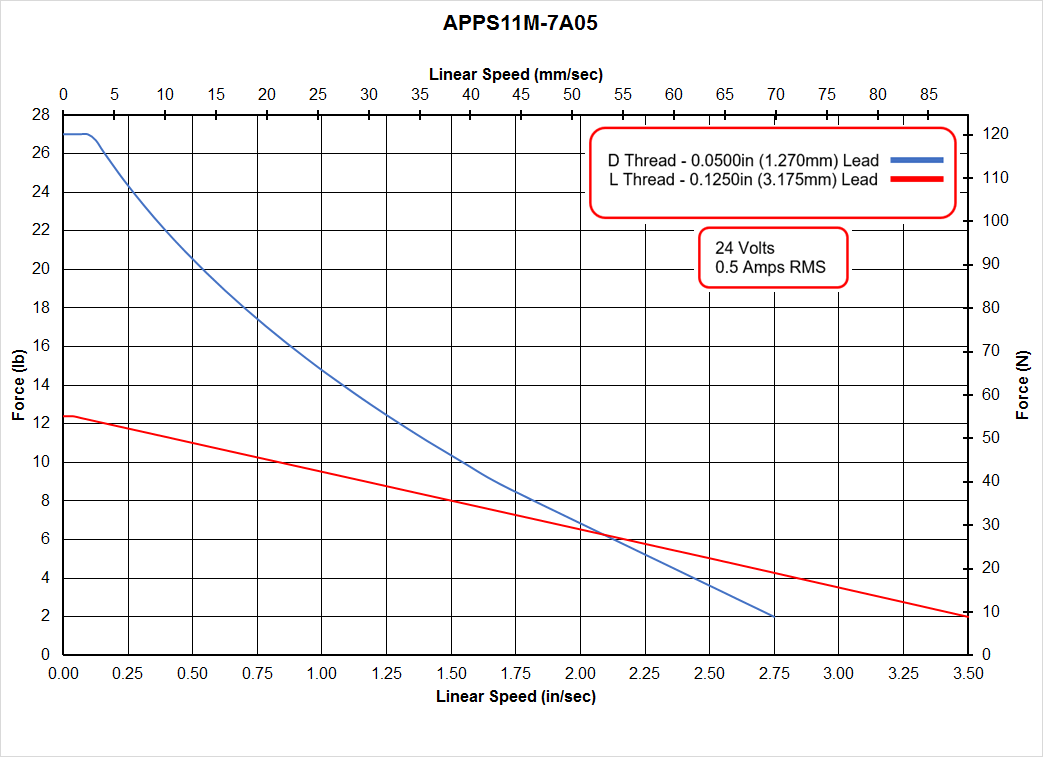

![APPS11M-07A05 Speed - Force Curve](/img/products/linearactuator/curves_apps11m-07A05.png)
![APPS11M-07A10 Speed - Force Curve](/img/products/linearactuator/curves_apps11m-07A10.png)
![APPS11M-07A15 Speed - Force Curve](/img/products/linearactuator/curves_apps11m-07A15.png)
![APPS11M-10A05 Speed - Force Curve](/img/products/linearactuator/curves_apps11m-10A05.png)

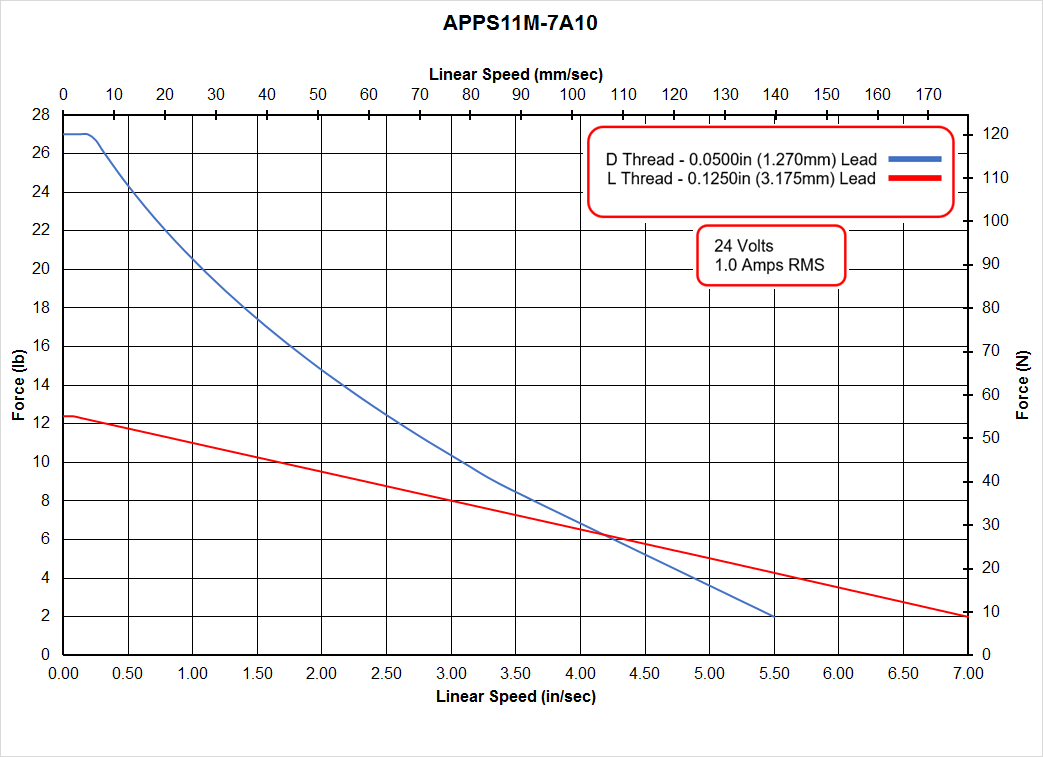

![APPS11M-10A10 Speed - Force Curve](/img/products/linearactuator/curves_apps11m-10A10.png)

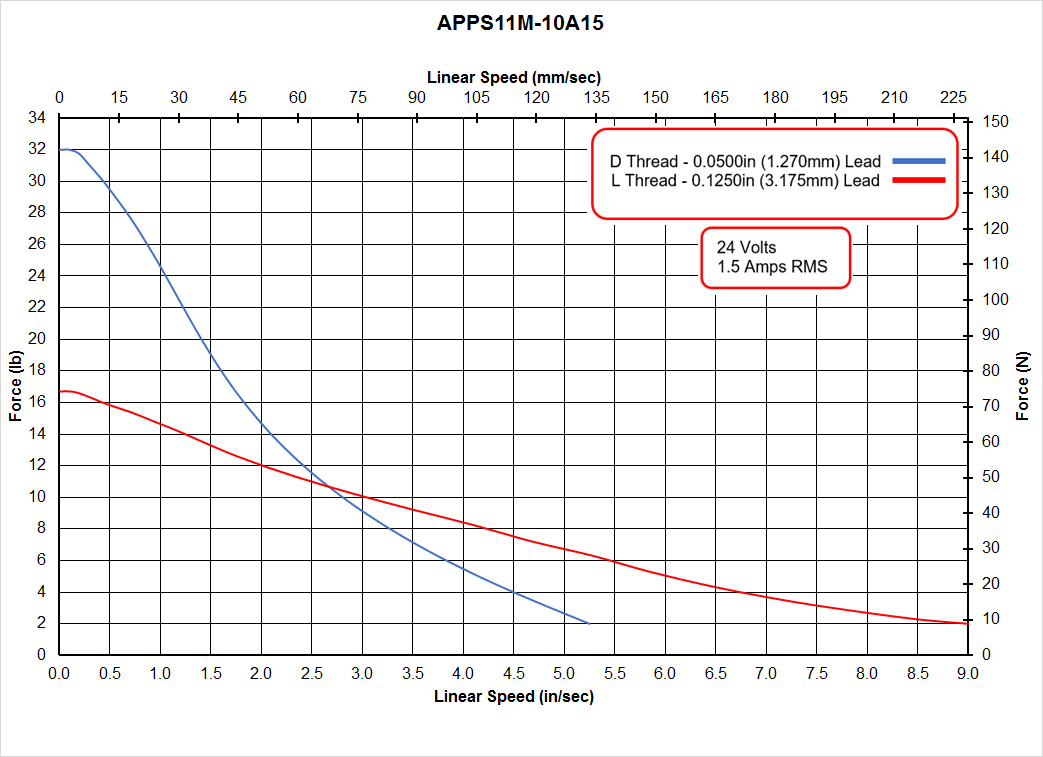

![APPS11M-10A15 Speed - Force Curve](/img/products/linearactuator/curves_apps11m-10A15.png)

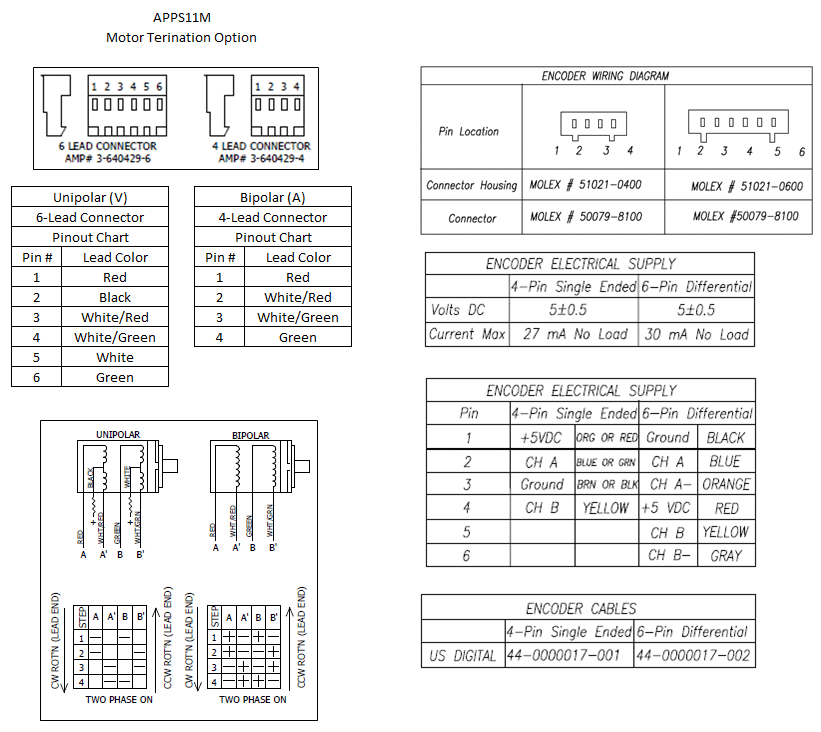

APPS11M Connection
![hall diagram](/img/products/linearactuator/connect_apps11m.png)
APPS11M CAD
Drive Compatibility
Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
---|---|---|---|---|---|---|---|
Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
APPS11M-7A05 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
APPS11M-7A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
APPS11M-7A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
APPS11M-10A05 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
APPS11M-10A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
APPS11M-10A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A |
ElectroCraft Rapid Delivery Program
Some versions of this product are available via ElectroCraft's Rapid Delivery Program. Lead times for these products are given in working days and stated below. Please note, these lead times may be exceeded during holiday periods or due to unforeseen circumstances. Always contact your local ElectroCraft representative for confirmation of availability.
Rapid delivery products are stocked in locations all over the World. If the product you require is not stocked in your region, you may request accelerated delivery from other areas. Please consult your local representative for more information.
Customers are responsible for all freight charges.
Rapid Delivery to:
Select the region where the product would be delivered to.
The Americas - View Cart
Part Number | Description | Add to Cart |
---|---|---|
APPS11M-10A15-0DB20-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 13.7 oz-in holding torque, 1.5A/Phase, 3/16"-20 ACME (1-start), 0.05" lead | Buy Now |
APPS11M-7A15-0DB20-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 9.5 oz-in holding torque, 1.5A/Phase, 3/16"-20 ACME (1-start), 0.05" lead | Buy Now |
Europe, the Middle East and Africa
Part Number | Description | Typical Lead Time |
---|---|---|
APPS11M-10A15-0DB20-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 13.7 oz-in holding torque, 1.5A/Phase, 3/16"-20 ACME (1-start), 0.05" lead | 2 days |
Asia
Part Number | Description | Typical Lead Time |
---|---|---|
APPS11M-10A15-0DB20-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 13.7 oz-in holding torque, 1.5A/Phase, 3/16"-20 ACME (1-start), 0.05" lead | 2 days |
APPS11M-7A15-0DB20-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 9.5 oz-in holding torque, 1.5A/Phase, 3/16"-20 ACME (1-start), 0.05" lead | 2 days |
