APES17 Stepper Linear Actuator
AxialPower™ Enhanced Series

APES17 Hybrid Stepper Linear Actuator

Summary Details

Technology: Stepper
Size: NEMA 17
Force: 107 N (24 lbs.) to 1001 N (225 lbs.)

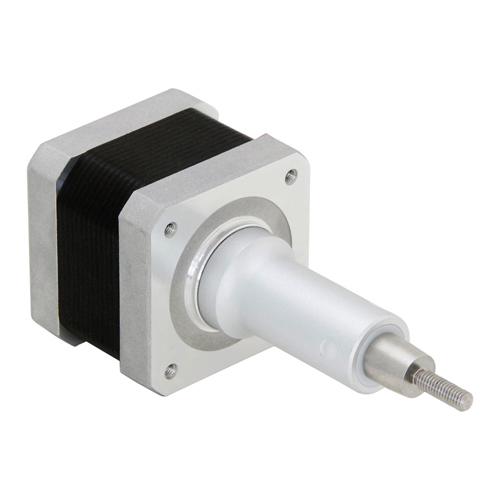

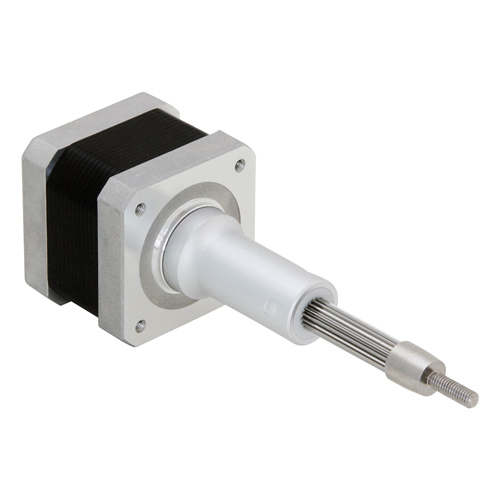

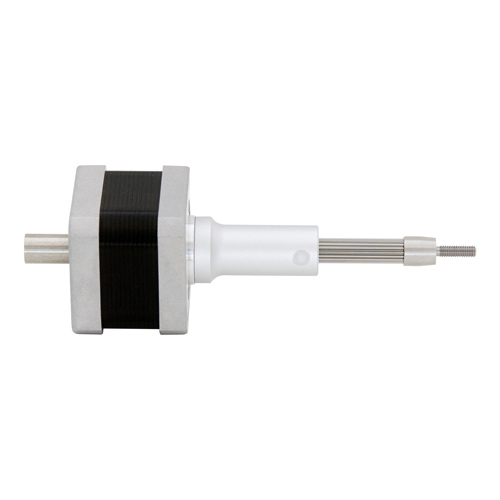

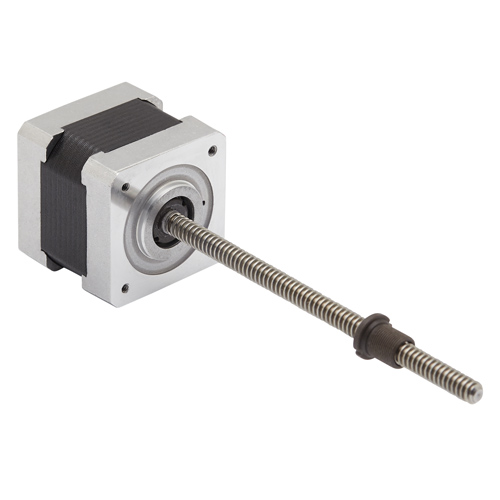

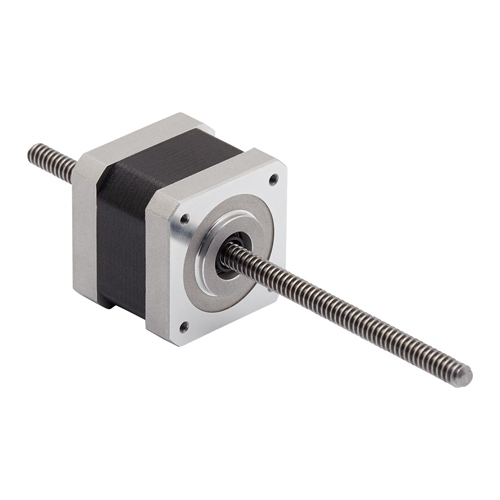

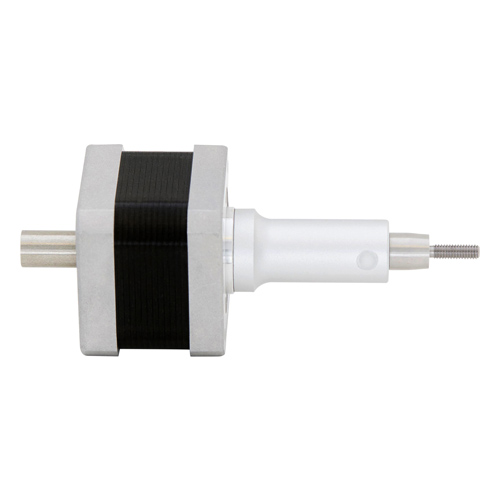

APES17 Thumbnail 1
APES17 Thumbnail 2
APES17 Thumbnail 3
APES17 Thumbnail 4
APES17 Thumbnail 5
APES17 Thumbnail 6
Buy Now

Complete Motion Solution

For a complete motion solution, the APES17 is compatible with ElectroCraft's Universal and PRO Series drives.

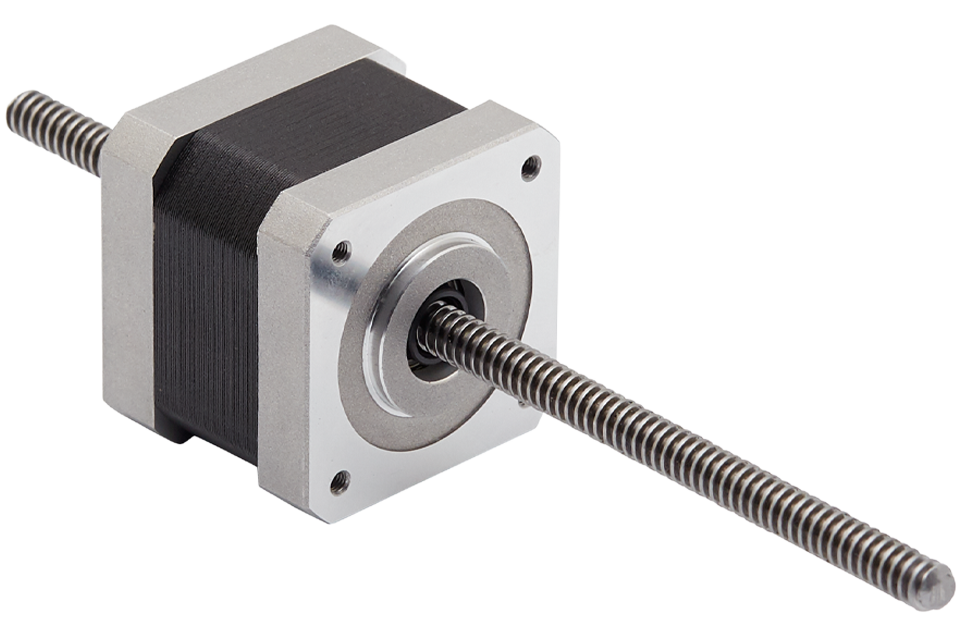

The APES17 is a 42mm / NEMA 17 frame, hybrid stepper-based actuator. The APES17 is available in standard or custom designs as a linear actuator (non-captive), leadscrew motor (external linear), or guided linear actuator (captive). A variety of resolutions are offered, ranging from 0.006 to 0.050 mm per step, with an output force of up to 1001 N (225 lbs.) ElectroCraft's unique motor, shaft and insert designs offer industry-leading output force per frame size while providing superior precision, speed and efficiency.

APES17 Model Number Example

APES17 Model Number Example

Additional Product Details

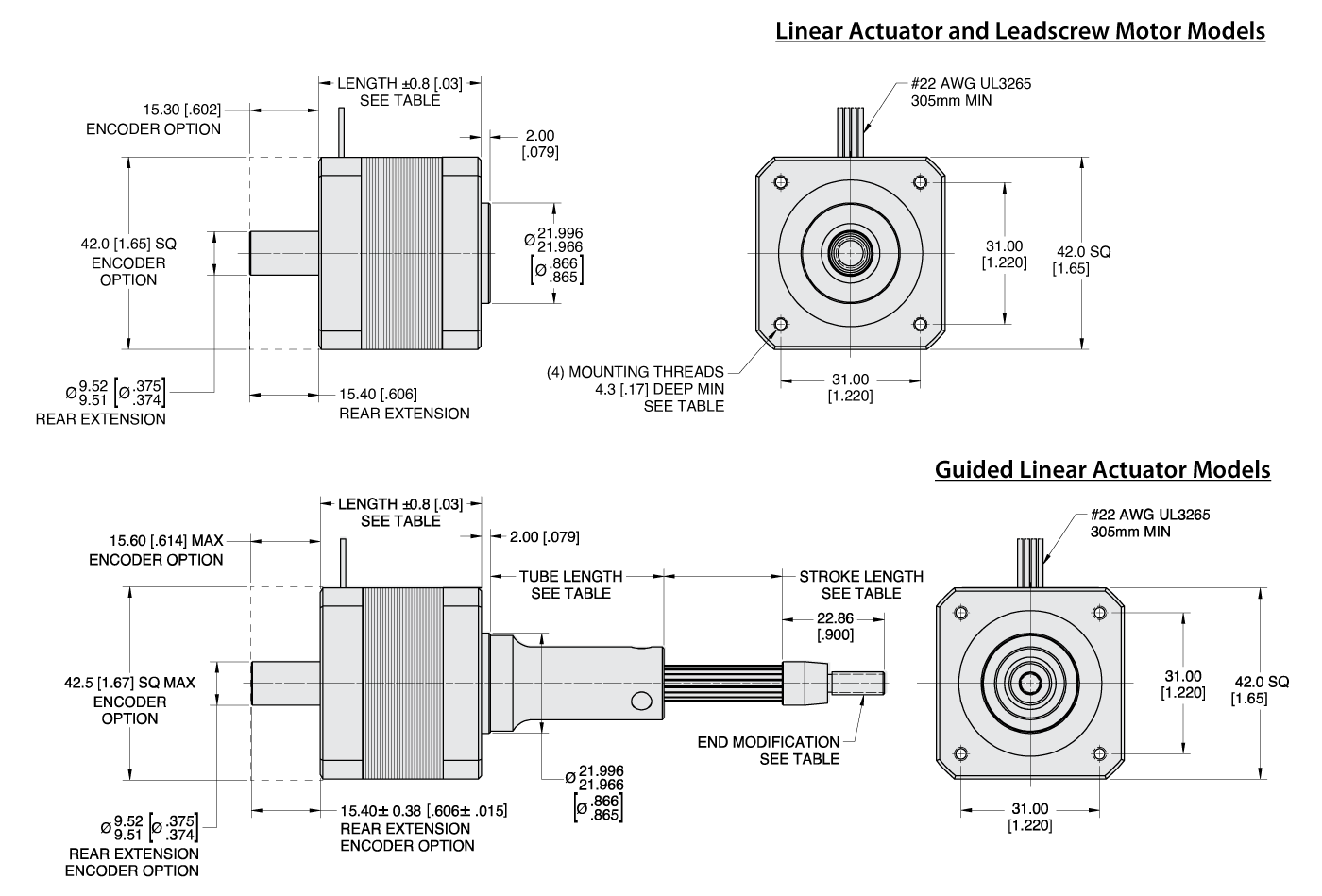

Outline Drawing

Stepper Motor Dimensions Linear Actuator and Leadscrew Motor Models Guided Linear Actuator Models
Model Number Motor Length Motor Mounting Threads Leadscrew Lengths Tube Lengths Stroke Lengths
APES17(M)-45A 1.42 inch
(36.1 mm)
4-40 UNC-2B
(M3 x 0.5 - 6H)
X = no leadscrew
A = 3.0 inch (76.2 mm)
B = 6.0 inch (152.4 mm)
C = 12.0 inch (304.8 mm)
D = 18.0 inch (457.2 mm)
E = 24.0 inch (609.6 mm)
G = 1.028 inch (26.10mm)
H = 1.528 inch (38.80 mm)
J = 2.528 inch (64.20 mm)
K = 3.528 inch (89.60 mm)
G = 0.5 inch (12.7 mm)
H = 1.0 inch (25.4 mm)
J = 2.0 inch (50.8 mm)
K = 3.0 inch (76.2 mm)
APES17(M)-63A 1.62 inch
(41.1 mm)
APES17(M)-78A 1.93 inch
(49.1 mm)
Technical Drawings

Speed / Force Curves

APES17-45A10 Speed - Force Curve APES17-45A15 Speed - Force Curve APES17-45A20 Speed - Force Curve APES17-63A10 Speed - Force Curve APES17-63A15 Speed - Force Curve APES17-63A20 Speed - Force Curve APES17-78A10 Speed - Force Curve APES17-78A15 Speed - Force Curve APES17-78A20 Speed - Force Curve

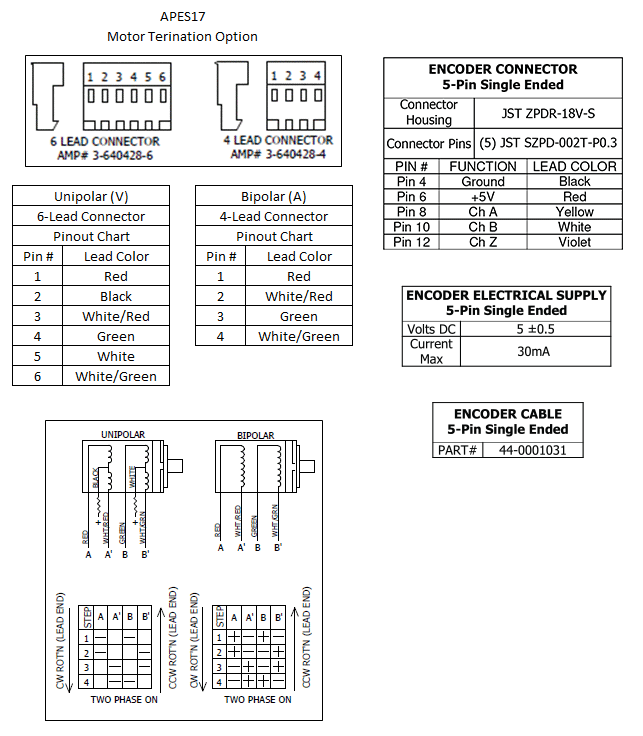

Connection

hall diagram

Downloads

Guided Linear Actuator (captive) Models



Linear Actuator (non-captive) and Leadscrew Motor (external linear) Models

Drive Compatibility

Motor P/N Cont Stall
Current
(ARMS)
Peak
Current
(ARMS)
Voltage Drive Model
Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
APES17-45A10 APES17M-45A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-45A15 APES17M-45A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-45A20 APES17M-45A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-63A10 APES17M-63A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-63A15 APES17M-63A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-63A20 APES17M-63A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-78A10 APES17M-78A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-78A15 APES17M-78A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-78A20 APES17M-78A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A

ElectroCraft Rapid Delivery Program

Some versions of this product are available via ElectroCraft's Rapid Delivery Program. Lead times for these products are given in working days and stated below. Please note, these lead times may be exceeded during holiday periods or due to unforeseen circumstances. Always contact your local ElectroCraft representative for confirmation of availability.

Rapid delivery products are stocked in locations all over the World. If the product you require is not stocked in your region, you may request accelerated delivery from other areas. Please consult your local representative for more information.

Customers are responsible for all freight charges.

Rapid Delivery to:

Select the region where the product would be delivered to.

The Americas - View Cart

Part Number Description Add to Cart
APES17-45A20-0BB40-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 69 lbs linear force, 2.0A/Phase, 1/4-16 ACME (2-start), 0.0625" lead, 6" length, 0.1250" lead, 6" length Buy Now
APES17M-45A20-0MB50-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 632 N linear force, 2.0A/Phase, 6mm x 1.2mm (1-start), 1.2mm lead, 152.4mm length Buy Now
APES17M-78A20-0NB50-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 672 N linear force, 2.0A/Phase, 6mm x 1.2mm (2-start), 2.4mm lead, 152.4mm length Buy Now
APES17-78A20-0CB40-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 79 lbs linear force, 2.0A/Phase, 1/4-16 ACME (4-start). 0.125" lead, 6" length, 0.2500" lead, 6" length Buy Now
APES17-45A20-0BB40-K NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 69 lbs linear force, 2.0A/Phase, 1/4-16 ACME (2-start), 0.0625" lead, 6" length, with 1000 line encoder Buy Now
APES17M-45A20-0MB50-K NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 632 N linear force, 2.0A/Phase, 6mm x 1.2mm (1-start), 1.2mm lead, 152.4mm length, with 1000 line encoder Buy Now
APES17M-45A20-2MH40-Y NEMA 17 Stepper-based guided (captive) linear actuator, 1.8 degree step angle, bi-polar windings, 632 N linear force, 2.0A/Phase, 6mm x 1.2mm (1-start), 1.2mm lead, with rear extension Buy Now
APES17M-78A20-2NH40-Y NEMA 17 Stepper-based guided (captive) linear actuator, 1.8 degree step angle, bi-polar windings, 672 N linear force, 2.0A/Phase, 6mm x 1.2mm (2-start), 2.4mm lead, with rear extension Buy Now

Europe, the Middle East and Africa

Part Number Description Typical Lead Time
APES17-45A20-0BB40-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 69 lbs linear force, 2.0A/Phase, 1/4-16 ACME (2-start), 0.0625" lead, 6" length, 0.1250" lead, 6" length 2 days
APES17M-45A20-0MB50-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 632 N linear force, 2.0A/Phase, 6mm x 1.2mm (1-start), 1.2mm lead, 152.4mm length 2 days
APES17M-78A20-0NB50-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 672 N linear force, 2.0A/Phase, 6mm x 1.2mm (2-start), 2.4mm lead, 152.4mm length 2 days
APES17-78A20-0CB40-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 79 lbs linear force, 2.0A/Phase, 1/4-16 ACME (4-start). 0.125" lead, 6" length, 0.2500" lead, 6" length 2 days
APES17-45A20-0BB40-K NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 69 lbs linear force, 2.0A/Phase, 1/4-16 ACME (2-start), 0.0625" lead, 6" length, with 1000 line encoder 2 days
APES17M-45A20-0MB50-K NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 632 N linear force, 2.0A/Phase, 6mm x 1.2mm (1-start), 1.2mm lead, 152.4mm length, with 1000 line encoder 2 days
APES17M-45A20-2MH40-Y NEMA 17 Stepper-based guided (captive) linear actuator, 1.8 degree step angle, bi-polar windings, 632 N linear force, 2.0A/Phase, 6mm x 1.2mm (1-start), 1.2mm lead, with rear extension 2 days
APES17M-78A20-2NH40-Y NEMA 17 Stepper-based guided (captive) linear actuator, 1.8 degree step angle, bi-polar windings, 672 N linear force, 2.0A/Phase, 6mm x 1.2mm (2-start), 2.4mm lead, with rear extension 2 days

Asia

Part Number Description Typical Lead Time
APES17-45A20-0BB40-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 69 lbs linear force, 2.0A/Phase, 1/4-16 ACME (2-start), 0.0625" lead, 6" length, 0.1250" lead, 6" length 2 days
APES17M-45A20-0MB50-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 632 N linear force, 2.0A/Phase, 6mm x 1.2mm (1-start), 1.2mm lead, 152.4mm length 2 days
APES17M-78A20-0NB50-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 672 N linear force, 2.0A/Phase, 6mm x 1.2mm (2-start), 2.4mm lead, 152.4mm length 2 days
APES17-78A20-0CB40-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 79 lbs linear force, 2.0A/Phase, 1/4-16 ACME (4-start). 0.125" lead, 6" length, 0.2500" lead, 6" length 2 days
APES17-45A20-0BB40-K NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 69 lbs linear force, 2.0A/Phase, 1/4-16 ACME (2-start), 0.0625" lead, 6" length, with 1000 line encoder 2 days
APES17M-45A20-0MB50-K NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 632 N linear force, 2.0A/Phase, 6mm x 1.2mm (1-start), 1.2mm lead, 152.4mm length, with 1000 line encoder 2 days
APES17M-45A20-2MH40-Y NEMA 17 Stepper-based guided (captive) linear actuator, 1.8 degree step angle, bi-polar windings, 632 N linear force, 2.0A/Phase, 6mm x 1.2mm (1-start), 1.2mm lead, with rear extension 2 days
APES17M-78A20-2NH40-Y NEMA 17 Stepper-based guided (captive) linear actuator, 1.8 degree step angle, bi-polar windings, 672 N linear force, 2.0A/Phase, 6mm x 1.2mm (2-start), 2.4mm lead, with rear extension 2 days
