APES23 Stepper Linear Actuator
AxialPower™ Enhanced Series

APES23 Hybrid Stepper Motor Actuator

Summary Details

Technology: Stepper
Size: NEMA 23
Force: 267 N (60 lbs.) to 1779 N (400 lbs.)

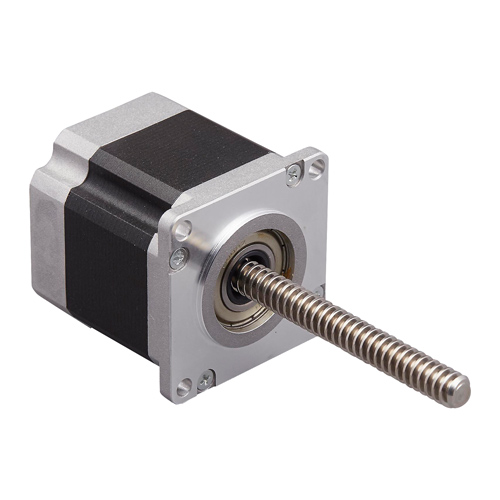

APES23 Thumbnail 1

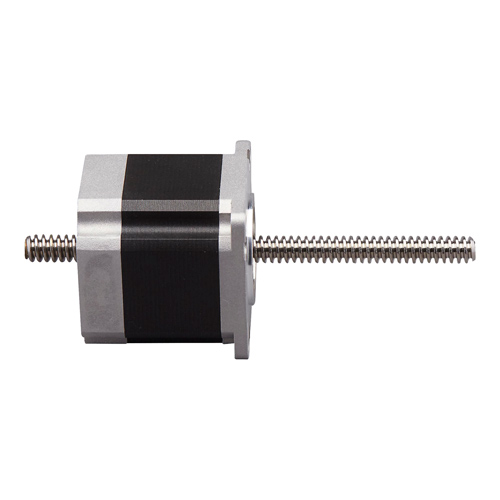

APES23 Thumbnail 2

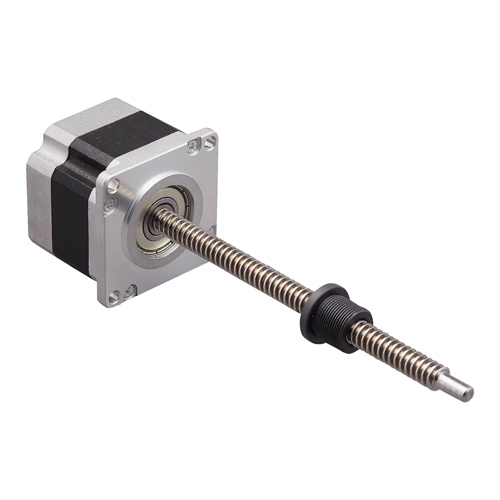

APES23 Thumbnail 3
APES23 Thumbnail 4
APES23 Thumbnail 5

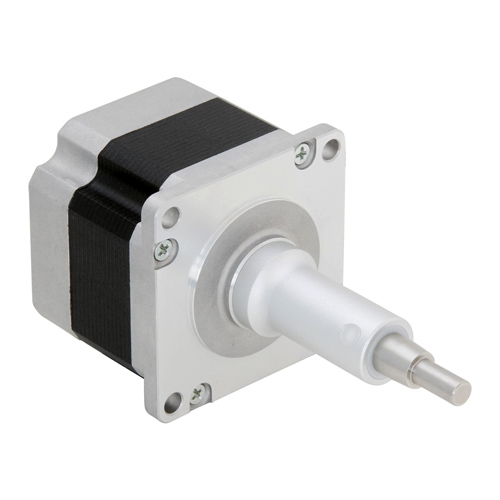

APES23 Thumbnail 6
APES23 Thumbnail 7
APES23 Thumbnail 8
Buy Now

Complete Motion Solution

For a complete motion solution, the APES23 is compatible with ElectroCraft's Universal and PRO Series drives.

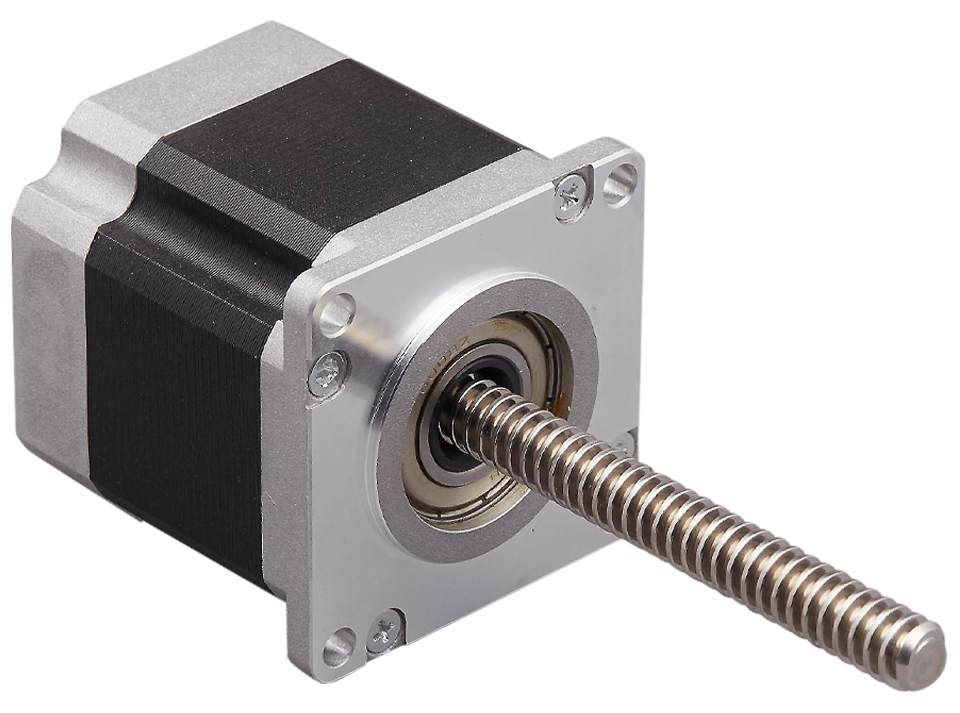

The APES23 is a 56mm / NEMA 23 frame, hybrid stepper linear actuator. The APES23 is available in standard or custom designs as a linear actuator (non-captive), leadscrew motor (external linear), or guided linear actuator (captive). A variety of resolutions are offered, ranging from 0.0127 to 0.0635 mm per step, with an output force of up to 1779 N (400 lbs.) ElectroCraft's unique motor, shaft and insert designs offer industry-leading output force per frame size while providing superior precision, speed and efficiency.

APES23 Model Number Example

APES23 Model Number Example

Additional Product Details

Outline Drawing

Stepper Motor Dimensions Linear Actuator and Leadscrew Motor Models Guided Linear Actuator Models
Model Number Motor Length Motor Mounting Threads Leadscrew Lengths Tube Lengths Stroke Lengths
APES23-100A 1.75 inch
(44.5 mm)
4-40 UNC-2B
(M3 x 0.5 - 6H)
X = no leadscrew
A = 3.0 inch (76.2 mm)
B = 6.0 inch (152.4 mm)
C = 12.0 inch (304.8 mm)
D = 18.0 inch (457.2 mm)
E = 24.0 inch (609.6 mm)
G = 1.028 inch (26.10mm)
H = 1.528 inch (38.80 mm)
J = 2.528 inch (64.20 mm)
K = 3.528 inch (89.60 mm)
G = 0.5 inch (12.7 mm)
H = 1.0 inch (25.4 mm)
J = 2.0 inch (50.8 mm)
K = 3.0 inch (76.2 mm)
APES23-166A 2.21 inch
(56 mm)
APES23-294A 3.08 inch
(78.2 mm)
Technical Drawings

Speed / Force Curves

APES23-100A10 Speed - Force Curve APES23-100A20 Speed - Force Curve APES23-100A30 Speed - Force Curve APES23-100A40 Speed - Force Curve APES23-166A10 Speed - Force Curve APES23-166A20 Speed - Force Curve APES23-166A30 Speed - Force Curve APES23-166A40 Speed - Force Curve APES23-294A10 Speed - Force Curve APES23-294A20 Speed - Force Curve APES23-294A30 Speed - Force Curve APES23-294A40 Speed - Force Curve

Connection

hall diagram

Downloads

Guided Linear Actuator (captive) Models



Linear Actuator (non-captive) and Leadscrew Motor (external linear) Models

Drive Compatibility

Motor P/N Cont Stall
Current
(ARMS)
Peak
Current
(ARMS)
Voltage Drive Model
Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
APES23-100A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-100A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-100A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
APES23-100A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
APES23-166A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-166A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-166A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
APES23-166A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
APES23-294A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-294A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-294A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
APES23-294A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A

ElectroCraft Rapid Delivery Program

Some versions of this product are available via ElectroCraft's Rapid Delivery Program. Lead times for these products are given in working days and stated below. Please note, these lead times may be exceeded during holiday periods or due to unforeseen circumstances. Always contact your local ElectroCraft representative for confirmation of availability.

Rapid delivery products are stocked in locations all over the World. If the product you require is not stocked in your region, you may request accelerated delivery from other areas. Please consult your local representative for more information.

Customers are responsible for all freight charges.

Rapid Delivery to:

Select the region where the product would be delivered to.

The Americas - View Cart

Part Number Description Add to Cart
APES23-100A30-0SB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 194 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), 0.1000" lead, 6" length Buy Now
APES23-100A30-0SB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 194 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), with 1000 line encoder, 0.1000" lead, 6" length, 1000 line single-ended optical encoder Buy Now
APES23-100A30-0WB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 129 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), 0.2000" lead, 6" length Buy Now
APES23-166A30-0WB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 170 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), with 1000 line encoder, 0.2000" lead, 6" length, 1000 line single-ended optical encoder Buy Now
APES23-166A30-0SB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 269 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), 0.1000" lead, 6" length Buy Now
APES23-166A30-0SB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 269 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), with 1000 line encoder, 0.1000" lead, 6" length, 1000 line single-ended optical encoder Buy Now
APES23-166A30-0WB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 170 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), 0.2000" lead, 6" length Buy Now
APES23-166A30-0WB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 170 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), with 1000 line encoder, 0.2000" lead, 6" length, 1000 line single-ended optical encoder Contact Sales
APES23-100A30-2SH90-Y NEMA 23 Guided (captive) stepper linear actuator, 1.8 degree step angle, bi-polar windings, 194 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), 0.1" lead, with rear extension Buy Now
APES23-100A30-2LH80-Y NEMA 23 Guided (captive) stepper linear actuator, 1.8 degree step angle, bi-polar windings, 694 N linear force, 3.0A/Phase, 8mm x 2mm (2-start), 4mm lead, with rear extentsion Buy Now
APES23-100A30-0WB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 129 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), with 1000 line encoder, 0.2000" lead, 6" length, 1000 line single-ended optical encoder Buy Now

Europe, the Middle East and Africa

Part Number Description Typical Lead Time
APES23-100A30-0SB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 194 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), 0.1000" lead, 6" length 2 days
APES23-100A30-0SB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 194 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), with 1000 line encoder, 0.1000" lead, 6" length, 1000 line single-ended optical encoder 2 days
APES23-100A30-0WB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 129 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), 0.2000" lead, 6" length 2 days
APES23-166A30-0WB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 170 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), with 1000 line encoder, 0.2000" lead, 6" length, 1000 line single-ended optical encoder 2 days
APES23-166A30-0SB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 269 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), 0.1000" lead, 6" length 2 days
APES23-166A30-0SB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 269 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), with 1000 line encoder, 0.1000" lead, 6" length, 1000 line single-ended optical encoder 2 days
APES23-166A30-0WB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 170 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), 0.2000" lead, 6" length 2 days
APES23-166A30-0WB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 170 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), with 1000 line encoder, 0.2000" lead, 6" length, 1000 line single-ended optical encoder 2 days
APES23-100A30-2SH90-Y NEMA 23 Guided (captive) stepper linear actuator, 1.8 degree step angle, bi-polar windings, 194 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), 0.1" lead, with rear extension 2 days
APES23-100A30-2LH80-Y NEMA 23 Guided (captive) stepper linear actuator, 1.8 degree step angle, bi-polar windings, 694 N linear force, 3.0A/Phase, 8mm x 2mm (2-start), 4mm lead, with rear extentsion 2 days
APES23-100A30-0WB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 129 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), with 1000 line encoder, 0.2000" lead, 6" length, 1000 line single-ended optical encoder 2 days

Asia

Part Number Description Typical Lead Time
APES23-100A30-0SB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 194 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), 0.1000" lead, 6" length 2 days
APES23-100A30-0SB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 194 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), with 1000 line encoder, 0.1000" lead, 6" length, 1000 line single-ended optical encoder 2 days
APES23-100A30-0WB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 129 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), 0.2000" lead, 6" length 2 days
APES23-166A30-0WB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 170 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), with 1000 line encoder, 0.2000" lead, 6" length, 1000 line single-ended optical encoder 2 days
APES23-166A30-0SB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 269 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), 0.1000" lead, 6" length 2 days
APES23-166A30-0SB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 269 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), with 1000 line encoder, 0.1000" lead, 6" length, 1000 line single-ended optical encoder 2 days
APES23-166A30-0WB00-X NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 170 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), 0.2000" lead, 6" length 2 days
APES23-166A30-0WB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 170 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), with 1000 line encoder, 0.2000" lead, 6" length, 1000 line single-ended optical encoder 2 days
APES23-100A30-2SH90-Y NEMA 23 Guided (captive) stepper linear actuator, 1.8 degree step angle, bi-polar windings, 194 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (1-start), 0.1" lead, with rear extension 2 days
APES23-100A30-2LH80-Y NEMA 23 Guided (captive) stepper linear actuator, 1.8 degree step angle, bi-polar windings, 694 N linear force, 3.0A/Phase, 8mm x 2mm (2-start), 4mm lead, with rear extentsion 2 days
APES23-100A30-0WB00-K NEMA 23 stepper linear actuator, 1.8 degree step angle, bi-polar windings, 129 lbs. linear force, 3.0A/Phase, 3/8-10 ACME (2-start), with 1000 line encoder, 0.2000" lead, 6" length, 1000 line single-ended optical encoder 2 days
