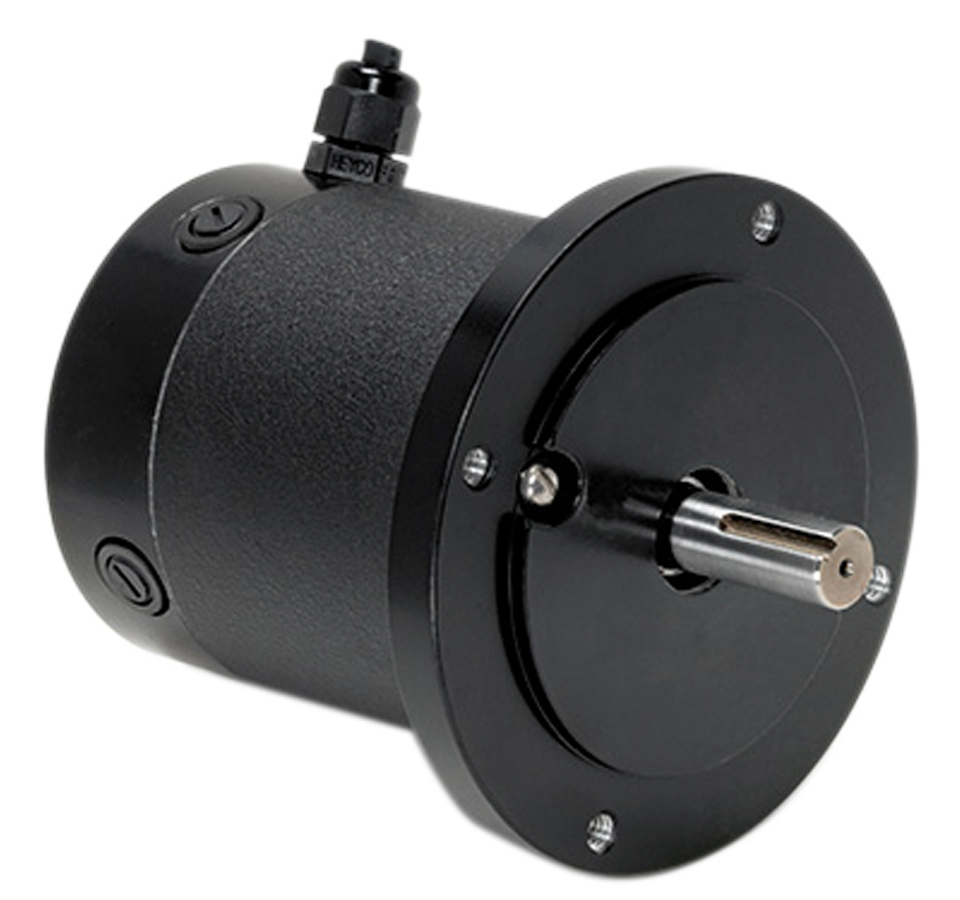

DPP700 Brush Motor
DirectPower™ Plus Series

Size: 4.00 inches or 102mm
Peak Torque: to 2000 oz-in or 1412 Ncm

Data Sheets

Data Sheet (US)

Complete Motion Solution

For a complete motion solution, the DPP700 is compatible with ElectroCraft's Universal and PRO Series drives.

High-Torque. Long life.
Our ElectroCraft DirectPower™ Plus 700 Series features a rugged, heavy-gauge steel housing construction for long-life and durability. This series offers high output for low to mid voltages, high torque applications. This high-efficiency motor includes dynamically balanced armatures, sealed ball bearings, and replaceable brushes.

Additional Product Details

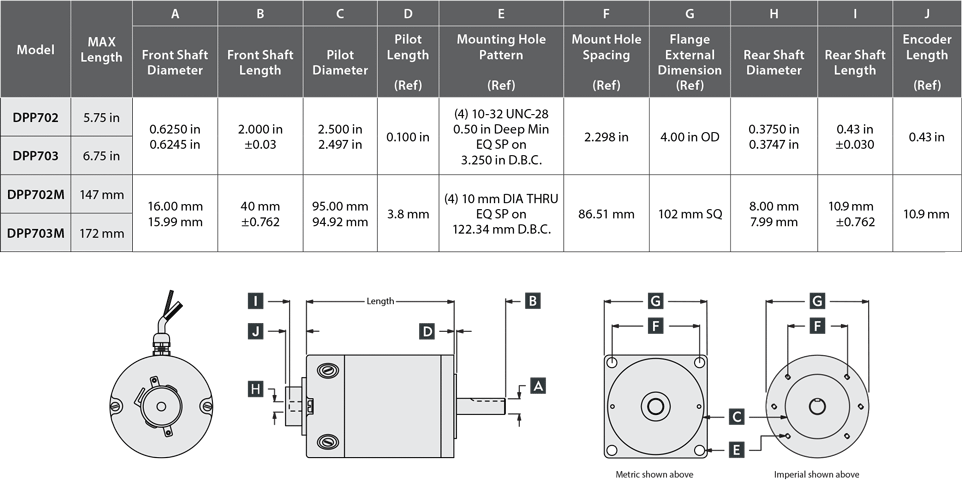

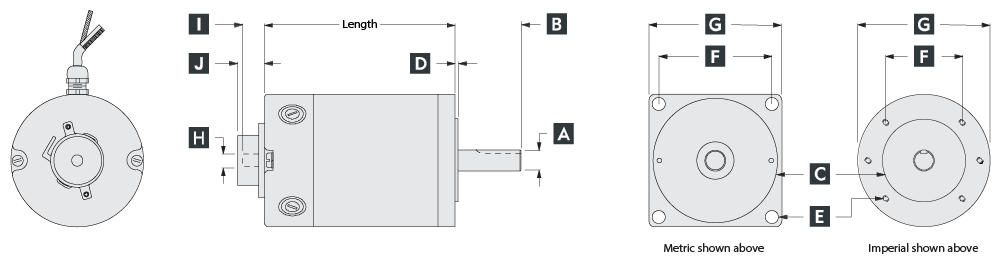

Outline Drawing

Specifications & Winding Data

Array Stack/Torque Sizes
Stack Size Models	DPP702-300	DPP703-410
Continuous Stall Torque (oz-in)	300	410
Continuous Stall Torque (Ncm)	211.83	289.50
Peak Torque (oz-in)	1350	2000
Peak Torque (Ncm)	953.24	1412.20
Rotor Inertia (oz-in-sec²)	0.1500	0.2000
Rotor Inertia (g-cm²)	10593.0	14124.0
Thermal Resistance (C / Watts)	1.6	1.3
Weight (lbs)	8.5	11.0
Weight (Kg)	3.9	4.99
Length (inches)	5.8	6.8
Length (cm)	14.7	17.3
Number of Poles	2	2

Array Winding Options
Winding Models	300V24	300V48	300V60	300V90	410V24	410V48	410V60	410V90
Design Voltage (VDC)	24	48	60	90	24	48	60	90
Continuous Current (Amps)	16	8	6	4	18	9	7	5
Peak Current (Amps)	90	53	44	29	90	56	45	30
Voltage Constant ±10% (VDC/kRPM)	9.1	18.7	23.0	34.4	13.7	26.5	32.9	49.3
Torque Constant ±10% (oz-in / Amp)	12.3	25.3	31.1	46.6	18.5	35.8	44.4	66.7
Torque Constant ±10% (Ncm / Amp)	8.686	17.866	21.961	32.907	13.064	25.280	31.353	47.101
Resistance ±10% (Ohms)	0.24	0.52	0.71	1.34	0.25	0.56	0.79	1.51
Inductance ±10% (mH)	0.4	1.8	2.7	6.1	0.7	2.4	3.7	8.4
Motor Constant (oz-in / √ Watt)	25.11	35.23	36.76	40.16	36.59	47.7	49.91	54.19
Motor Constant (Nm / √ Watt)	2.84	3.98	4.15	4.54	4.13	5.39	5.64	6.12
Electrical Constant (msec)	1.77	3.48	3.79	4.53	2.54	4.31	4.72	5.57
Mechanical Constant (msec)	33.69	17.11	15.72	13.17	21.16	12.44	11.37	9.64

Speed / Torque Curves

CAD

Drive Compatibility

Motor P/N		Cont Stall Current (ARMS)	Peak Current (ARMS)	Voltage	Drive Model
Imperial	Metric	Cont Stall Current (ARMS)	Peak Current (ARMS)	Voltage	PRO (-CAN)	PRO (-CAT)	CPP-Universal	CPP-EZ
DPP701-150V60	DPP701M-106V60	4.0	27.0	60	PRO-A20V80A	PRO-A20V80A	CPP-A24V80A
