SCO-B1-50 (60) Drives
CompletePower™ Series

Summary Details

Technology: Brushless, Speed Control
Quadrants: 2
Nominal Current: 18A or 40A

For BLDC Motors. Up to 2000W.
This two-quadrant brushless DC speed control is housed in a compact open-frame aluminum module which can be panel mounted for easy integration. The drive includes a control enable/disable, direction and set value inputs. Both the 18 A and the 40 A versions of this drive have an adjustable current limit and can be powered by the same 20 � 50 VDC range of supply voltage. The 18 A version of this drive is also available for supply voltages range from 30 - 60 VDC. The drive is protected against over-current and over-temperature and incorporates state of the art MOSFET technology for maximum efficiency. Connectivity is achieved with simple screw-terminals for control/feedback inputs, supply power and motor connections.

Silver Series - Available only for existing customers
This product is being phased out, and is currently only available to existing ElectroCraft customers.

Additional Product Details

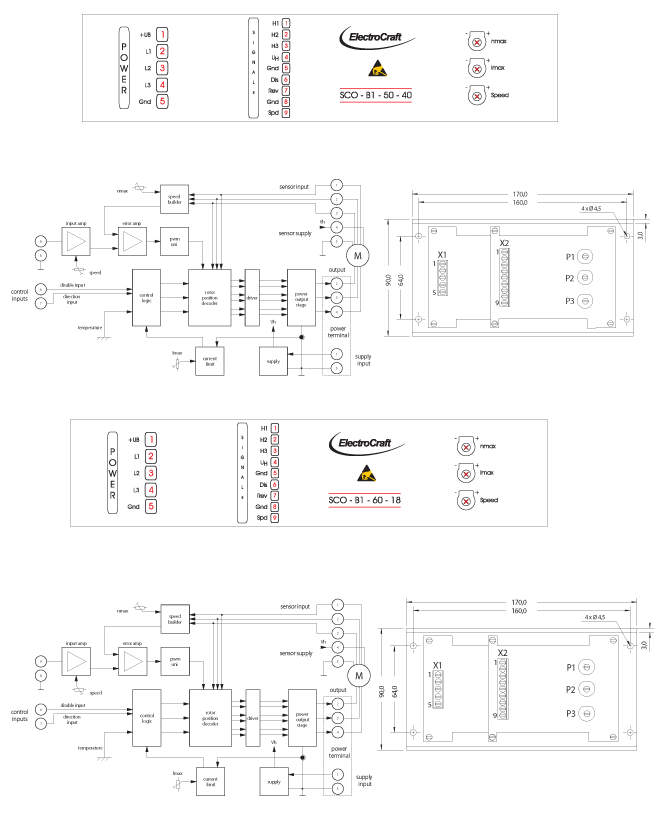

SCO-B1-50 (60) Technical Drawings


SCO-B1-50 (60) Specifications

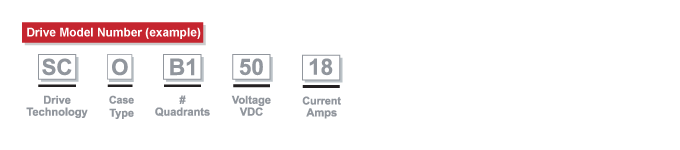

Model Numbers Power Supply Voltage
(VDC)
Aux Voltage
(VDC)
Continuous Current
(Amps)
Peak Current
(Amps)
Max Power
(Watts)
Frequency of
Power Output Stage
(kHz)
Efficiency
(%)
SCO-B1-50-18 20 - 50 - 18 - 900 with heatsink 20 95
SCO-B1-50-40 20 - 50 - 40 - 2000 with heatsink 20 95
SCO-B1-60-18 30 - 60 - 18 - 1080 with heatsink 20 95

Control Inputs
Hall input signals A, B, C TTL / +6 VDC
Set Value 0 to +5VDC
Disable Open Collector / TTL / CMOS / Switch
Dir Open Collector / TTL / CMOS / Switch
Outputs
Auxiliary Voltage Sources for Hall Sensors +6VDC / 20mA
Potentiometers
Function of Potentiometers Motor Speed / I max / Speed Max
Mechanical Specs
Dimensions (L x W x H) inches / (mm) 6.69 x 3.54 x 1.77 / (170) x (90) x (45)
Weight in ounces / (grams) SCO-B1-50-18: 13.4 (380)
SCO-B1-50-40: 14.11 (400)
SCO-B1-60-18: 13.4 (380)
Operating Temperature (°C) -10 to +45
Storage Temperature (°C) -40 to +85
Humidity Range Not Condensing (% rH) 20% to 80% Relative, Non-condensing
Operation Mode
Operation Mode Speed control by hall sensors

SCO-B1-50 (60) Accessories

Photo Model Number Description User Manual Technical Drawing
$photo IA310x Choke module optimized for brushless drives.
Inductance: IA3100 = 3x50uH; IA3101 = 3x100uH
Nominal current: 10A
Consult Factory Download PDF

SCO-B1-50 (60) User Manuals

Model Number User Manual
SCO - B1 - 50 - 18 Download PDF (Drive User Manual)
SCO - B1 - 50 - 40 Download PDF (Drive User Manual)
SCO - B1 - 60 - 18 Download PDF (Drive User Manual)
Developer ManualDownload PDF (User Manual)

SCO-B1-50 (60) Software Download

Software Type Overview
CompletePower Plus™ Setup Utility Software Description
ElectroCraft CompletePower™ Plus Set-up Utility is a Windows-based program used for the setup, parameterization, system diagnostics and motion control management of the ElectroCraft CompletePower Plus line of digital servo drives. The ElectroCraft CompletePower™ Plus Set-Up Utility will lead the user through a Step-by-Step Wizard to create the correct configuration information required for the user to run a particular motor with a particular drive. The result will be an "Application" file containing all of the information required to run the motor with the drive.

System Requirements
Computer ElectroCraft CompletePower™ Plus can be installed on any IBM™ PC compatible computer running:
• Windows 95/98
• Windows NT 4
• Windows 2000
• Windows XP

Display
A VGA display is required. A color monitor display makes it possible to take full advantage of ElectroCraft CompletePower™ Plus's graphic interface. The recommended screen resolution is 1024 x 728. A resolution of 800 x 600 will also function properly.

Printer
The ElectroCraft CompletePower™ Plus Set-up Utility uses the default printer installed on your computer. For optimal resolution, especially when printing graphs, use a high resolution (300-dpi) laser or ink jet printer.

Mouse
A mouse or other pointing device is required to use ElectroCraft CompletePower™ Plus Set-up Utility.

Serial I/O
The ElectroCraft CompletePower™ Plus Set-up Utility can be configured to use the PC's serial port for communication between the host PC and an ElectroCraft drive. A RS-232 serial cable is required between the host PC and the drive.
