SCA-SS-70 Drives
CompletePower™ Series

Summary Details

Technology: PMDC Servo
Quadrants: 4
Nominal Current: 10A or 30A

For Brush-Commutated PMDC Motors. Up to 2100 W.
This PWM four-quadrant PMDC servo amplifier is fully enclosed in a rugged aluminum case which can be panel mounted for easy integration. The drive can be configured in a variety of torque and speed control modes with the mode of operation being set by simple DIP switches. The drive handles continuous currents up to 30 Amps and provides a peak current of 60 Amps. The drive is protected against over-current, over-temperature, motor short-circuit and incorporates state of the art MOSFET technology for maximum efficiency. Connectivity is achieved with simple screw-terminals for control/feedback inputs, supply power and motor connections.

Additional Product Details

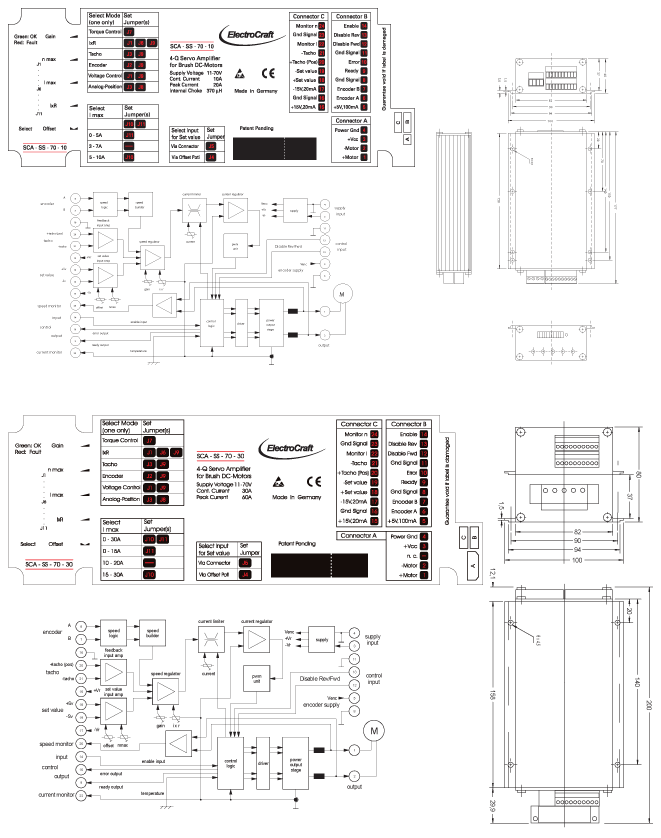

SCA-SS-70 Technical Drawings


SCA-SS-70 Specifications

Model Numbers Power Supply Voltage
Aux Voltage
Continuous Current
Peak Current
Max Power
Frequency of
Power Output Stage
SCA-SS-70-10 11 - 70 5 - 24 10 20 700 with heatsink 49 95
SCA-SS-70-30 11 - 70 5 - 24 30 60 1200 with heatsink 49 95

Control Inputs
Set Value -10 to +10 VDC
Encoder input signals channel A,B / TTL / max 100 kHz
Tach (VDC) ±50V
Enable 8 to 30
Fwd/Rev 8 to 30
Brake 8 to 30
Disable Rev 8 to 30
Disable Fwd 8 to 30
Auxillary Voltage Sources 5V/100mA
Auxillary Voltage Sources 15 VDC/20mA
Monitor I 0.25V/.16A
Monitor n 10VDC/nmax
Error open collector max 30VDC
LEDs green = power / red = fault
Function of Potentiometers offset / nmax / gain / IxR / Imax
Mechanical Specs

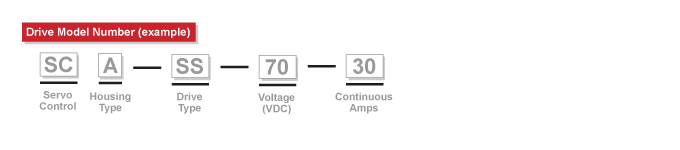

Dimensions (L x W x H) inches / (mm) SCA-SS-70-10: 7.09 x 3.94 x 1.57 / (180) x (100) x (40)
SCA-SS-70-30: 7.87 x 3.94 x 3.15 / (200) x (100) x (80)
Mounting Hole Distance (mm) 120 X 90
Weight in ounces / (grams) 4.23 (120)
Operating Temperature (°C) -10 to +45
Storage Temperature (°C) -40 to +85
Humidity Range Not Condensing (% rH) 20% to 80% Relative, Non-condensing
Operation Mode
Operation Mode speed-control by Voltage
speed-control by DC-tach
speed-control by encoder
torque control
analog positioning

SCA-SS-70 Accessories

Photo Model Number Description User Manual Technical Drawing
$photo ASO-BM-70-30 Breaking module in a rugged aluminum case. Consult Factory Download PDF
$photo ASX-RM-01-01 Aluminum DIN Rail Mounting Kit with L-shaped bracket for units:
- SCA-Lx
- SCA-Sx
- SCA-B4-70-10
- not used for SCA-SS-70-30
Consult Factory Download PDF
$photo IA210x Choke module optimized for brushless drives.
Inductance: IA2100 = 2x50uH; IA2101 = 2x100uH
Nominal current: 10A
Consult Factory Download PDF

SCA-SS-70 User Manuals

Model Number User Manual
SCA - SS - 70 - 10 Download PDF (Drive User Manual)
SCA - SS - 70 - 30 Download PDF (Drive User Manual)
Developer ManualDownload PDF (User Manual)

SCA-SS-70 Software Download

Software Type Overview
CompletePower Plus™ Setup Utility Software Description
ElectroCraft CompletePower™ Plus Set-up Utility is a Windows-based program used for the setup, parameterization, system diagnostics and motion control management of the ElectroCraft CompletePower Plus line of digital servo drives. The ElectroCraft CompletePower™ Plus Set-Up Utility will lead the user through a Step-by-Step Wizard to create the correct configuration information required for the user to run a particular motor with a particular drive. The result will be an "Application" file containing all of the information required to run the motor with the drive.
