SCA-S Drives
CompletePower™ Series

Summary Details
Technology: PMDC Servo AmplifierQuadrants: 4
Nominal Current: 6A
For Brush-Commutated PMDC Motors. Up to 150 W.
This PWM four-quadrant PMDC DC servo amplifier is fully enclosed in a rugged aluminum case which can be panel mounted for easy integration. The drive is available in several configurations depending on your control requirements. The drive handles continuous currents up to 6 Amps and is protected against over-current, over-temperature and motor short-circuit.

Additional Product Details

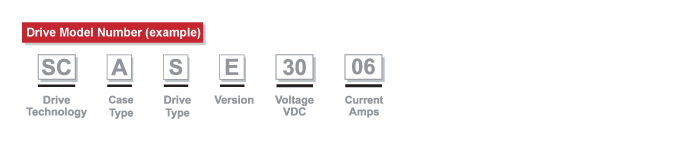

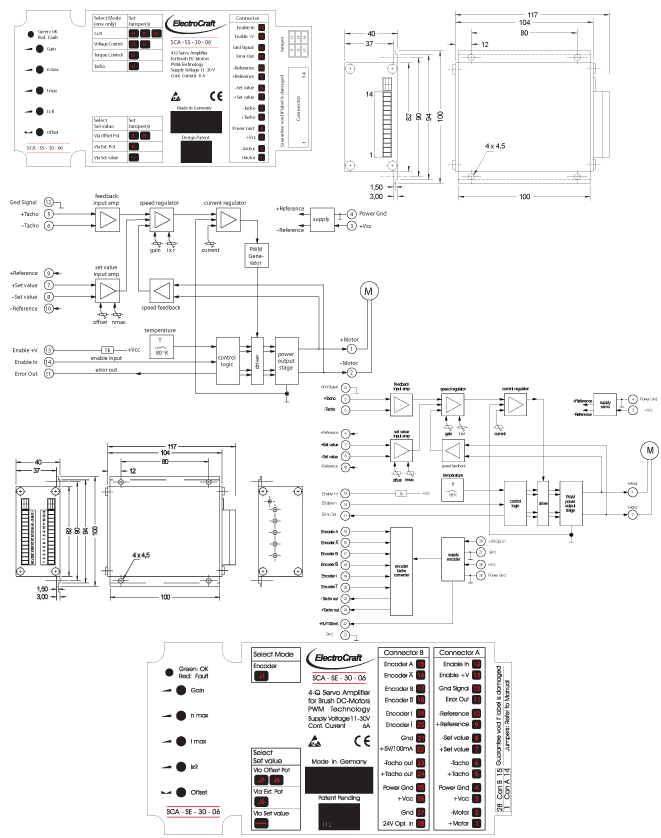

SCA-S Technical Drawings

SCA-S Specifications
Model Numbers | Power Supply Voltage (VDC) |
Aux Voltage (VDC) |
Continuous Current (Amps) |
Peak Current (Amps) |
Max Power (Watts) |
Frequency of Power Output Stage (kHz) |
Efficiency (%) |
---|---|---|---|---|---|---|---|
SCA-SE-30-06 | 11 - 30 | - | 6 | - | 150 with heatsink | - | 95 |
SCA-SS-30-06 | 11 - 30 | - | 6 | - | 150 with heatsink | - | 95 |
Control Inputs | |
---|---|
Set Value | ±10 VDC |
Encoder input signals | Channels (A, /A, B, /B, I, /I) / TTL / +5 to +24 VDC |
Dir | +8 to +30 VDC |
Features Selected by Dip Switches | |
Set Value | External / Internal |
Tachometer | On / Off |
Voltage | On / Off |
I x R Comp | On / Off |
Torque Mode | On / Off |
Encoder | On / Off [SCA-SE only] |
Encoder Frequency | On / Off [SCA-SE only] |
Outputs | |
Auxillary Voltage Sources | ±.39 VDC / 20 mA |
Auxillary Voltage Sources For Encoder | +5 VDC / 100 mA [SCA-LE only] |
Monitor I | 0.75 Volts / A |
Monitor n | 10V at max speed |
Fault | Open Collector / Max. +30 VDC / 20 mA |
Display | |
LEDs | Green = OK / Red = Fault |
Potentiometers | |
Function of Potentiometers | Gain / Speed max / I max / IxR Comp / Offset |
Mechanical Specs | |
Dimensions (L x W x H) inches / (mm) | 4.76 x 3.94 x 1.57 / (121) x (100) x (40) |
Weight in ounces / (grams) | SCA-SE-30-03: 13.76 (390) SCA-SS-30-03: 12.00 (340) |
Operating Temperature (°C) | -10 to +45 |
Storage Temperature (°C) | -40 to +85 |
Humidity Range Not Condensing (% rH) | 20% to 80% Relative, Non-condensing |
Operation Mode | |
Operation Mode | SCA-SE-30-03: Speed control by encoder SCA-SS-30-03: Torque control IxR Comp Speed control by Tachometer Speed control by voltage |
SCA-S Accessories
Photo | Model | Description | User | Technical |
---|---|---|---|---|
![]() | ASO-BM-70-30 | Breaking module in a rugged aluminum case. | Consult | Download |
![]() | ASX-RM-01-01 | Aluminum DIN Rail Mounting Kit with L-shaped bracket for units: - SCA-Lx - SCA-Sx - SCA-B4-70-10 - not used for SCA-SS-70-30 | Consult | Download |
![]() | IA210x | Choke module optimized for brushless drives. Inductance: IA2100 = 2x50uH; IA2101 = 2x100uH Nominal current: 10A | Consult | Download |
SCA-S User Manuals
Model Number | User Manual |
---|---|
SCA - SE - 30 - 06 | Download PDF (Drive User Manual) |
SCA - SS - 30 - 06 | Download PDF (Drive User Manual) |
Developer Manual | Download PDF (User Manual) |
SCA-S Software Download
Software Type | Overview |
---|---|
CompletePower Plus™ Setup Utility Software | Description ElectroCraft CompletePower™ Plus Set-up Utility is a Windows-based program used for the setup, parameterization, system diagnostics and motion control management of the ElectroCraft CompletePower Plus line of digital servo drives. The ElectroCraft CompletePower™ Plus Set-Up Utility will lead the user through a Step-by-Step Wizard to create the correct configuration information required for the user to run a particular motor with a particular drive. The result will be an "Application" file containing all of the information required to run the motor with the drive. System Requirements Computer ElectroCraft CompletePower™ Plus can be installed on any IBM™ PC compatible computer running: • Windows 95/98 • Windows NT 4 • Windows 2000 • Windows XP Display A VGA display is required. A color monitor display makes it possible to take full advantage of ElectroCraft CompletePower™ Plus's graphic interface. The recommended screen resolution is 1024 x 728. A resolution of 800 x 600 will also function properly. Printer The ElectroCraft CompletePower™ Plus Set-up Utility uses the default printer installed on your computer. For optimal resolution, especially when printing graphs, use a high resolution (300-dpi) laser or ink jet printer. Mouse A mouse or other pointing device is required to use ElectroCraft CompletePower™ Plus Set-up Utility. Serial I/O The ElectroCraft CompletePower™ Plus Set-up Utility can be configured to use the PC's serial port for communication between the host PC and an ElectroCraft drive. A RS-232 serial cable is required between the host PC and the drive. Download Disclaimer Software download and registration require Internet Explorer 7 and above, Firefox 3, or Safari. Download Disclaimer Software download and registration require Internet Explorer 7 and above, Firefox 3, or Safari. |
