PFC3000 Drives
CompletePower™ Series

Summary Details

Technology: Power Factor Correction
Nominal Power: 2.4 kW

Power Correction for High Power Applications
Power Factor Correction (PFC) is required in any motion control application demanding optimum utilization of available line currents and/or minimum line current distortion. An ElectroCraft PFC3000 module can give the system more power without increasing line capacity and offers reliable operation while reducing peak AC current input needs. The ElectroCraft module attenuates AC line harmonics induced by switching power amplifiers and prevents overloading of neutral conductors and transformers.

Additional Product Details

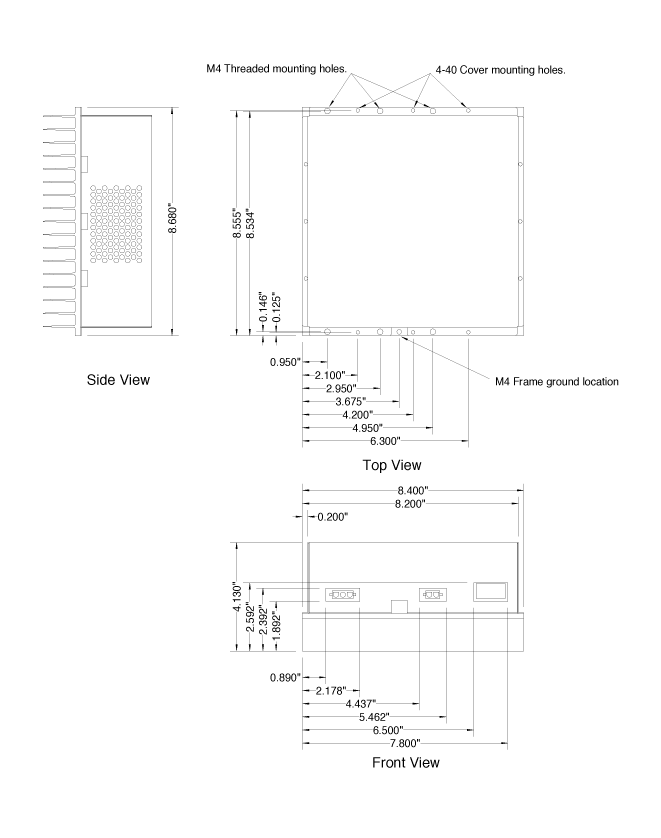

PFC3000 Technical Drawings


PFC3000 Specifications

Model Numbers Input Voltage
(VAC)
Output Voltage
(VDC)
Logic Supply Voltage
(VDC)
Continuous Current
(Amps)
Peak Current
(Amps)
Max Power
(kW)
PFC3001-400-1012 185-240 / 1 ф 395-420 (Regulated) - 4 6 3500

Performance
Power Factor > .99 at full load
Efficiency 100 Watts loss at full load
Fault Conditions
Fault Conditions Heatsink Over Temperature
Loss of Regulation
Loss of Logic Power
Over / Under Voltage
Communications
Communications I2C
Mechanical Specs
Dimensions (L x W x H) inches / (mm) 11.1 x 8.40 x 4.13 / (282) x (213) x (105)
Weight in ounces / (grams) 121 (3429)
Operating Temperature (°C) 0 to 50
Storage Temperature (°C) -40 to +85
Humidity Range Not Condensing (% rH) 5% to 95% Relative, Non-condensing
Regulatory Compliance
Safety EN60950 / UL1950 / CSA22.2.14
Power Harmonics EN61000-3-2
Operation Mode
Operation Mode Speed control by Hall sensors
Speed control by Encoder
PWM
Position

PFC3000 Accessories


No accessories available.

PFC3000 User Manuals

Model Number User Manual
PFC3001 - 400 - 1012 Download PDF (Drive User Manual)
Developer ManualDownload PDF (User Manual)

PFC3000 Software Download

Software Type Overview
CompletePower Plus™ Setup Utility Software Description
ElectroCraft CompletePower™ Plus Set-up Utility is a Windows-based program used for the setup, parameterization, system diagnostics and motion control management of the ElectroCraft CompletePower Plus line of digital servo drives. The ElectroCraft CompletePower™ Plus Set-Up Utility will lead the user through a Step-by-Step Wizard to create the correct configuration information required for the user to run a particular motor with a particular drive. The result will be an "Application" file containing all of the information required to run the motor with the drive.

System Requirements
Computer ElectroCraft CompletePower™ Plus can be installed on any IBM™ PC compatible computer running:
• Windows 95/98
• Windows NT 4
• Windows 2000
• Windows XP

Display
A VGA display is required. A color monitor display makes it possible to take full advantage of ElectroCraft CompletePower™ Plus's graphic interface. The recommended screen resolution is 1024 x 728. A resolution of 800 x 600 will also function properly.

Printer
The ElectroCraft CompletePower™ Plus Set-up Utility uses the default printer installed on your computer. For optimal resolution, especially when printing graphs, use a high resolution (300-dpi) laser or ink jet printer.

Mouse
A mouse or other pointing device is required to use ElectroCraft CompletePower™ Plus Set-up Utility.

Serial I/O
The ElectroCraft CompletePower™ Plus Set-up Utility can be configured to use the PC's serial port for communication between the host PC and an ElectroCraft drive. A RS-232 serial cable is required between the host PC and the drive.
