DA47 Drives
CompletePower™ Series
Summary Details
Technology: PMDC Servo-PWMQuadrants: 4
Nominal Current: 9A and 18A
For Brush-Commutated PMDC Motors. Up to 1260 W.
This servo-amplifier is built into a fully enclosed rugged aluminum case. Mode of operation is set by simple DIP switches. This drive handles a wide range of power supply voltages (from 11 to 70VDC) for a variety of power input requirements. Inputs include current limit, set value input, enable, tach and a ramp function. The drive handles continuous currents up to 9 and 18A. The pulse-width modulated power stage utilizes 95% efficient MOSFET-technology and is protected against over-current and over-temperature.
Additional Product Details

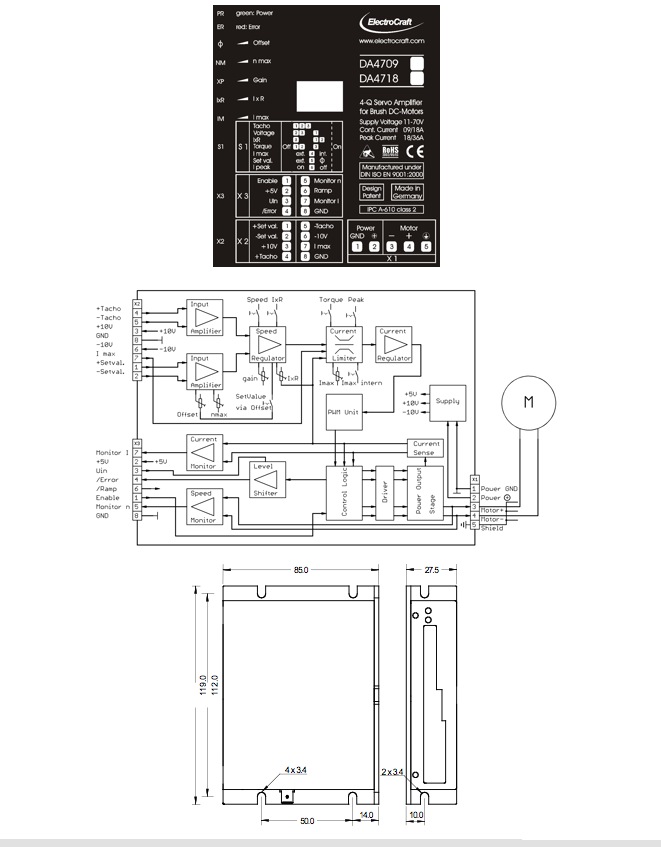

DA47 Technical Drawings
DA47 Specifications
| Model Numbers | Power Supply Voltage (VDC) | Aux Voltage (VDC) | Continuous Current (Amps) | Peak Current (Amps) | Max Power (Watts) | Frequency of Power Output Stage (kHz) | Efficiency (%) |
|---|---|---|---|---|---|---|---|
| DA4709 | 11 - 70 | 5 - 24 | 9 | 18 | 630 with heatsink | 50 | 95 |
| DA4718 | 11 - 70 | 5 - 24 | 18 | 36 | 1260 with heatsink | 50 | 95 |
| Control Inputs | |
|---|---|
| Set Value | -10 to +10 VDC |
| Tach (VDC) | ±10V |
| Enable | TTL / +24 VDC |
| Ramp | TTL / +24 VDC |
| Imax (VDC) | 0 to 10 |
| Features Selected by Dip Switches | |
| Vmode, IxR-mode, I-mode | Not set/set |
| Imax | ext / int |
| Set value via Offset | offset/ext |
| Ipeak | on/off |
| Outputs | |
| Auxillary Voltage Sources | 5V/50mA |
| Auxillary Voltage Sources | 10 VDC/20mA |
| Monitor I | 0.5V/1A |
| Monitor n | .1V/1Vmotor |
| Error | open collector / push pull / TTL / 24V |
| Display | |
| LEDs | green = power / red = error |
| Potentiometers | |
| Function of Potentiometers | offset / nmax / gain / IxR / Imax |
| Mechanical Specs | |
| Dimensions (L x W x H) inches / (mm) | (119) X (85) X (27.5) |
| Mounting Hole Distance (mm) | 112 X 50 |
| Weight in ounces / (grams) | (220) |
| Operating Temperature (°C) | -10 to +45 |
| Storage Temperature (°C) | -40 to +85 |
| Humidity Range Not Condensing (% rH) | 20% to 80% Relative, Non-condensing |
| Operation Mode | |
| Operation Mode | speed-control by Voltage speed-control by DC-tach torque control IxR-compensation |
