ACE500 Drives
CompletePower™ Plus Series

Summary Details

Technology: Brushless Drive, Digital Servo
Quadrants: 4
Nominal Current: 5A

High Voltage, Small Package ... World Class Intelligence
The line powered ACE500 is the newest addition to the ElectroCraft "Plus" series of all digital servo-amplifiers designed to provide today's OEM with maximum brushless servo performance at the lowest possible cost. The ACE500 series utilizes the latest in DSP-based drive design architecture to provide software selectable torque, velocity, and position mode (Step & Direction) operation. Sine wave commutation using encoder feedback provides smooth torque at low speeds for demanding motion control requirements found in robotic, direct drive, and linear motor applications. Sine wave commutation is also available on motors operating with only hall commutation feedback, providing smooth performance over the entire speed and torque range.

Additional Product Details

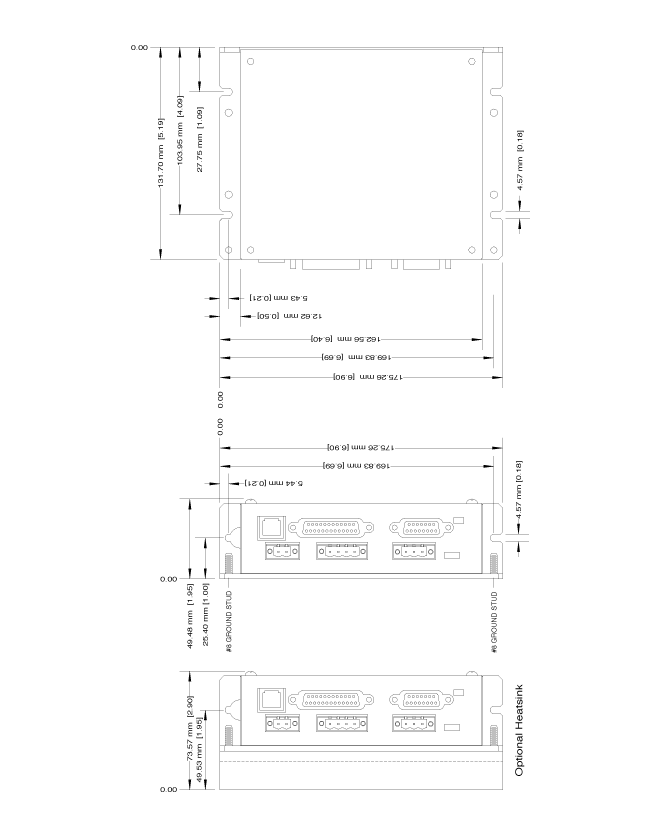

ACE500 Technical Drawings


ACE500 Specifications

Model Numbers Motor Supply Voltage
(VAC)
Logic Supply Voltage
(VDC)
Continuous Current
(Amps)
Peak Current
(Amps)
Max Power
(Watts)
Frequency of
Power Output Stage
(kHz)
ACE500-010-0000 90-254 / 1 ф +5 VDC (user supplied) 5 11 1625 without heatsink 30

Control Inputs
Hall input signals A, B, C TTL / +5 VDC
Encoder input signals Differential / TTL / +5 VDC / 2MHz
Velocity / Torque Reference (Command) Differential / ±10 VDC
Aux Analog Input Differential / ±10 VDC
Step and Direction TTL / +5 VDC
Enable / Reset TTL / +5 VDC
Run / Standby TTL / +5 VDC
Dynamic Break TTL / +5 VDC
Outputs
Auxiliary Voltage Sources for Hall Sensors +6VDC / 20mA
Interface Power +5 VDC / 250 mA
Enabled TTL / +5 VDC
Ready / Fault TTL / +5 VDC
Performance
Current Loop 10 bit / Digitally adjustable up to 5 kHz
Velocity PID Loop 32 bit / Digitally adjustable up to 10 kHz
Position PID Loop 32 bit / Digitally adjustable up to 10 kHz
Display
LEDs Power-Motor LED: Green - On / Off
Power-Logic LED: Green - On / Off
Shunt Status LED: Yellow - On / Off
Current Limit LED: Red - On / Off
Status / Fault LED: Yellow - Flash Code Sequence
Communications
Serial RS232
ElectroCraft CompletePower™ Plus Windows® Set-up Utility
Mechanical Specs
Dimensions (L x W x H) inches / (mm) 6.9 x 5.2 x 1.945 / (175) x (132) x (50)
Weight in ounces / (grams) 30 (862)
Operating Temperature (°C) 0 to 50
Storage Temperature (°C) -40 to +85
Humidity Range Not Condensing (% rH) 5% to 95% Relative, Non-condensing
Regulatory Compliance
CE Low Voltage Directive / RoHS
Safety EN60950 / UL1950 / CSA22.2.14
Operation Mode
Operation Mode Speed control by Hall sensors
Speed control by Encoder
Step and Direction
PWM
Position

ACE500 Accessories

Photo Model Number Description User Manual Technical Drawing
$photo 1002995 ACE Quick Start I/O Kit for ACE500 including:
- Quick Start I/O Board
- Quick Start I/O to Drive Harness
- RS232 Interface Cable
Download PDF Download PDF
$photo 1001502 ACE External Shunt Kit (300W, 50 Ohms) for ACE500, ACE1200 and ACE1300 drives. Download PDF Download PDF

ACE500 User Manuals

Model Number User Manual
ACE500 - 010 - 0000 Download PDF (Drive User Manual)
Parameter Manual for ACS & ACE DrivesDownload PDF (Parameter User Manual)
Software Manual for ACS & ACE DrivesDownload PDF (Software User Manual)
Developer ManualDownload PDF (User Manual)

ACE500 Software Download

Software Type Overview
CompletePower Plus™ Setup Utility Software Description
ElectroCraft CompletePower™ Plus Set-up Utility is a Windows-based program used for the setup, parameterization, system diagnostics and motion control management of the ElectroCraft CompletePower Plus line of digital servo drives. The ElectroCraft CompletePower™ Plus Set-Up Utility will lead the user through a Step-by-Step Wizard to create the correct configuration information required for the user to run a particular motor with a particular drive. The result will be an "Application" file containing all of the information required to run the motor with the drive.

System Requirements
Computer ElectroCraft CompletePower™ Plus can be installed on any IBM™ PC compatible computer running:
• Windows 95/98
• Windows NT 4
• Windows 2000
• Windows XP

Display
A VGA display is required. A color monitor display makes it possible to take full advantage of ElectroCraft CompletePower™ Plus's graphic interface. The recommended screen resolution is 1024 x 728. A resolution of 800 x 600 will also function properly.

Printer
The ElectroCraft CompletePower™ Plus Set-up Utility uses the default printer installed on your computer. For optimal resolution, especially when printing graphs, use a high resolution (300-dpi) laser or ink jet printer.

Mouse
A mouse or other pointing device is required to use ElectroCraft CompletePower™ Plus Set-up Utility.

Serial I/O
The ElectroCraft CompletePower™ Plus Set-up Utility can be configured to use the PC's serial port for communication between the host PC and an ElectroCraft drive. A RS-232 serial cable is required between the host PC and the drive.
