APPD15 : AxialPower™ Plus PMDC Type Linear Actuator

Technology: PMDC
Size: 1.5 inches or 3.8 cm
Torque: to 15 oz-in or 10.6 Ncm



Simple. Forceful.
This 1.5-in PMDC linear actuator is one of ElectroCraft’s innovative permanent magnet DC motor designs available in both a linear actuator with axial leadscrew or a leadscrew motor with rotating leadscrew. This DC motor does not require expensive motor drives. Performance is proportional to input voltage and can be tuned by regulating input voltage.

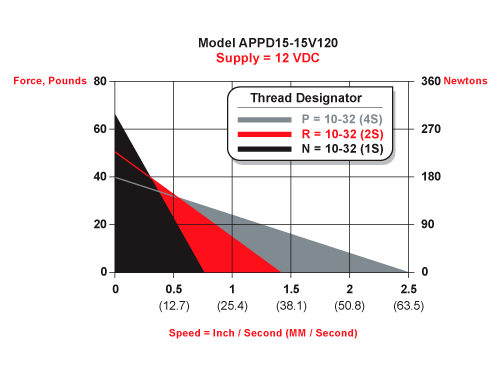

APPD15 Speed / Force Curves


APPD15 Mechanical / Winding Data

Stack Size Models APPD15 - 15V
Holding Torque
Bi-Polar
(oz-in)		 15.0
Holding Torque Bi-Polar
(Ncm)		 10.59
Holding Torque
Uni-Polar
(oz-in)		 0.0
Holding Torque Uni-Polar
(Ncm)		 0.00
Length
(inches)		 4.0
Length
(cm)		 10.2
Width
(inches)		 2.7
Width
(cm)		 6.9
Weight
(oz)		 0.0
Weight
(Kg)		 0.0
Step Angle
(°/step)		 0.0
Number Leads 2

APPD15 Bi-Polar Windings
Winding Models APPD15 - 15V120
Current
(A/Phase)		 0.0
Voltage
(V/Phase)		 12.0
Resistance
(R/Phase)		 0.0
Inductance
(mH)		 0.0

APPD15 Outline Drawing


APPD15 Leadscrew Options

Thread
Designation		 Thread
Description
(# starts)		 Max Travel
Speed
(in/sec)		 Max Force
Output
(lbf)		 Max Current
Draw
N 10-32UNF-2A 0.8 65.0 4.2
P 10-32UN-(4 Start) 3.0 40.0 4.2
R 10-32UN-(2 Start) 1.6 50.0 4.2
