APPS11 : AxialPower™ Plus Linear Actuator
Nema 11 Step, to 13.7 oz-in

Stack Size Models	APPS11-10A	APPS11-14A	APPS11-10V	APPS11-14V
Holding Torque Bi-Polar (oz-in)	9.5	13.7	9.5	13.7
Holding Torque Bi-Polar (Ncm)	6.71	9.67	6.71	9.67
Holding Torque Uni-Polar (oz-in)	0.0	0.0	6.6	9.6
Holding Torque Uni-Polar (Ncm)	0.00	0.00	4.66	6.78
Length (inches)	1.2	1.6	1.2	1.6
Length (cm)	3.0	4.1	3.0	4.1
Width (inches)	1.1	1.1	1.1	1.1
Width (cm)	2.8	2.8	2.8	2.8
Weight (oz)	4.0	5.1	4.0	5.1
Weight (Kg)	0.1	0.1	0.1	0.1
Step Angle (°/step)	1.8	1.8	1.8	1.8
Number Leads	4	4	6	6

APPS11 Bi-Polar Windings
Winding Models	APPS11-10A05-1	APPS11-14A05-1	APPS11-10A10-1	APPS11-14A10-1	APPS11-10A15-1	APPS11-14A15-1
Current (A/Phase)	0.5	0.5	1.0	1.0	1.5	1.5
Voltage (V/Phase)	5.0	6.2	2.5	3.1	1.7	2.1
Resistance (R/Phase)	10.0	12.4	2.5	3.1	1.1	1.4
Inductance (mH)	6.8	9.1	1.5	2.7	0.7	1.0

APPS11Uni-Polar Windings
Winding Models	APPS11-10V14-1	APPS11-14V17-1	APPS11-10V27-1	APPS11-14V33-1
Current Bi-Polar (A/Phase)	1.3	1.3	0.7	0.7
Voltage Bi-Polar (V/Phase)	2.0	2.4	3.7	4.6
Resistance Bi-Polar (R/Phase)	1.5	1.8	5.6	6.8
Inductance Bi-Polar (mH)	0.9	1.5	4.0	5.8
Current Uni-Polar (A/Phase)	1.8	1.8	0.9	0.9
Voltage Uni-Polar (V/Phase)	1.4	1.7	2.6	3.3
Resistance Uni-Polar (R/Phase)	0.7	0.9	2.8	3.4
Inductance Uni-Polar (mH)	0.2	0.4	1.0	1.5

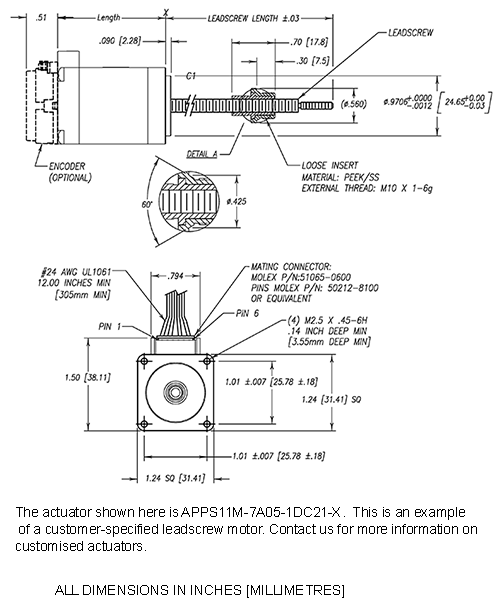

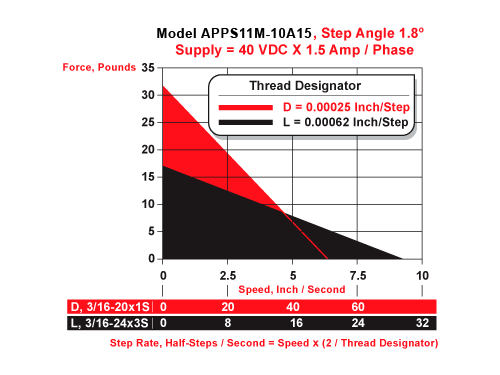

Thread Designation	Thread Description (# starts)	Thread Lead (inches)	Linear Travel per step (inches)
D	3/16-20ACME(1)	0.05000	0.00025000
L	3/16-24ACME(3)	0.12500	0.00063000
M	3/16-28ACME(8)	0.33300	0.00167000
