Planetary Gearboxes


Planetary Gearboxes are used on high precision motion control applications that require a high torque, high torsional stiffness and low backlash. Ideal for motors whose optimal efficiency is at higher speeds.

PGRSS

Planetary Gear Reducers are divided into 4 main models:

  • High Precision: DM series (backlash between 5~8 arc min)
  • All-Purpose: DH series (backlash between 10~12 arc min)
  • All-Purpose: DL series (backlash between 10~12 arc min)
  • High Thermal Dissipation: DS series (backlash between 5~8 arc min)

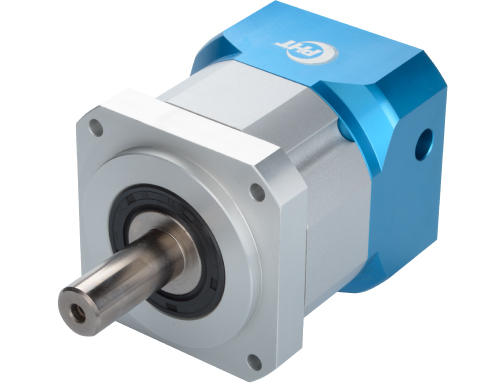

  • DM series (High Precision - Thread Hole)

    DM090SS
    • Backlash 5~8 arc min
    • Noise 64-65 dB
    • Life Time 20,000 hrs
    • Sizes 42, 60, 70, 90, 120, 150, 180, 220
    DATASHEET

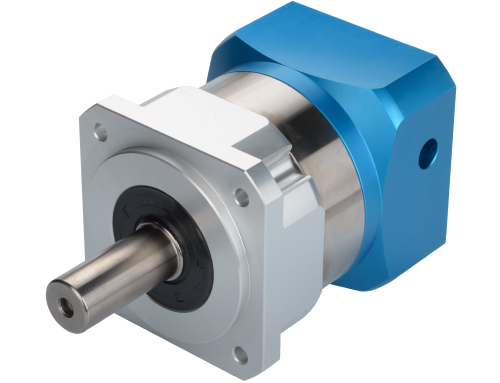

  • DH series (All Purpose)

    DH090SS
    • Backlash 10~12 arc min
    • Noise 64-65 dB
    • Life Time 20,000 hrs
    • Sizes 42, 60, 80, 90, 120, 150
    DATASHEET

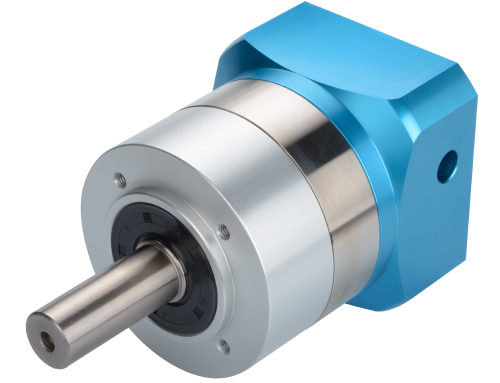

  • DL series (All Purpose)

    DL090SS
    • Backlash 10~12 arc min
    • Noise 64-65 dB
    • Life Time 20,000 hrs
    • Sizes 60, 90, 120, 150
    DATASHEET

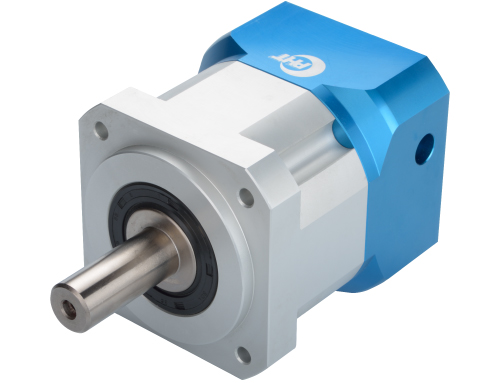

  • DS series (High Thermal Dissipation)

    DS
    • Backlash 5~8 arc min
    • Noise 64-65 dB
    • Life Time 20,000 hrs
    • Sizes 60, 70, 90, 120, 150, 180, 220
    DATASHEET

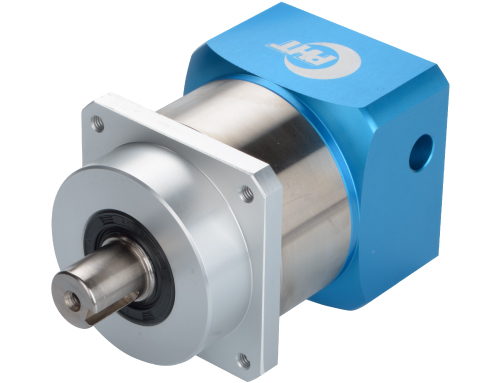

  • DN series (High Load Capacity - Through Hole)

    DS
    • Backlash 10~12 arc min
    • Noise 64-65 dB
    • Life Time 20,000 hrs
    • Sizes 60, 80, 100
    DATASHEET

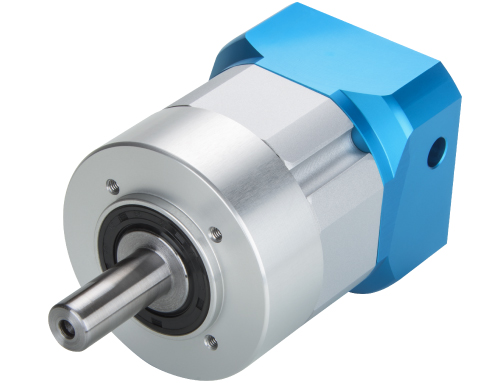

  • DML series (High Precision - Through Hole)

    DS
    • Backlash 5~8 arc min
    • Noise 64-65 dB
    • Life Time 20,000 hrs
    • Sizes 42, 60, 90, 120, 150, 180, 220
    DATASHEET

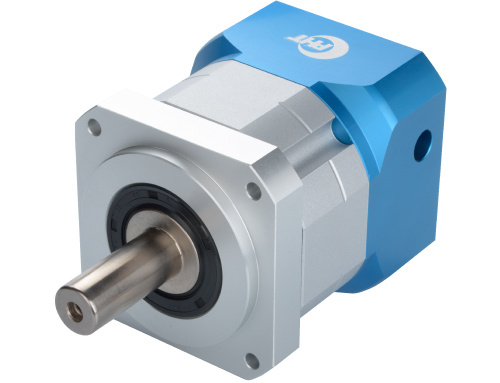

  • DA series (Very High Precision)

    DS
    • Backlash 1~7 arc min
    • Noise 64-65 dB
    • Life Time 20,000 hrs
    • Sizes 60, 90, 120
    DATASHEET
